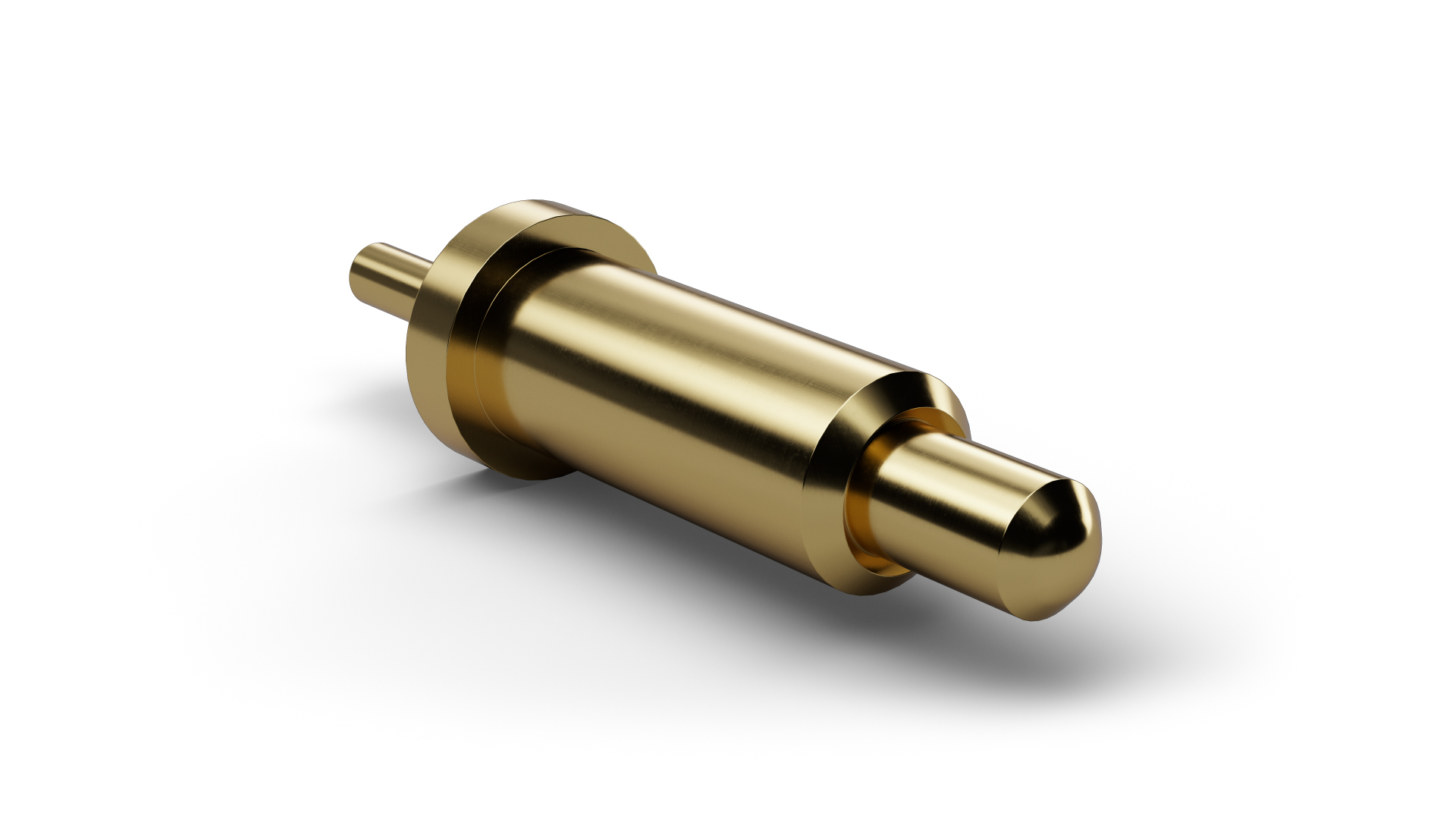

The Pogo Connector P15011B090G065BL077WR (item number 1026888) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P15011B090G065BL077WR is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P15011B090G065BL077WR is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 2.54 mm / 100 mil, spring force is 65 cN at a nominal travel of 1.2 mm. P15011B090G065BL077WR is rated for 5 A continuous current with a typical contact resistance of 100 mΩ. On P15011B090G065BL077WR, tip style 11 (Spherical) has a diameter of 0.9 mm.
