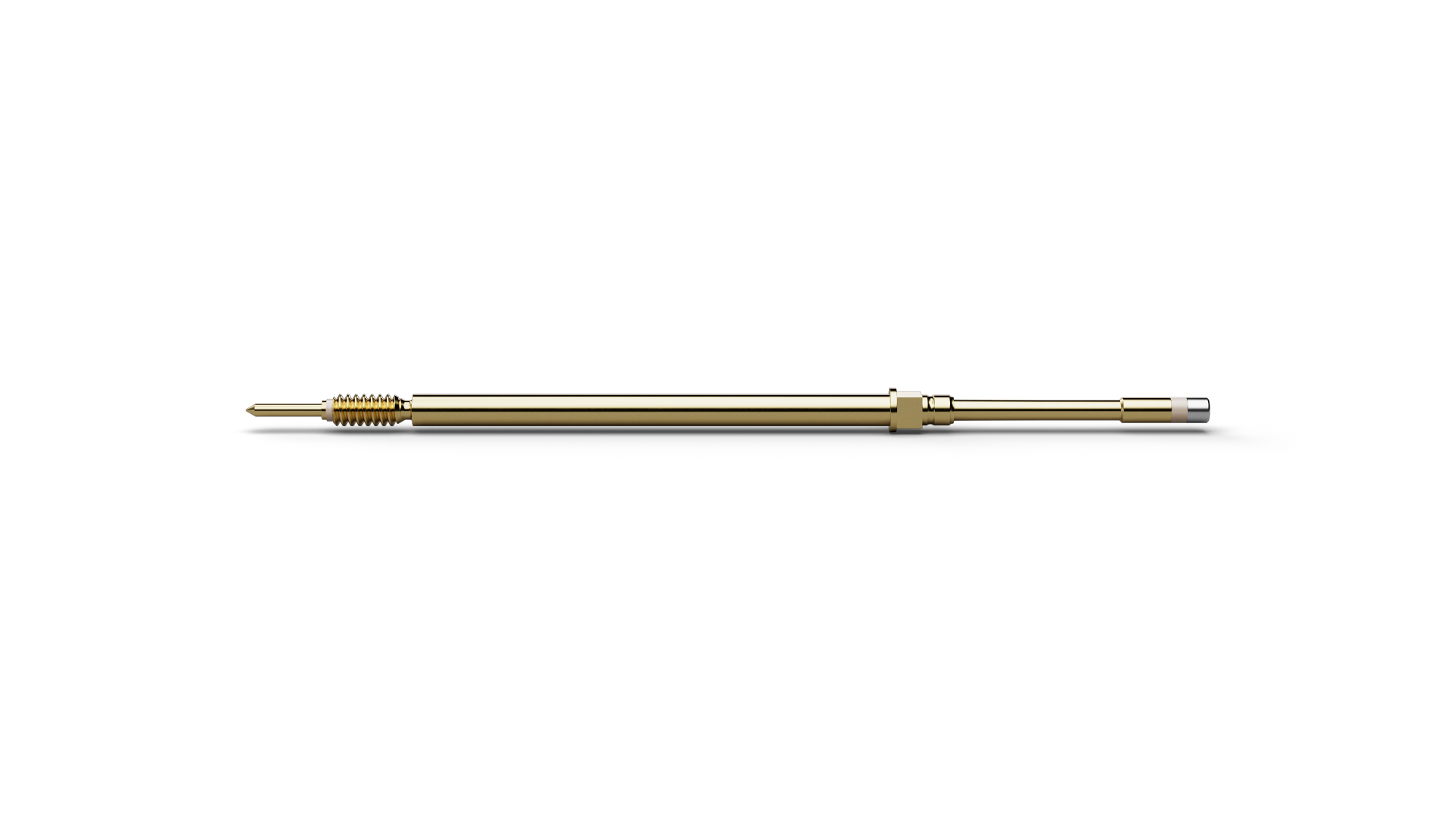

The Normally Open Switch Probe F86317T080N080 (item number 1029314) combines spring-loaded contacting with a defined switching or sensing function. F86317T080N080 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F86317T080N080, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F86317T080N080, spring force is 80 cN at a nominal travel of 4 mm. F86317T080N080 is rated for 2 A continuous current with a typical contact resistance of 65 mΩ. F86317T080N080 combines a pitch of 1.9 mm / 75 mil with tip style 17T (Metal head insulated with slot) and a tip diameter of 0.8 mm.
