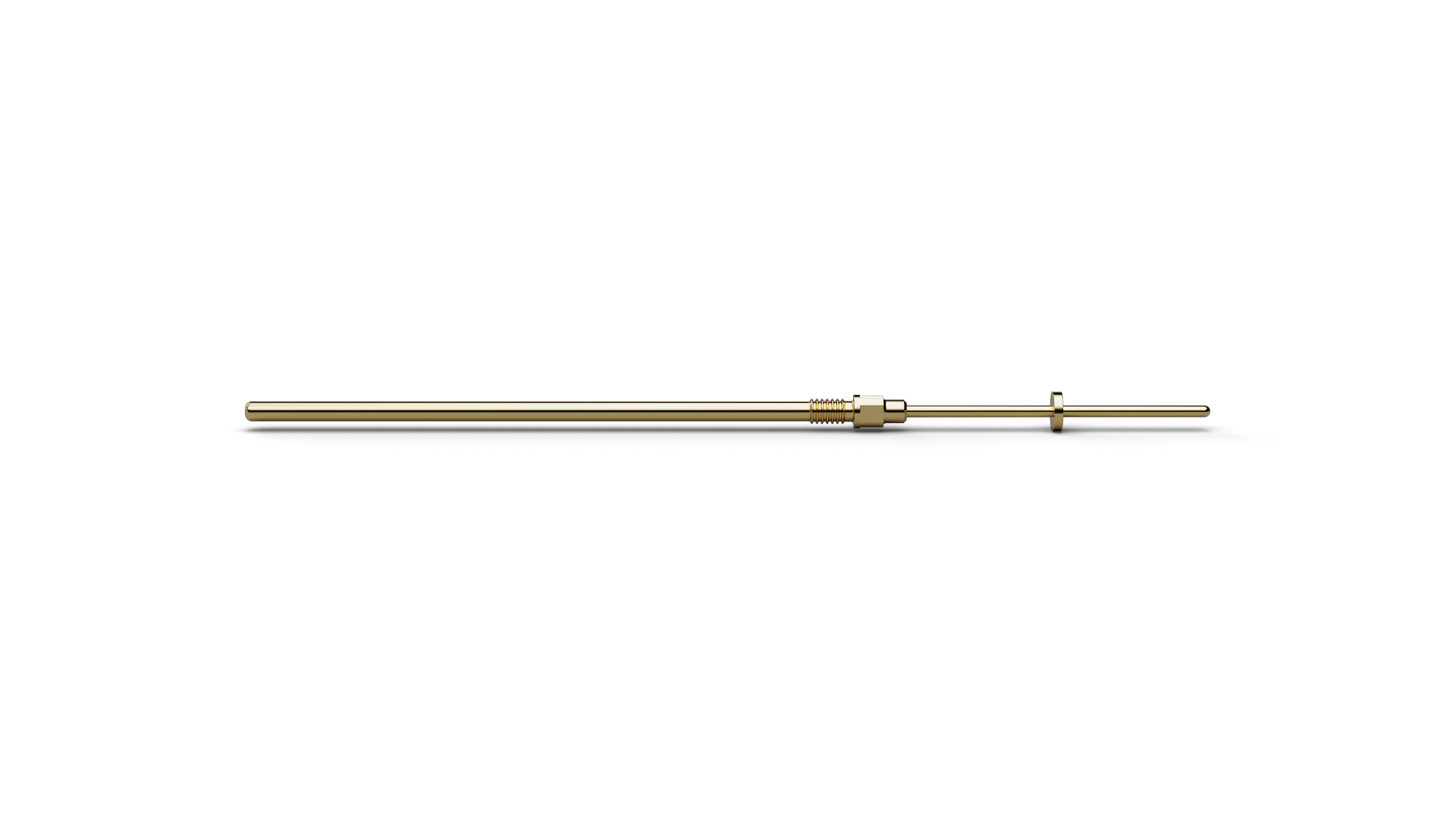

For contact points inside housings and recesses, F73011B0016G110SP (item number 1029612) uses a flat plate head at a defined penetration depth. On F73011B0016G110SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. On F73011B0016G110SP, contact geometry is characterized by pin diameter 0.4 mm, plate diameter 1.35 mm, pin length 5.1 mm. On F73011B0016G110SP, a pitch of 1.27 mm / 50 mil is combined with 110 cN spring force and 4 mm nominal travel. F73011B0016G110SP is specified for 3 A continuous current. The plunger in F73011B0016G110SP is made of beryllium copper and is gold-plated.
