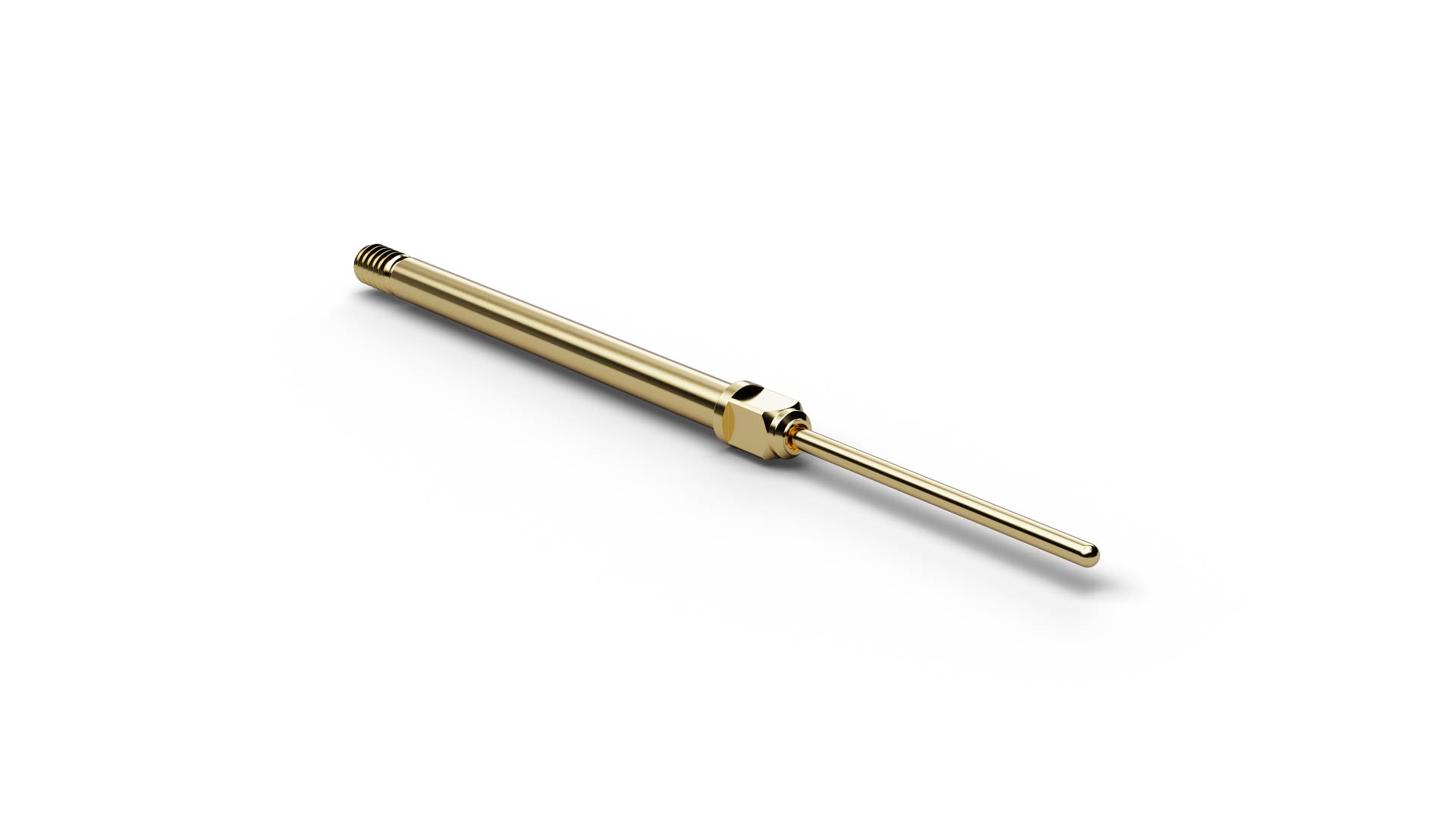

As a Basic Threaded Probe, F73111B060G100E13 (item number 1031590) combines defined spring force with robust threaded mounting. The threaded mounting of F73111B060G100E13 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73111B060G100E13 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73111B060G100E13 is installed using a M1.4 thread. F73111B060G100E13 combines a pitch of 2.4 mm / 94 mil with tip style 11 (Spherical) and a tip diameter of 0.6 mm. F73111B060G100E13 operates with 100 cN spring force and 3.5 mm nominal travel.
