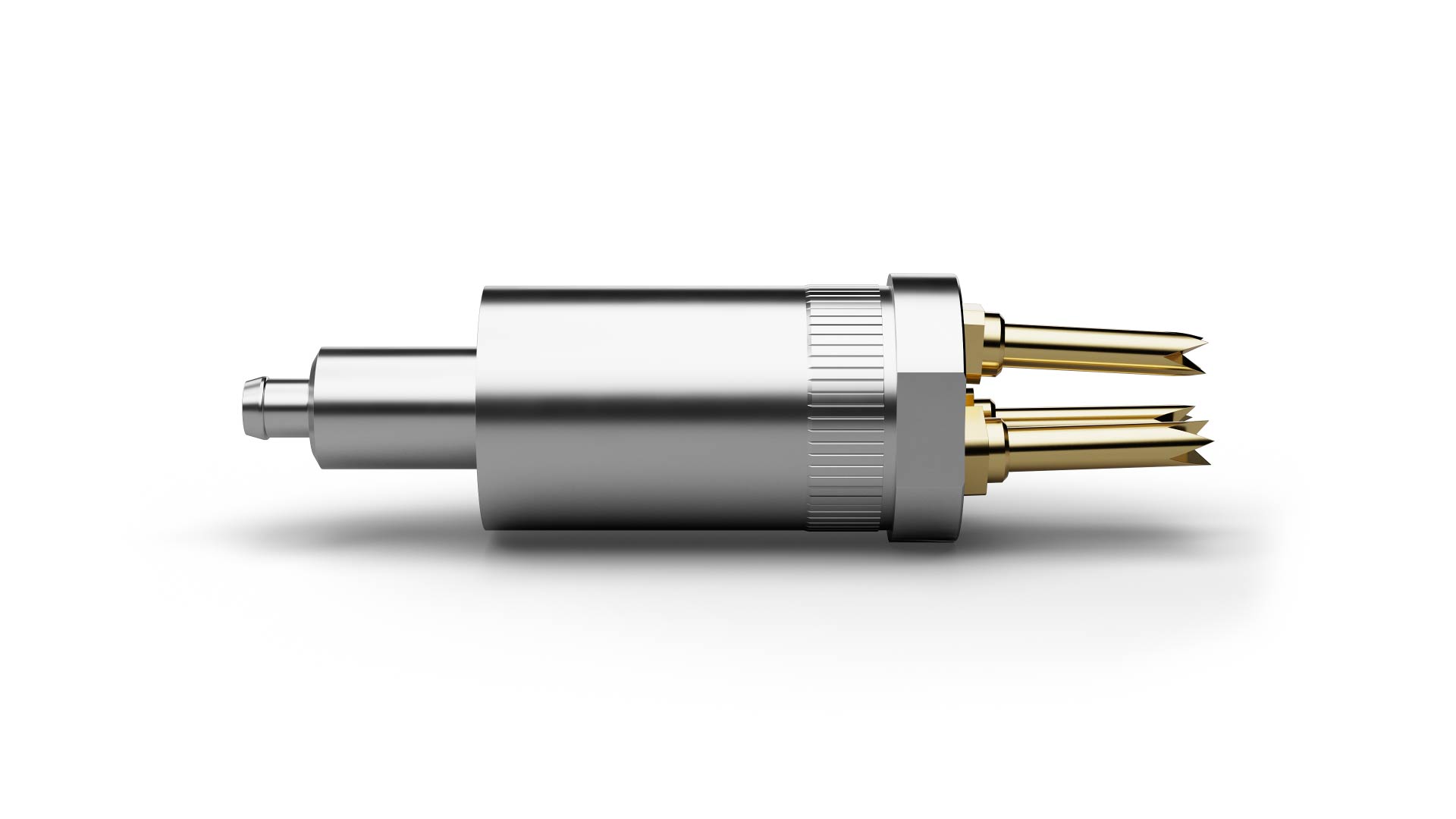

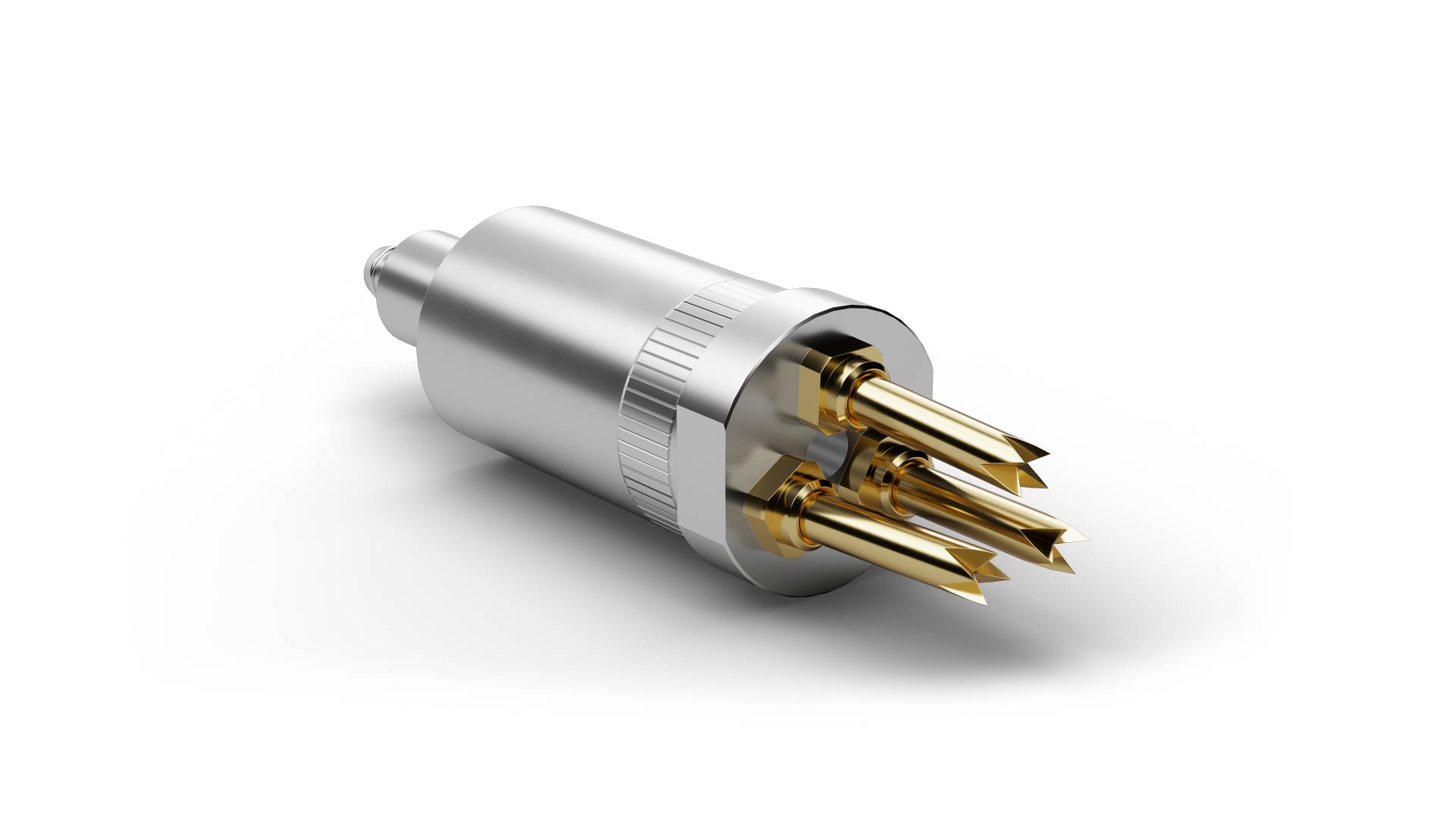

The High Current Block HCB063A29MS18C (item number 1033703) is a connection element for test setups carrying high electrical currents. HCB063A29MS18C focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB063A29MS18C, the block design integrates robust current contacting into a defined interface; current rating, contact resistance and thermal conditions are central to fixture design. The intended application area for HCB063A29MS18C includes battery contacting. The continuous-current rating of HCB063A29MS18C is 100 A. Spring force is 1800 cN at a nominal travel of 4 mm.
