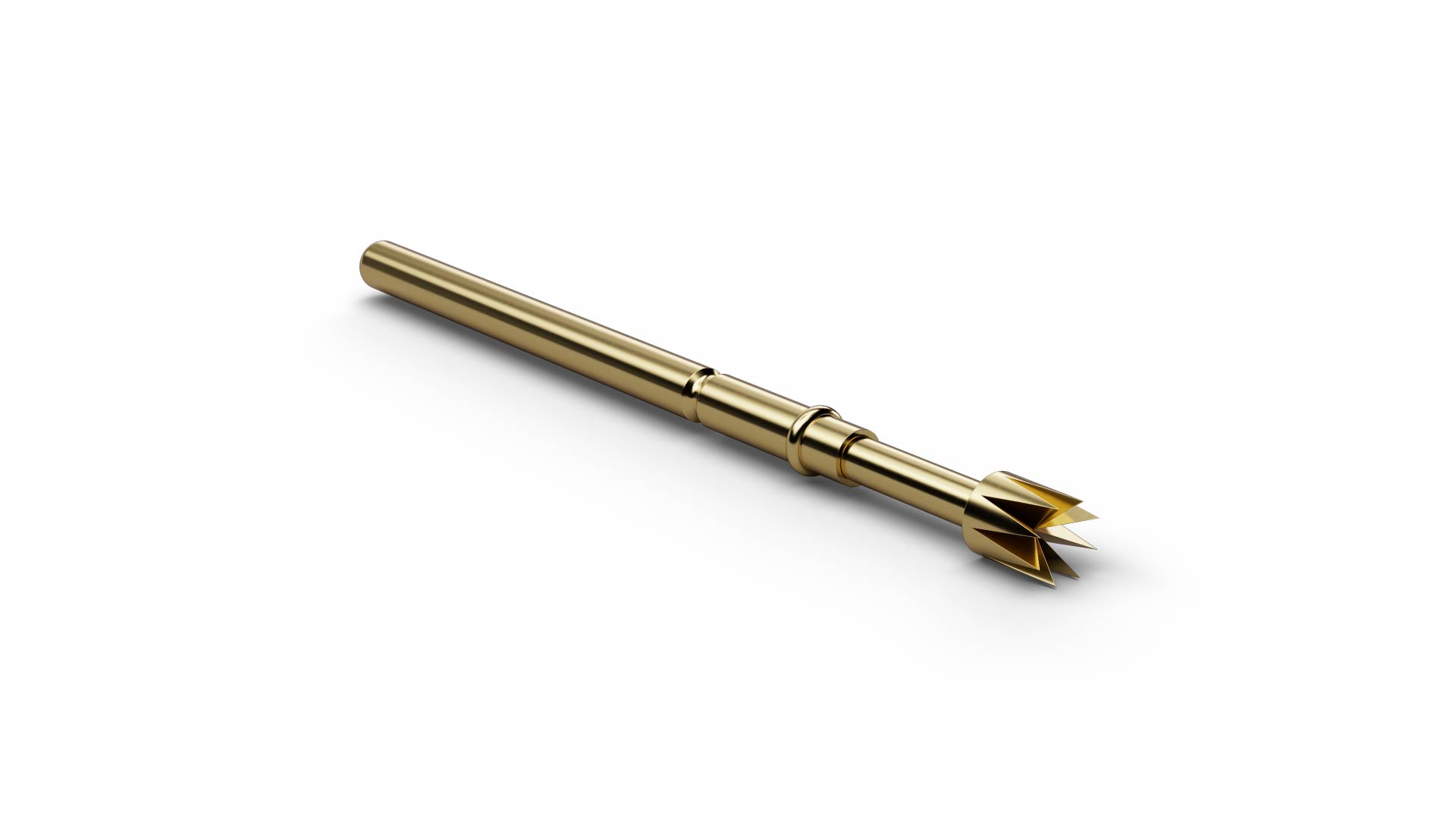

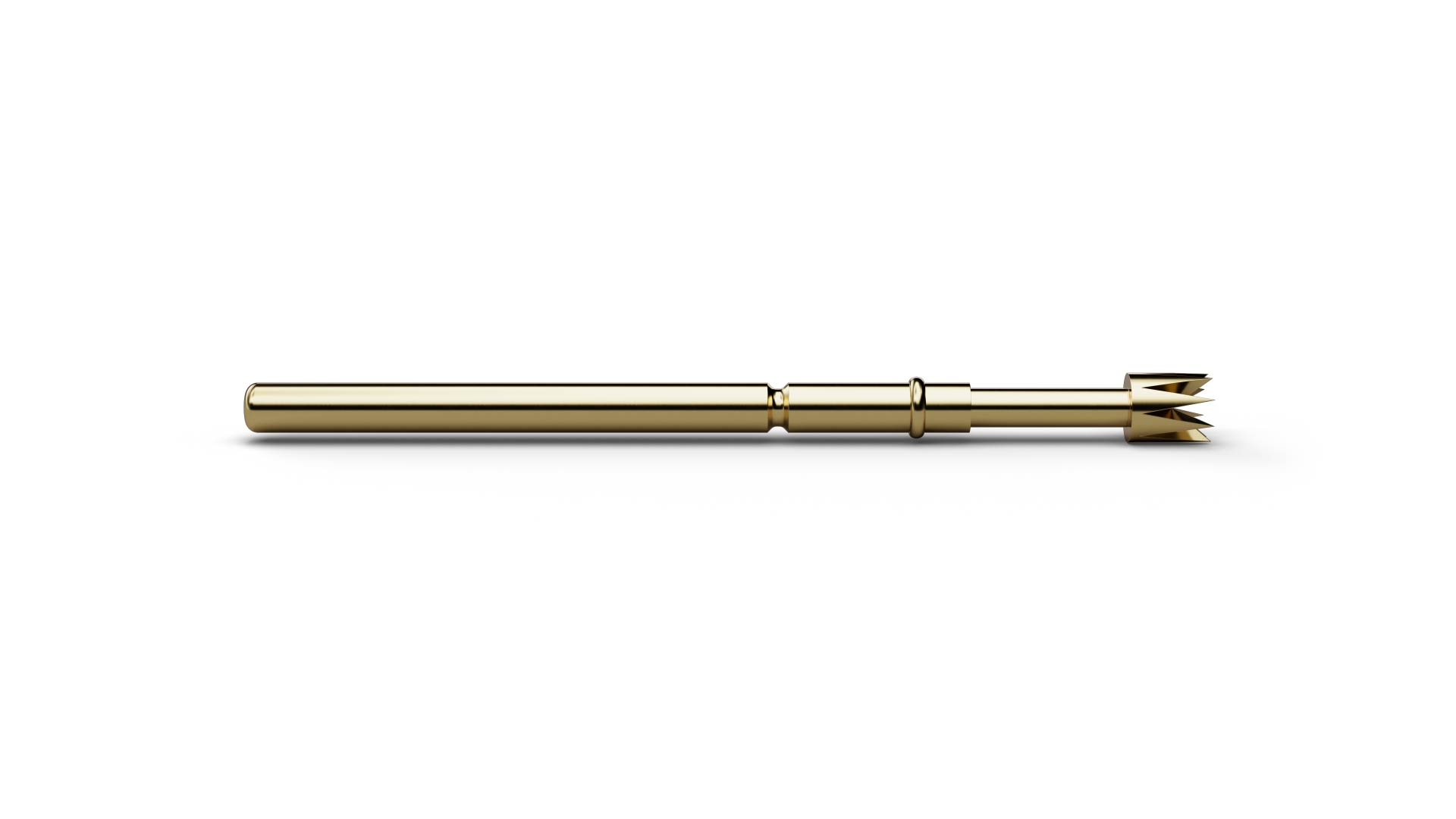

F77263S230L300 (item number 1034177) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 63 (8-point crown stepped (self-cleaning)), F77263S230L300 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. The design combines a pitch of 2.54 mm / 100 mil with tip style 63 (8-point crown stepped (self-cleaning)) and a tip diameter of 2.3 mm. F77263S230L300 operates with 300 cN spring force and 4 mm nominal travel. F77263S230L300 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F77263S230L300 is made of steel and uses Longtime Gold plating.
