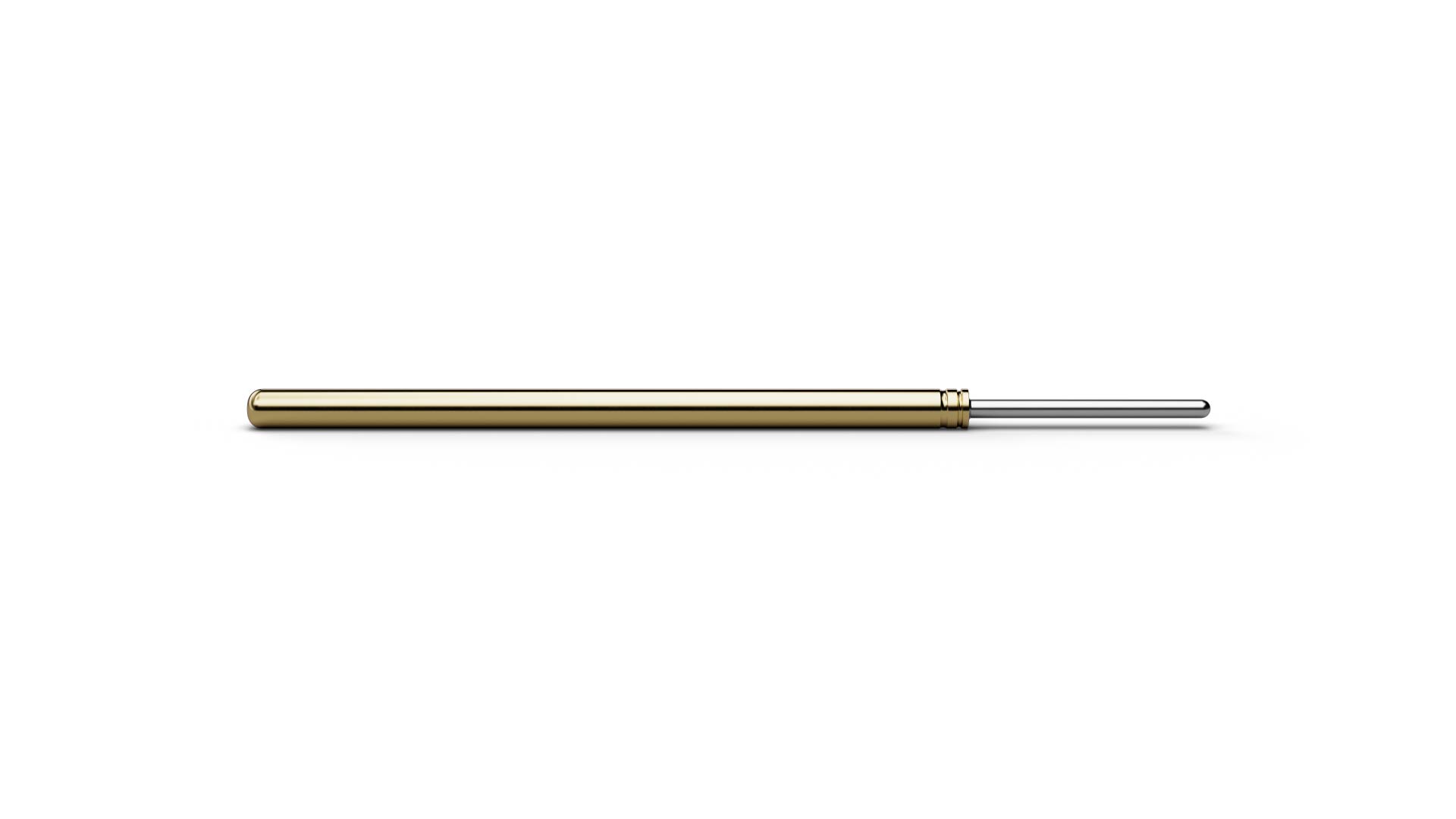

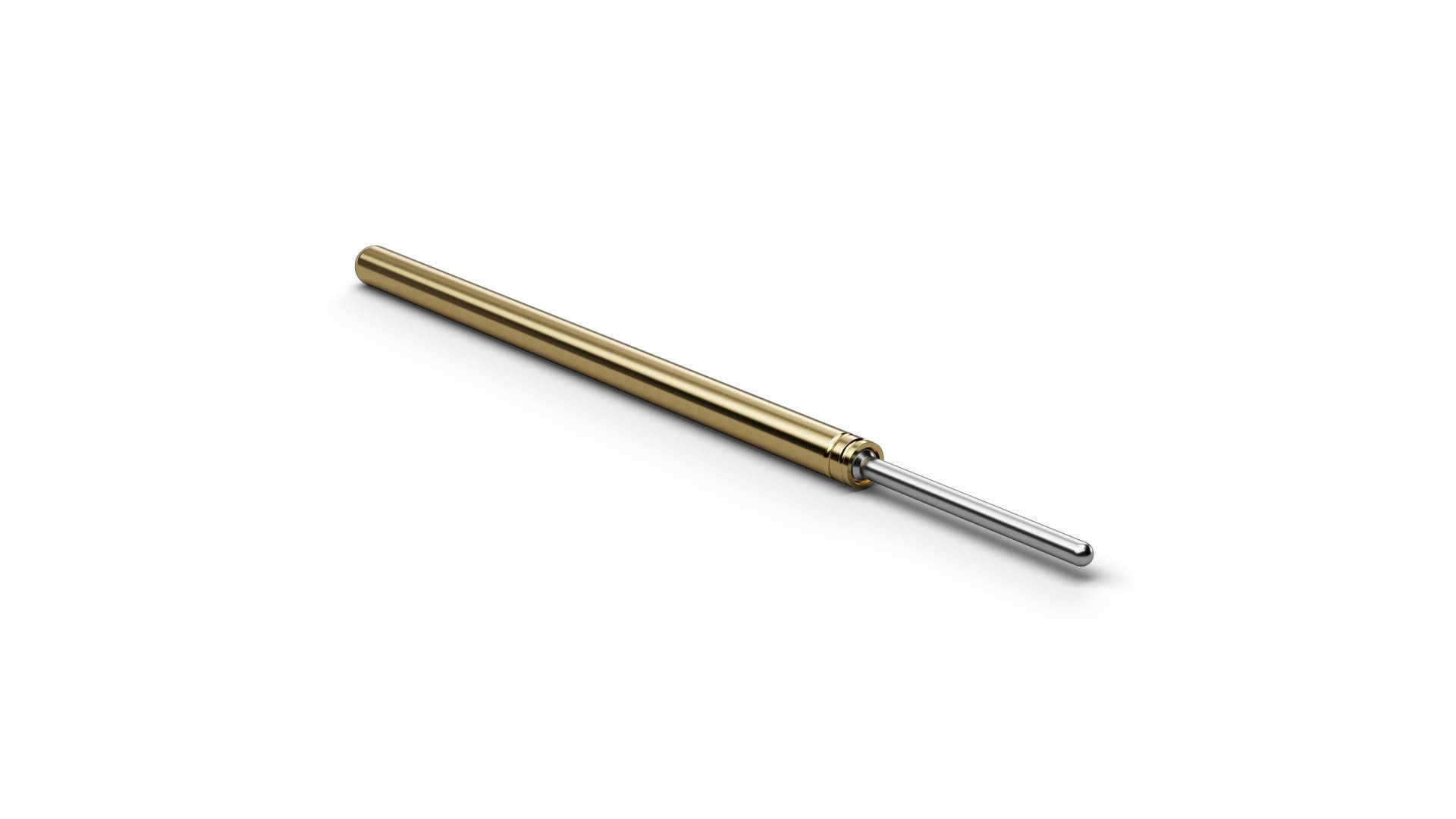

F10011B064P300 (item number 1034755) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 11 (Spherical), F10011B064P300 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F10011B064P300 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 0.64 mm. F10011B064P300 operates with 300 cN spring force and 4.3 mm nominal travel. F10011B064P300 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10011B064P300 is made of beryllium copper and uses Progressive Coating.
