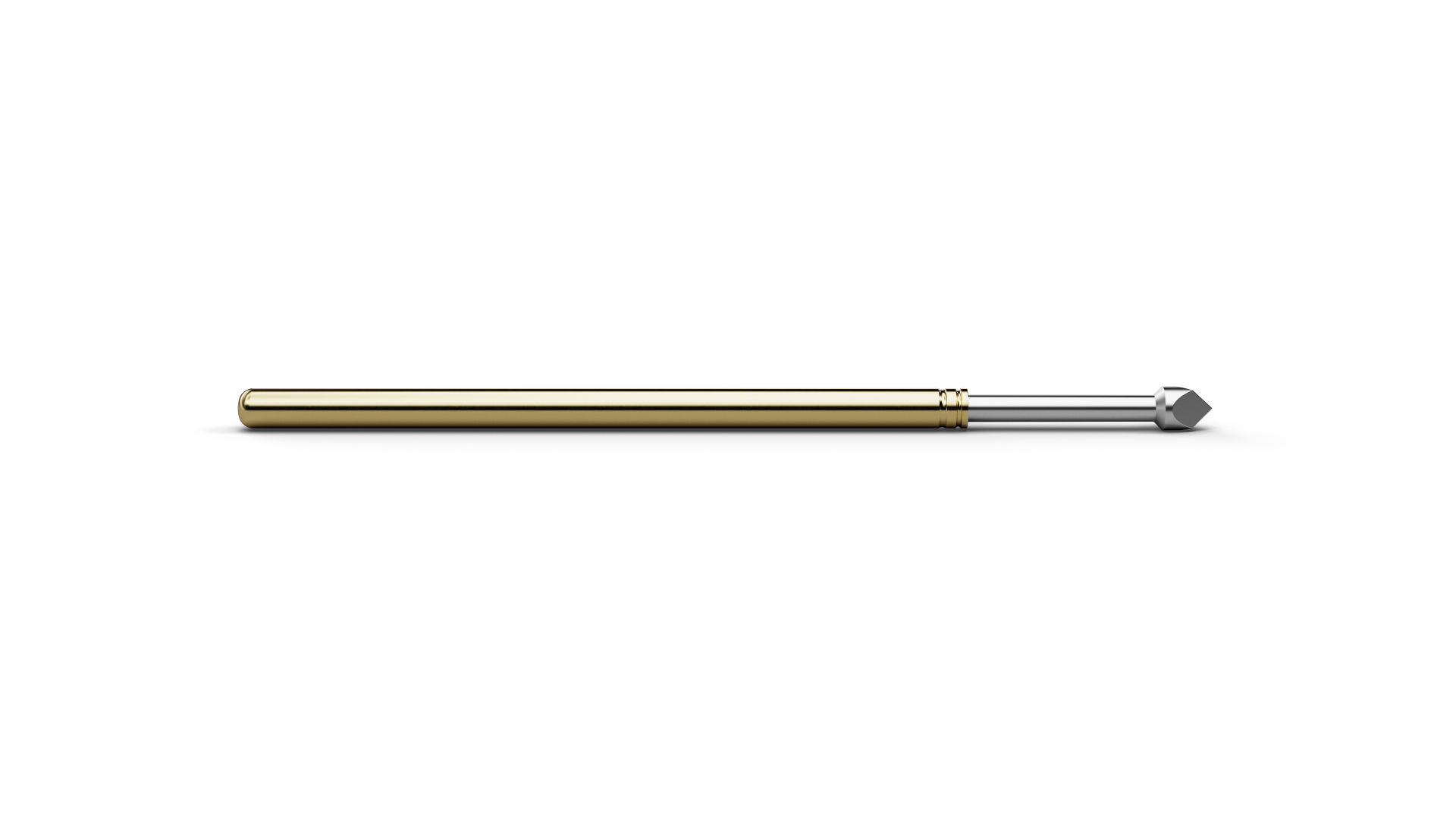

The Basic Contact Probe F10015B150P300HP (item number 1036642) is a spring-loaded probe for temporary electrical contact with test points. With tip style 15 (Triangular 45° stepped), F10015B150P300HP combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10015B150P300HP combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.5 mm. For F10015B150P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. F10015B150P300HP is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. Two features address difficult surface conditions on F10015B150P300HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
