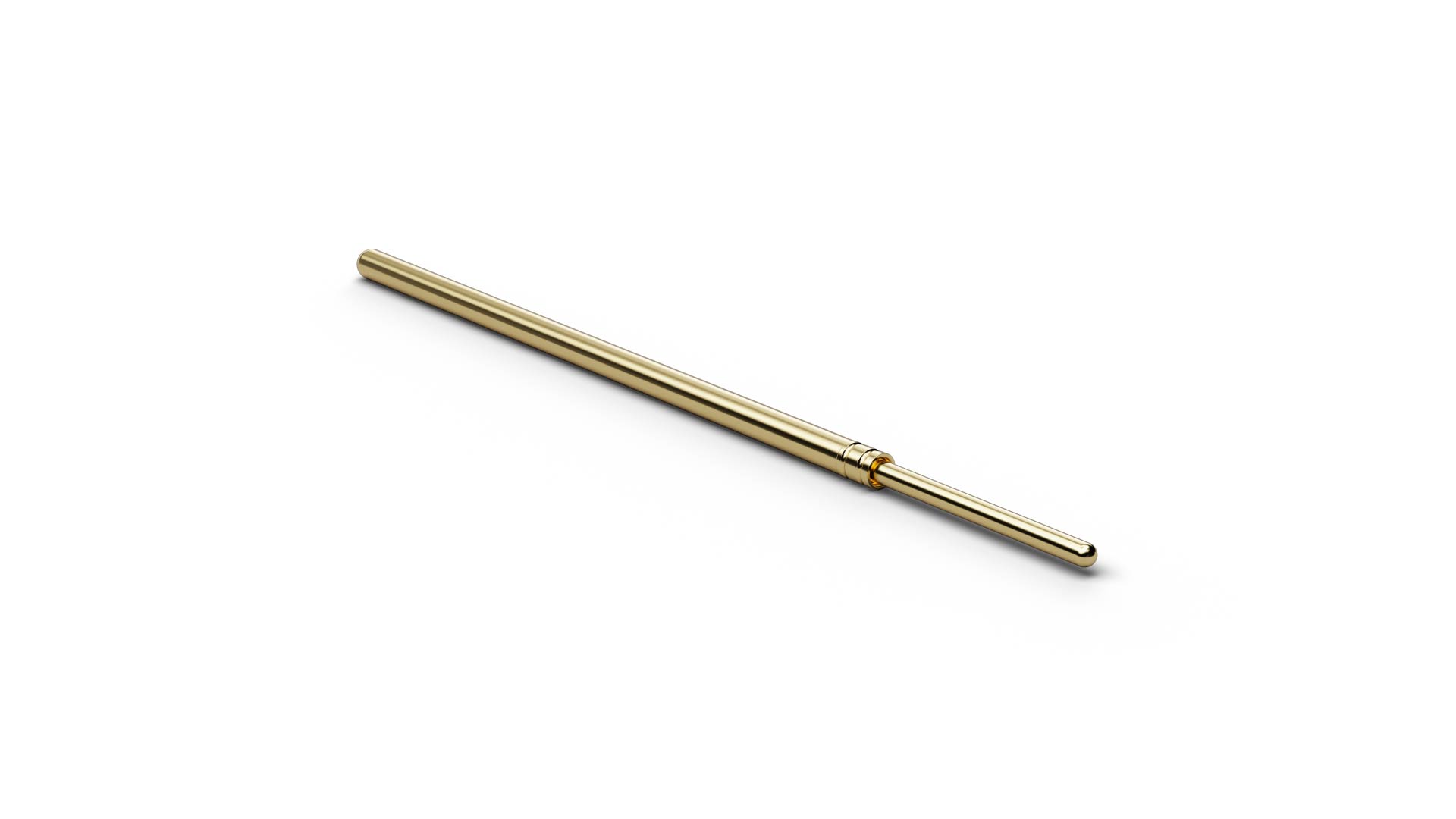

The Basic Contact Probe F07511B064G180HS1 (item number 1036958) is a spring-loaded probe for temporary electrical contact with test points. With tip style 11 (Spherical), F07511B064G180HS1 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F07511B064G180HS1 combines a pitch of 1.9 mm / 75 mil with tip style 11 (Spherical) and a tip diameter of 0.64 mm. Spring force is 180 cN at a nominal travel of 5 mm. F07511B064G180HS1 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07511B064G180HS1 is made of beryllium copper and is gold-plated.
