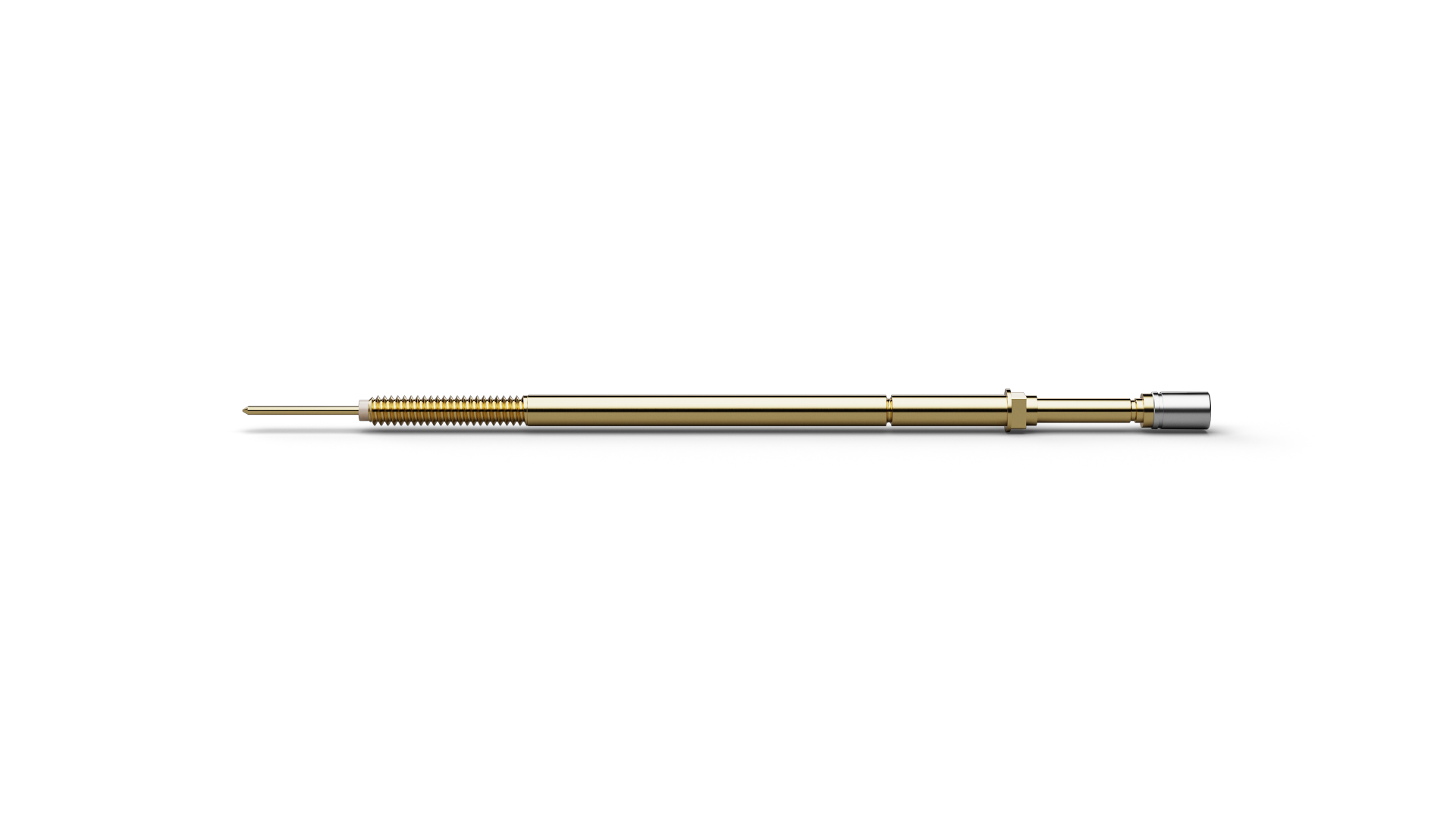

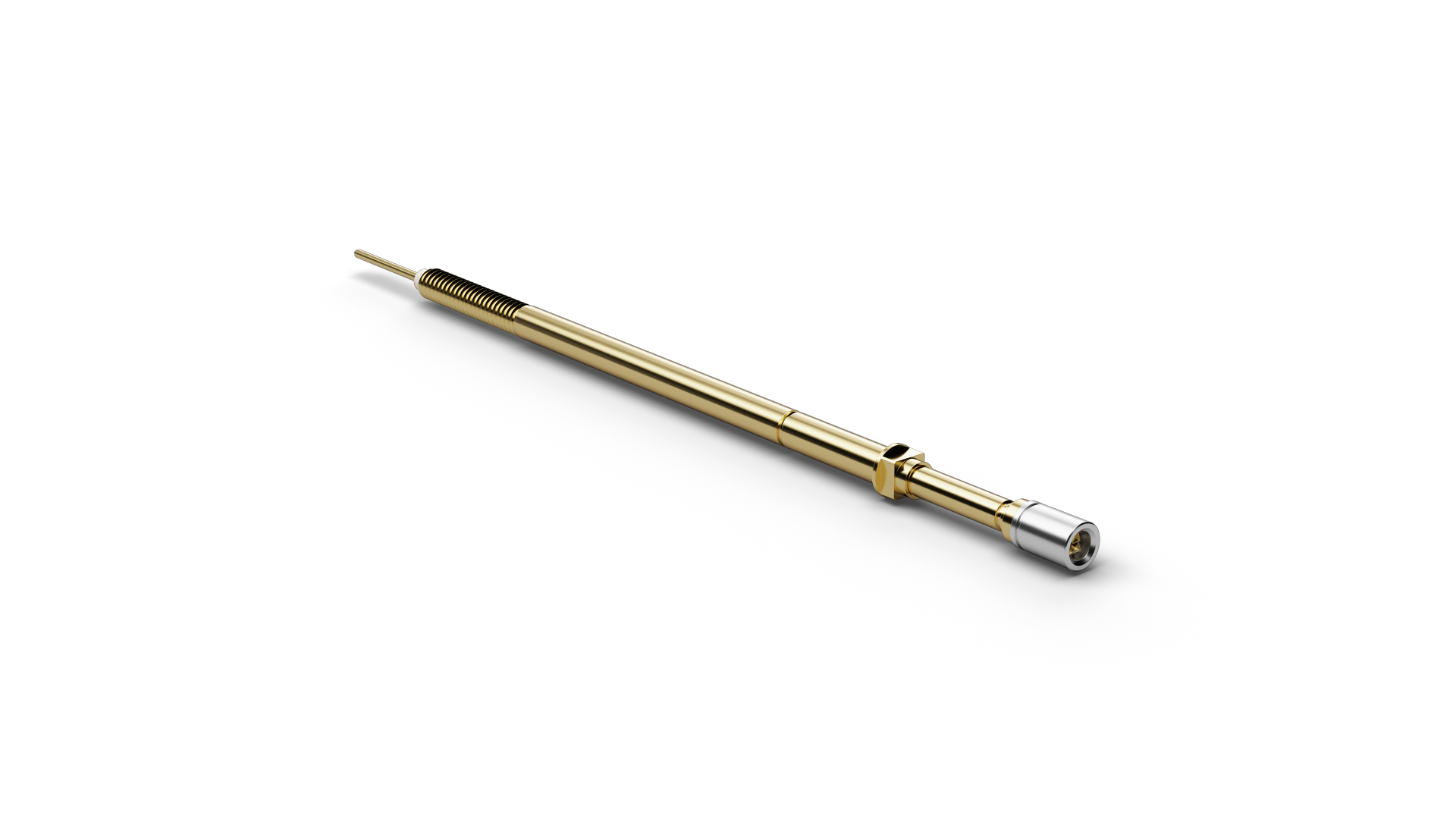

For test tasks requiring status feedback, F87506B120G135IK05 (item number 1039817) provides spring-loaded contacting with a defined switching function. F87506B120G135IK05 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F87506B120G135IK05 is NO (Normally Open). The switching travel specified for F87506B120G135IK05 is 1.5 mm. The design combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.2 mm. For F87506B120G135IK05, spring force is 135 cN at a nominal travel of 4 mm.
