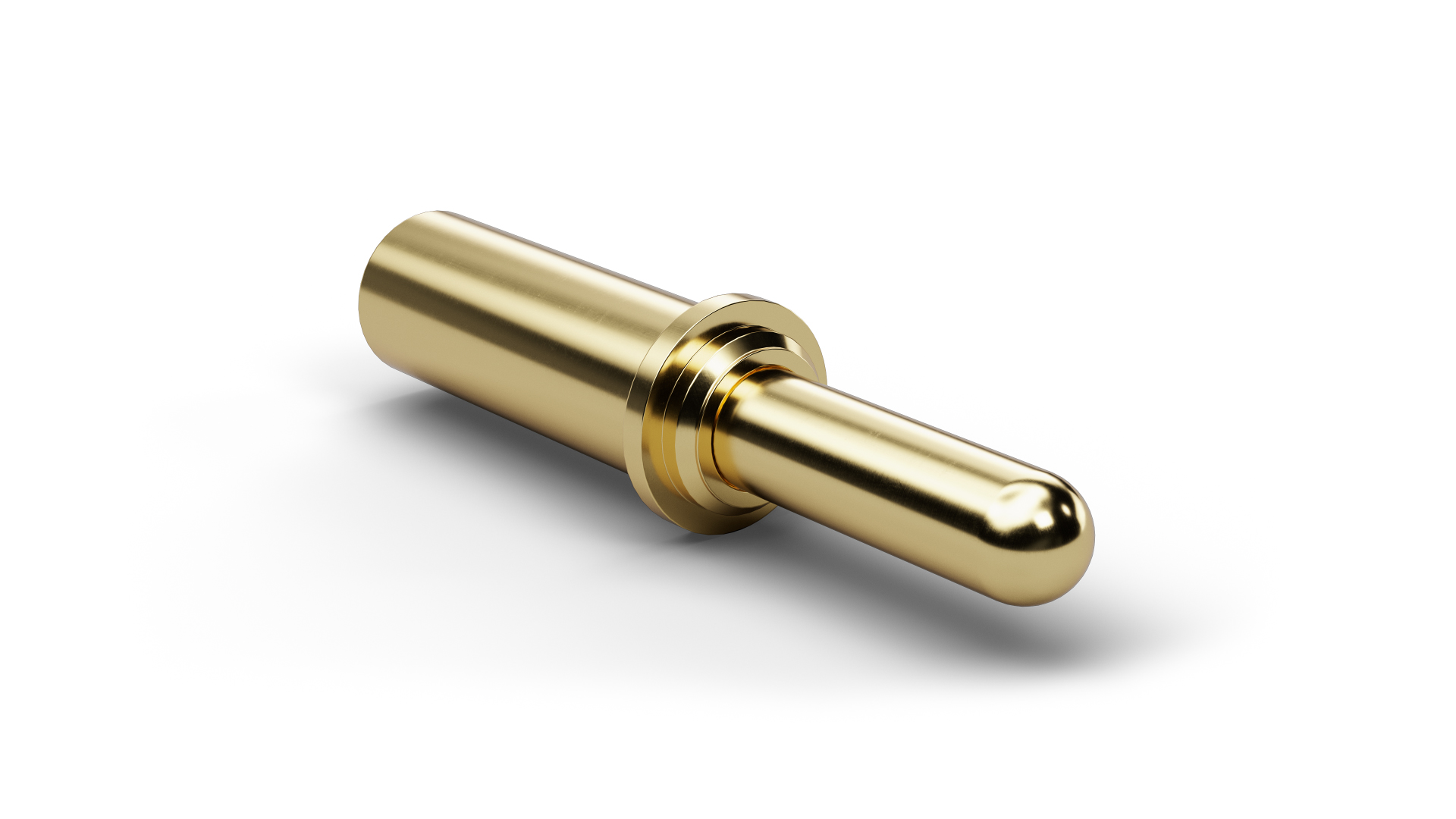

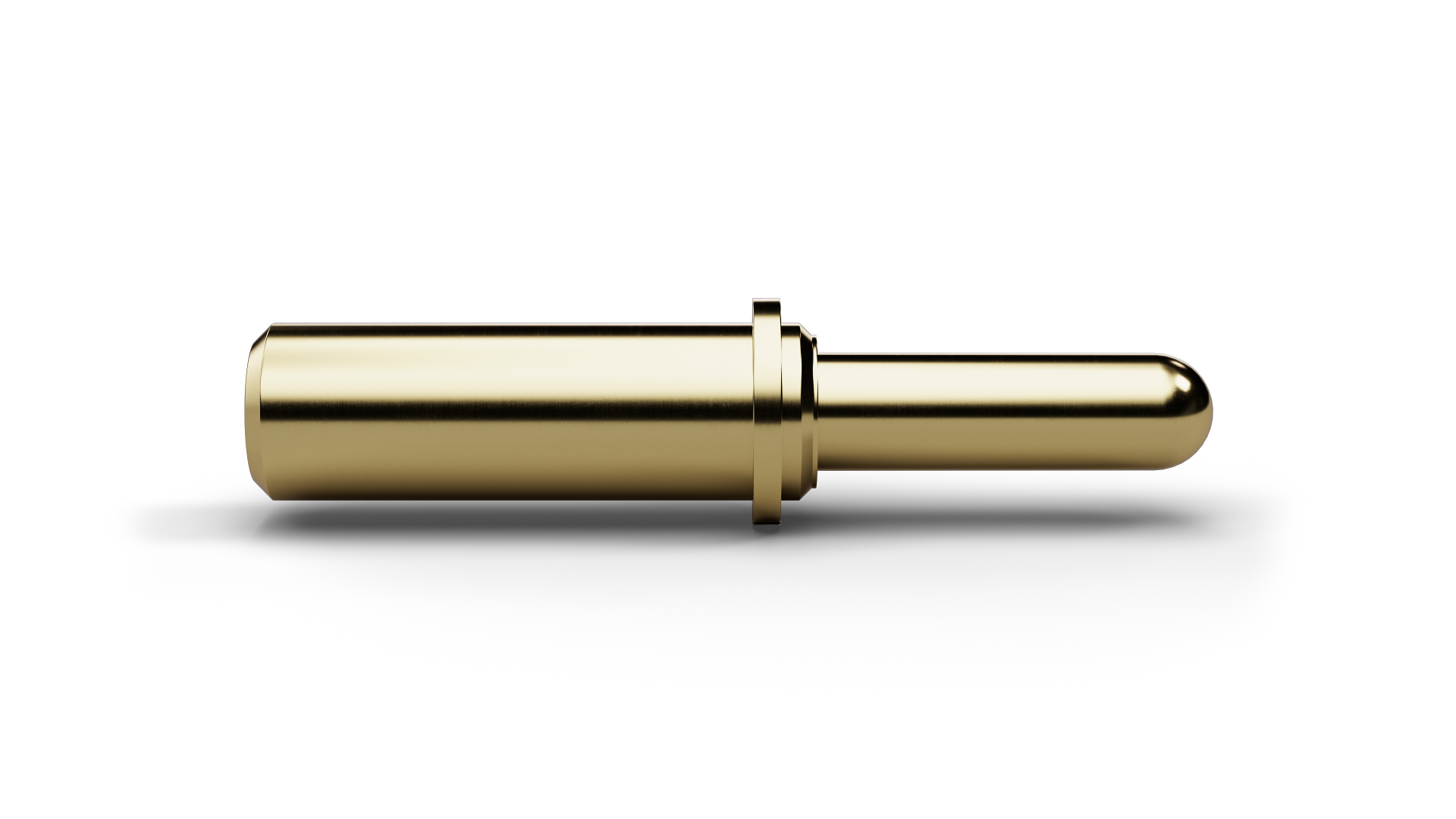

The High Current Probe P19711B130G130TL106STS2 (item number 1042316) is designed for safe transmission of high electrical currents in test and contacting applications. P19711B130G130TL106STS2 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For P19711B130G130TL106STS2, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. P19711B130G130TL106STS2 is rated for 9 A continuous current with a typical contact resistance of 100 mΩ. Spring force is 130 cN at a nominal travel of 1.5 mm. On P19711B130G130TL106STS2, tip style 11 (Spherical) has a diameter of 1.3 mm.
