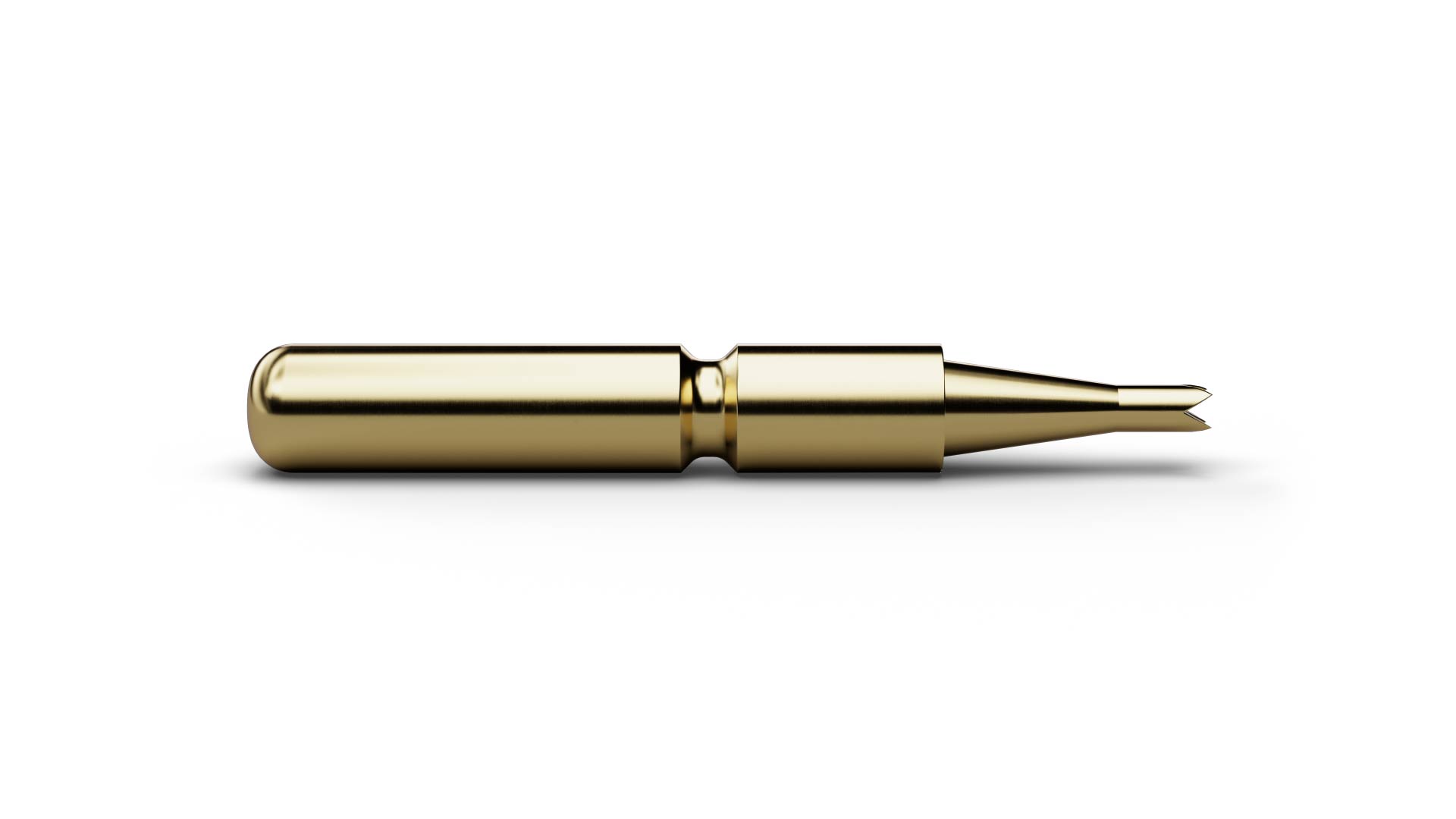

The Pogo Connector P13729B050G100L102H (item number 1053981) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P13729B050G100L102H is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P13729B050G100L102H is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 2.54 mm / 100 mil, spring force is 100 cN at a nominal travel of 1.25 mm. P13729B050G100L102H is rated for 8 A continuous current with a typical contact resistance of 20 mΩ. Tip style 37 (4-point crown stepped) has a diameter of 0.5 mm. The final H identifies the high-temperature version; P13729B050G100L102H is suitable for applications up to 200 °C.
