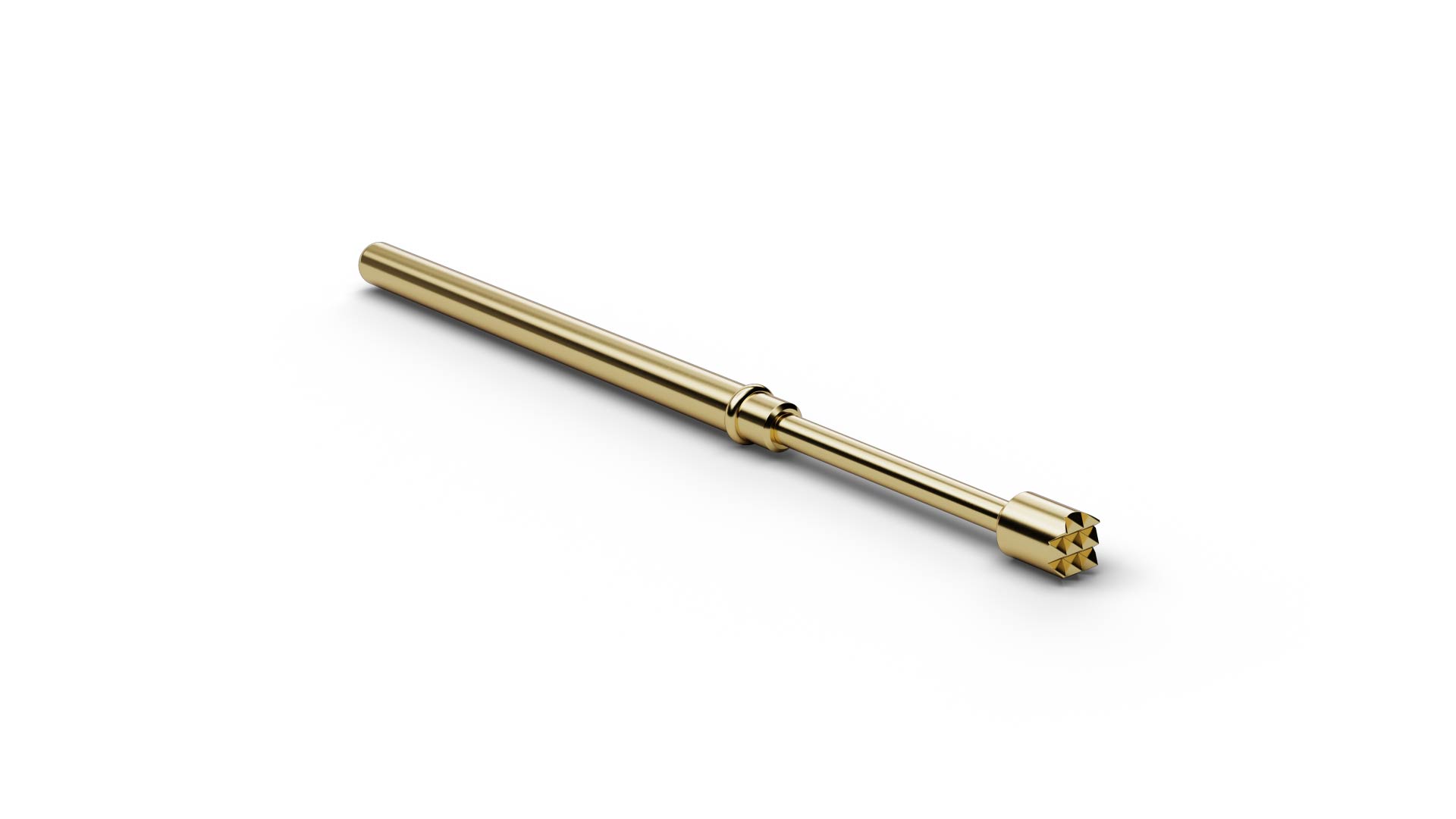

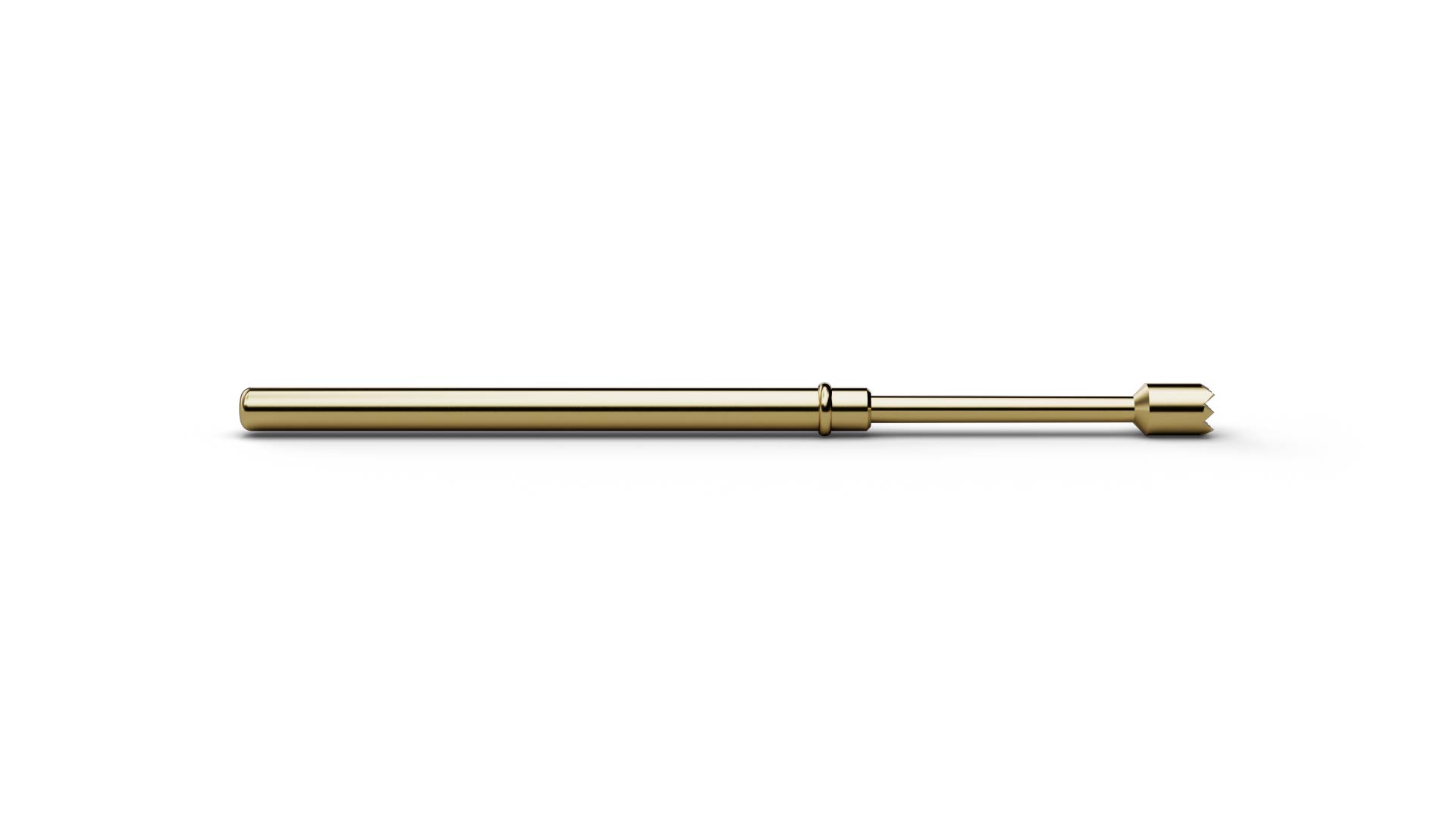

As a Basic Contact Probe, F79706B200G150 (item number 1054000) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F79706B200G150 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F79706B200G150 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm. For F79706B200G150, spring force is 150 cN at a nominal travel of 8 mm. F79706B200G150 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F79706B200G150 is made of beryllium copper and is gold-plated.
