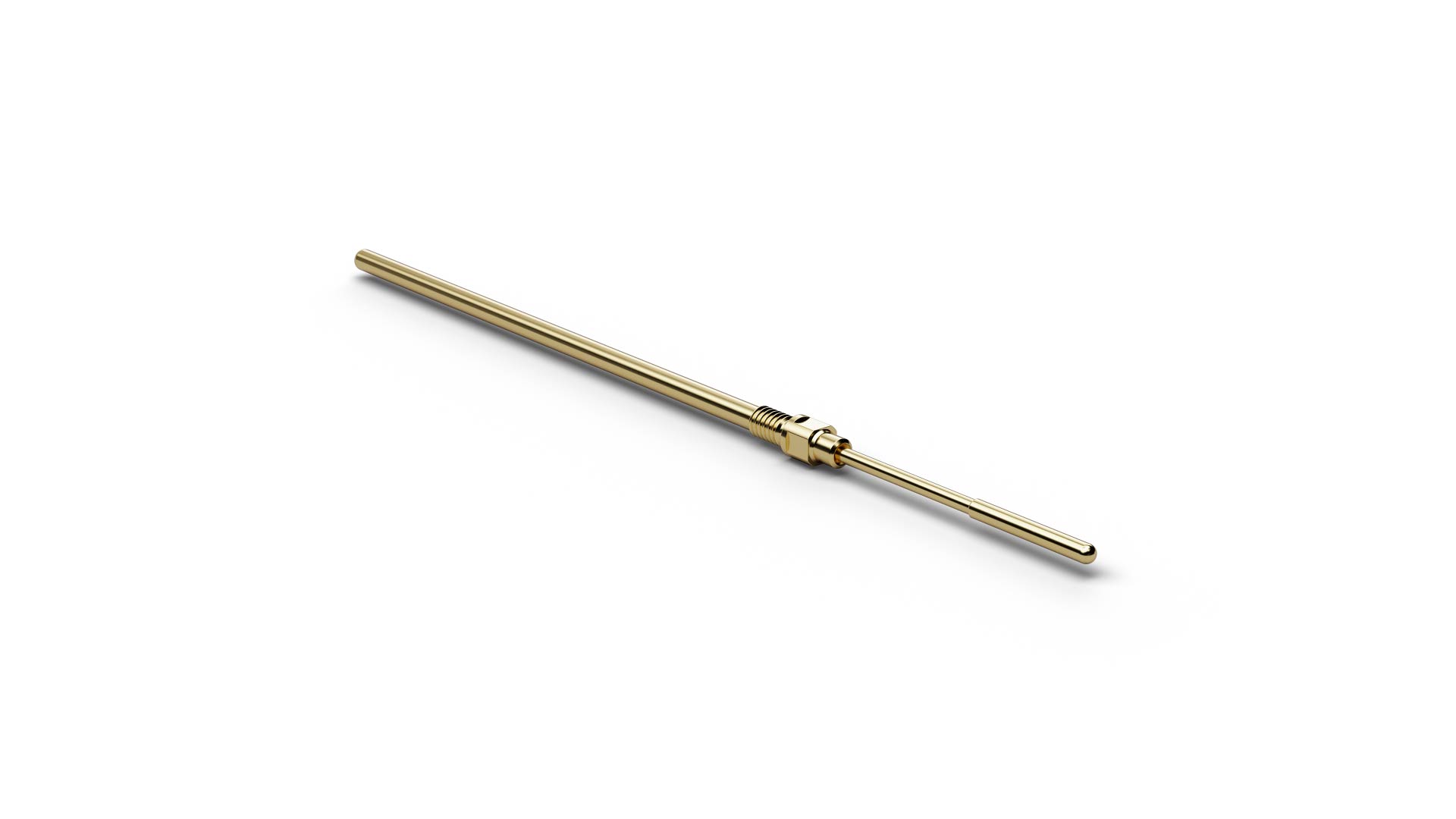

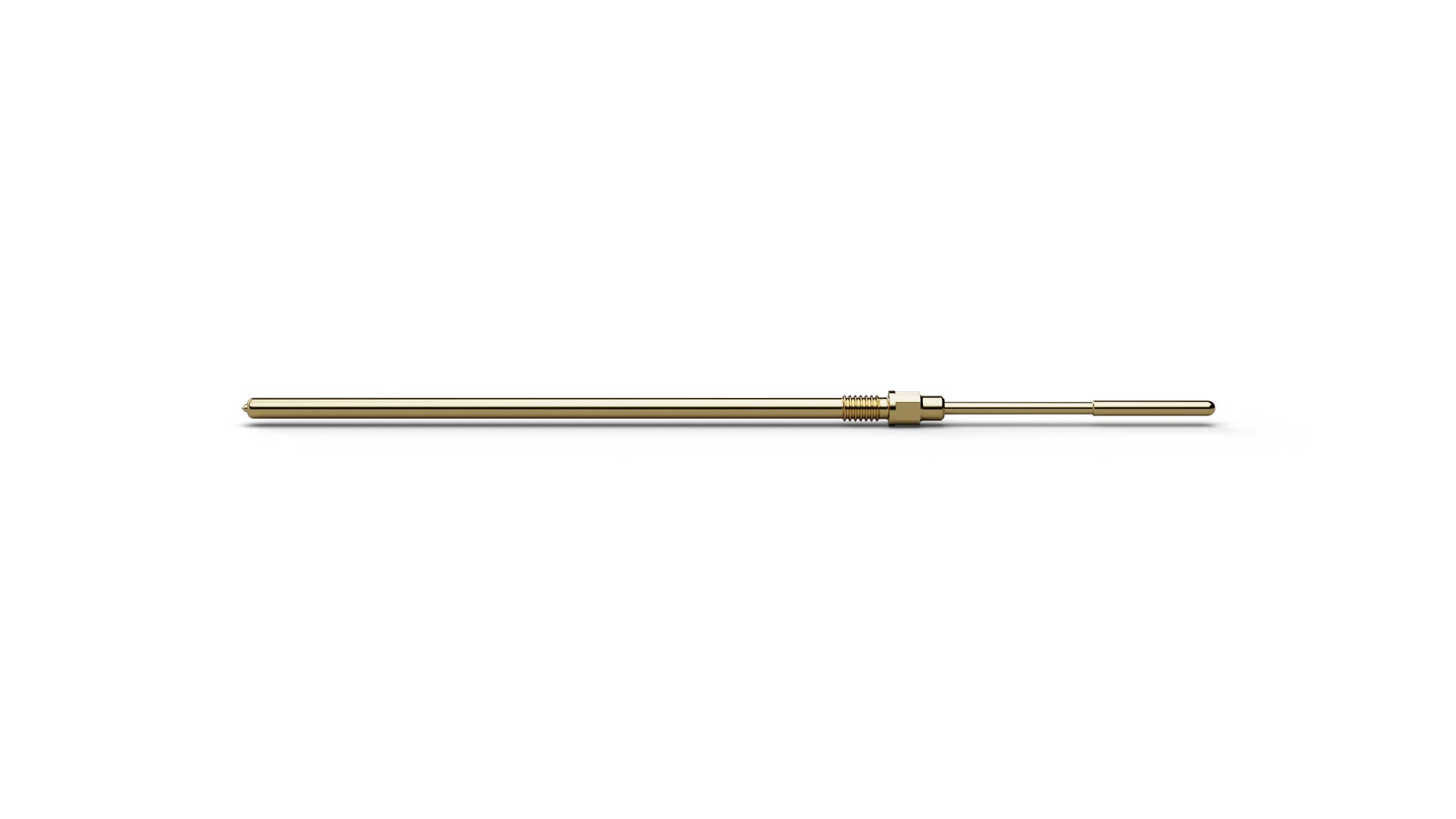

F72011B050G110 (item number 1054915) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F72011B050G110 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F72011B050G110 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F72011B050G110 is installed using a M0.9X0.175 thread. F72011B050G110 combines a pitch of 1.27 mm / 50 mil with tip style 11 (Spherical) and a tip diameter of 0.5 mm. F72011B050G110 operates with 110 cN spring force and 4 mm nominal travel.
