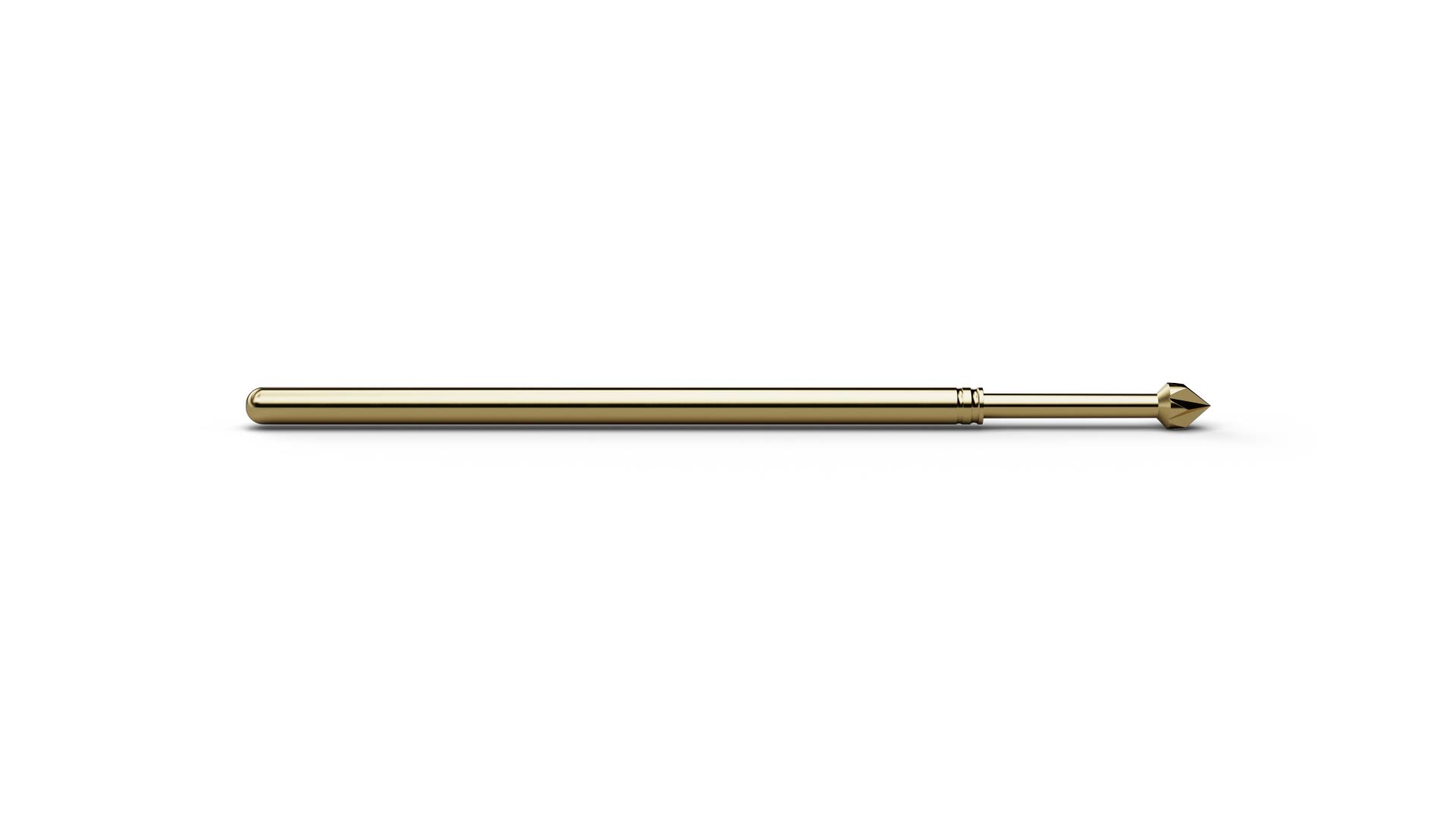

F10007S170L150L (item number 1092024) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 07 (Hexagonal 90° stepped), F10007S170L150L combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. F10007S170L150L combines a pitch of 2.54 mm / 100 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 1.7 mm. For F10007S170L150L, spring force is 150 cN at a nominal travel of 4.3 mm. The electrical rating of F10007S170L150L combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10007S170L150L is made of steel and uses Longtime Gold plating.
