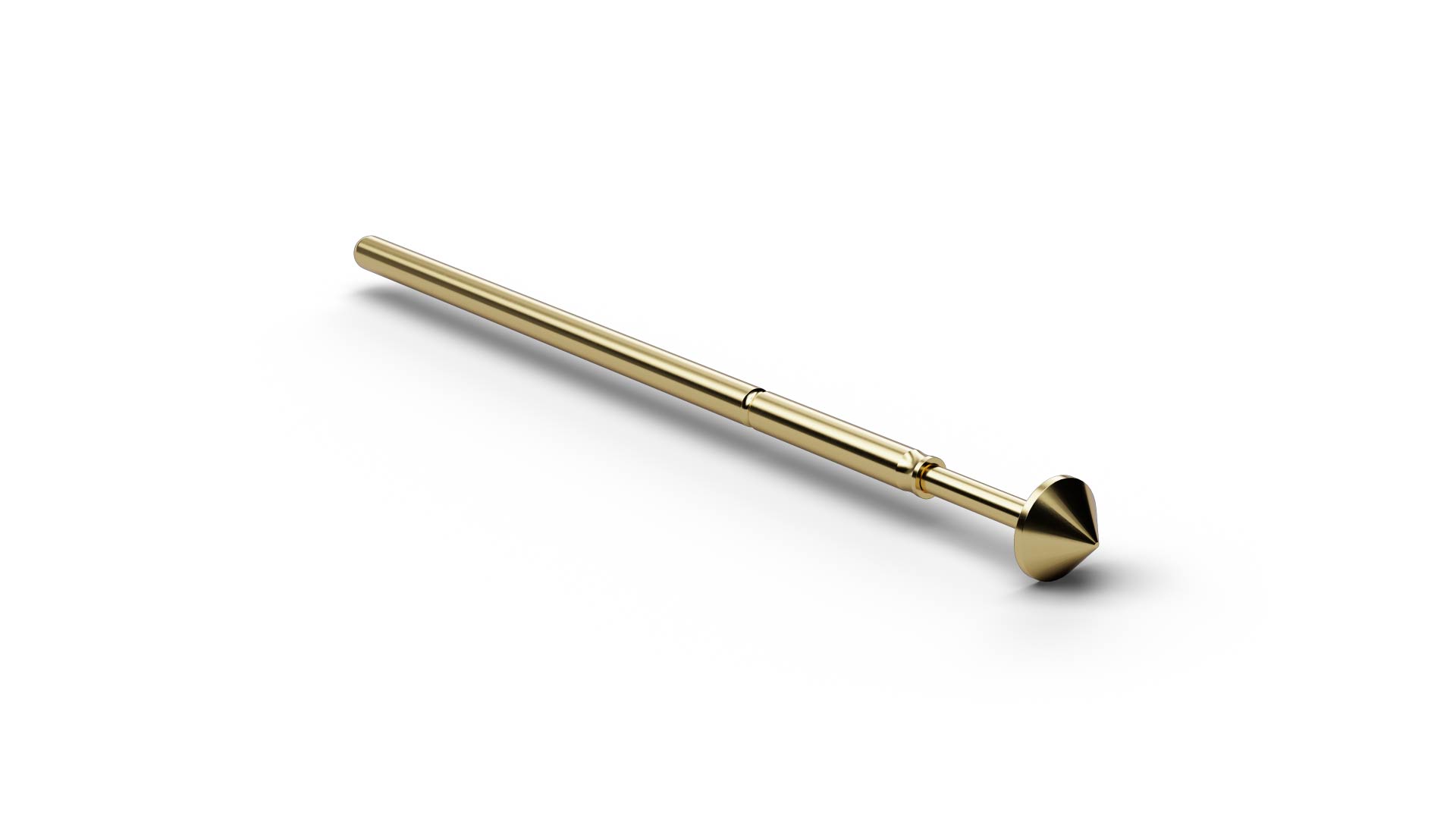

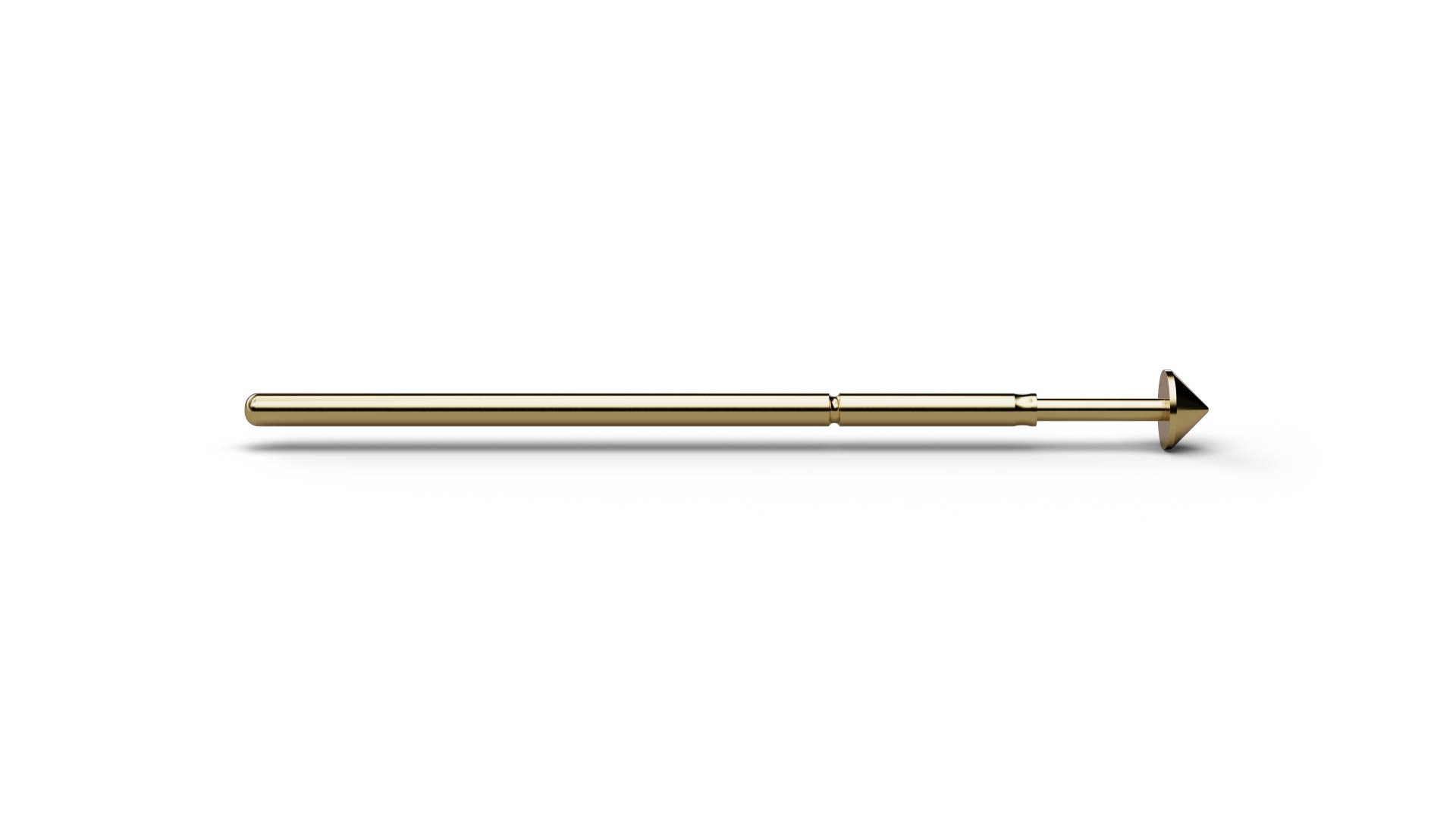

As a Basic Contact Probe, F08302B180G120 (item number 1106277) establishes a spring-loaded electrical connection to the test point. With tip style 02 (Conical 90° stepped), F08302B180G120 combines ICT/FCT use with a geometry intended for solder pads and vias. F08302B180G120 combines a pitch of 1.27 mm / 50 mil with tip style 02 (Conical 90° stepped) and a tip diameter of 1.8 mm. F08302B180G120 operates with 120 cN spring force and 2 mm nominal travel. F08302B180G120 is rated for 3 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F08302B180G120 is made of beryllium copper and is gold-plated.
