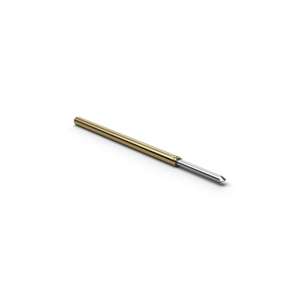

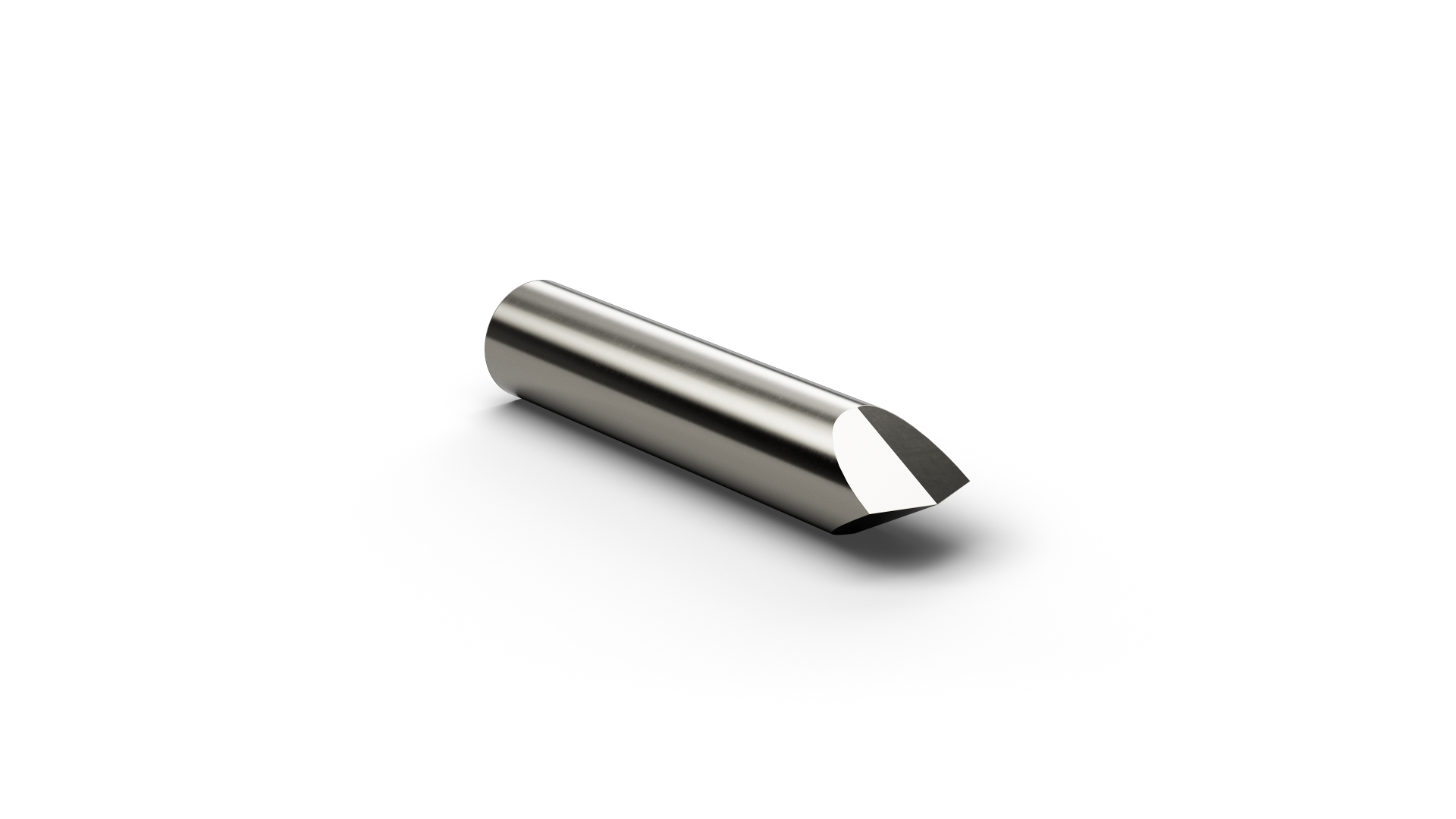

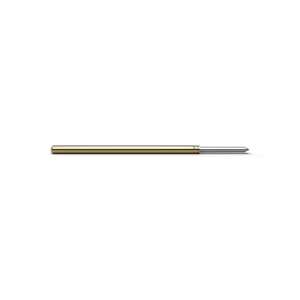

The Basic Contact Probe F10038S090P200HP (item number 1121650) is a spring-loaded probe for temporary electrical contact with test points. With tip style 38 (Square lance 140°), F10038S090P200HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10038S090P200HP combines a pitch of 2.54 mm / 100 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.9 mm. F10038S090P200HP operates with 200 cN spring force and 4.3 mm nominal travel. Two features address difficult surface conditions on F10038S090P200HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
