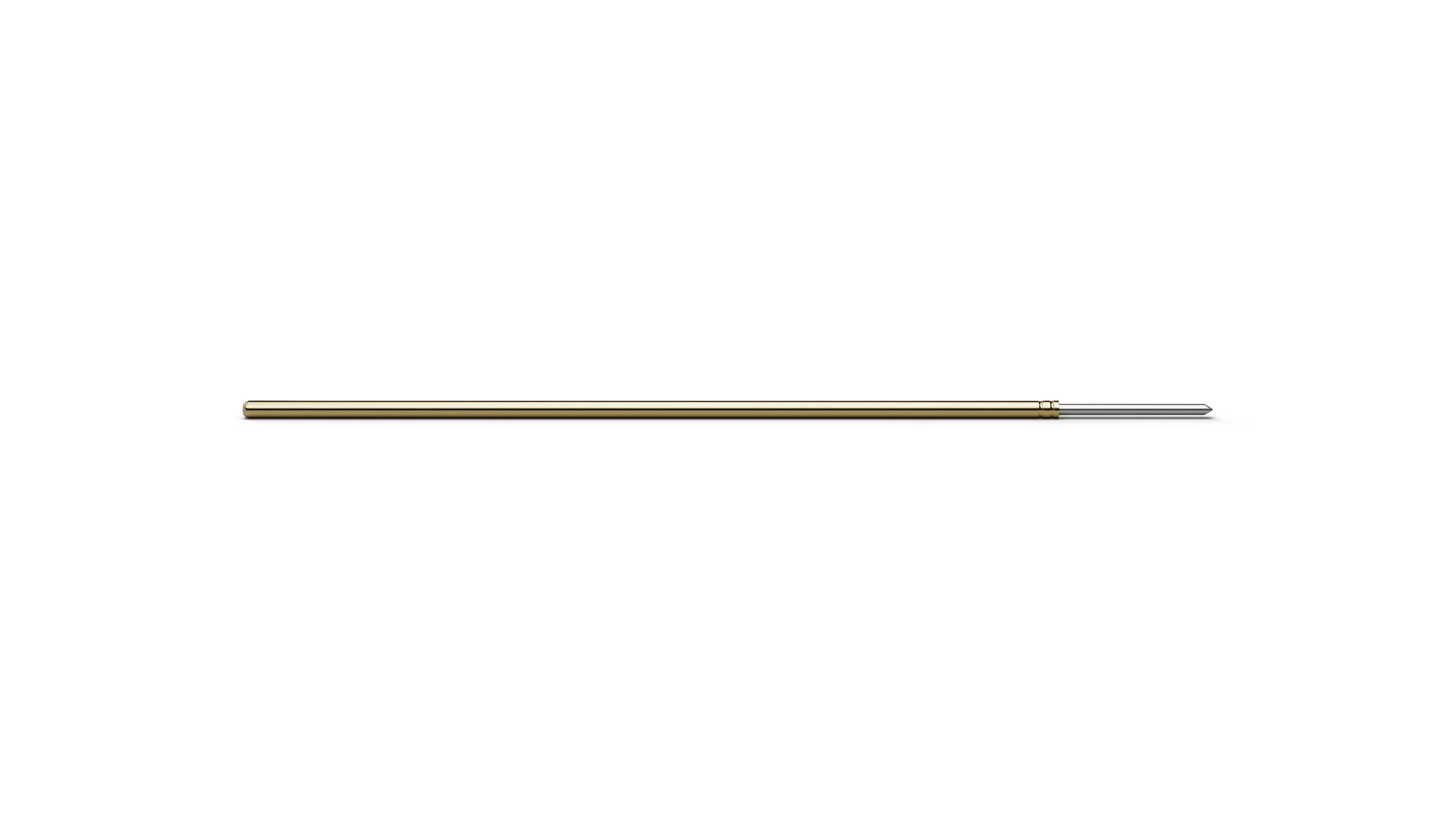

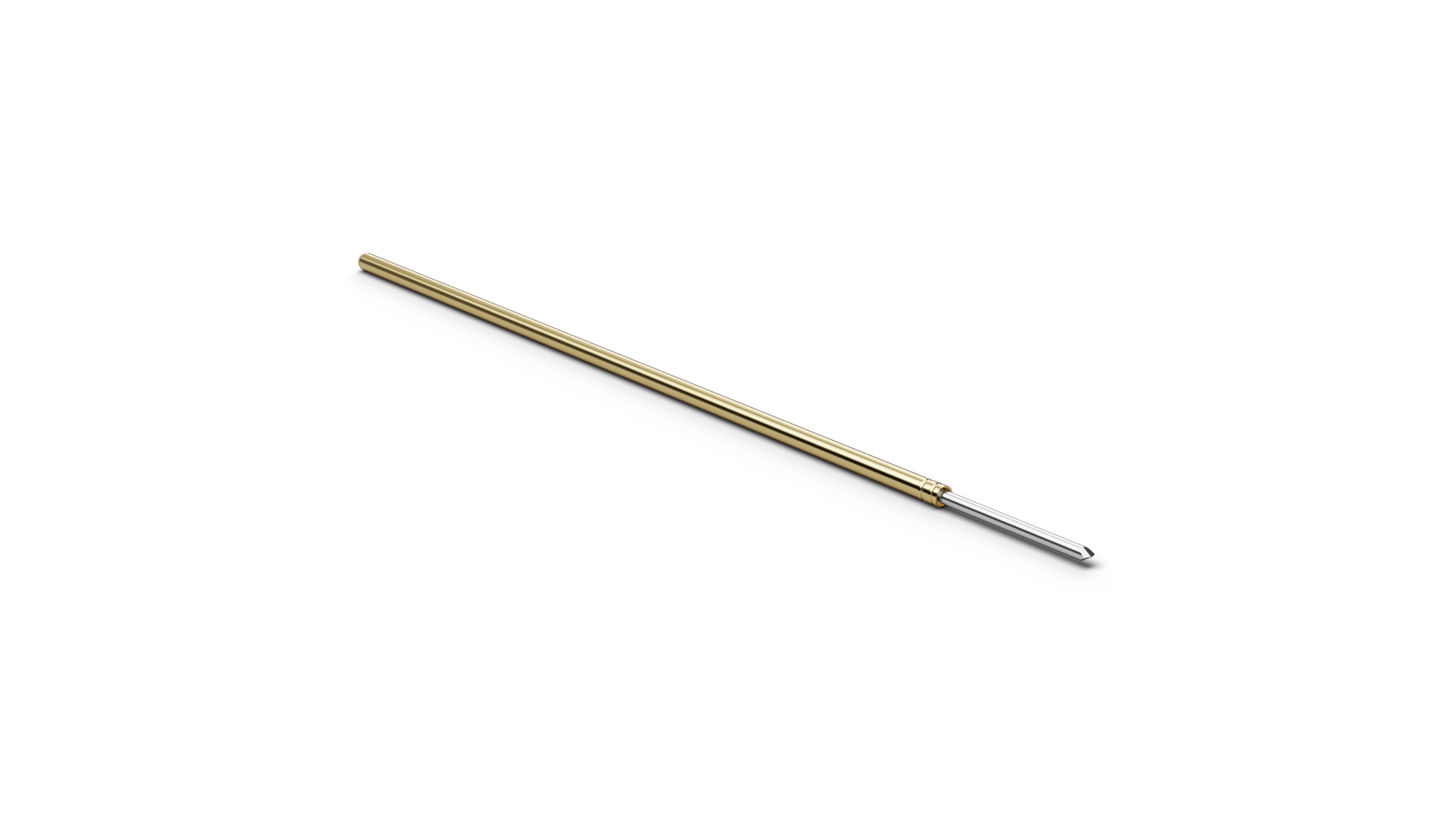

F05038S050P200HP (item number 1137521) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 38 (Square lance 140°), F05038S050P200HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05038S050P200HP combines a pitch of 1.27 mm / 50 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.5 mm. For F05038S050P200HP, spring force is 200 cN at a nominal travel of 4.3 mm. For F05038S050P200HP, the specified continuous current is 3 A. The P/HP configuration of F05038S050P200HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
