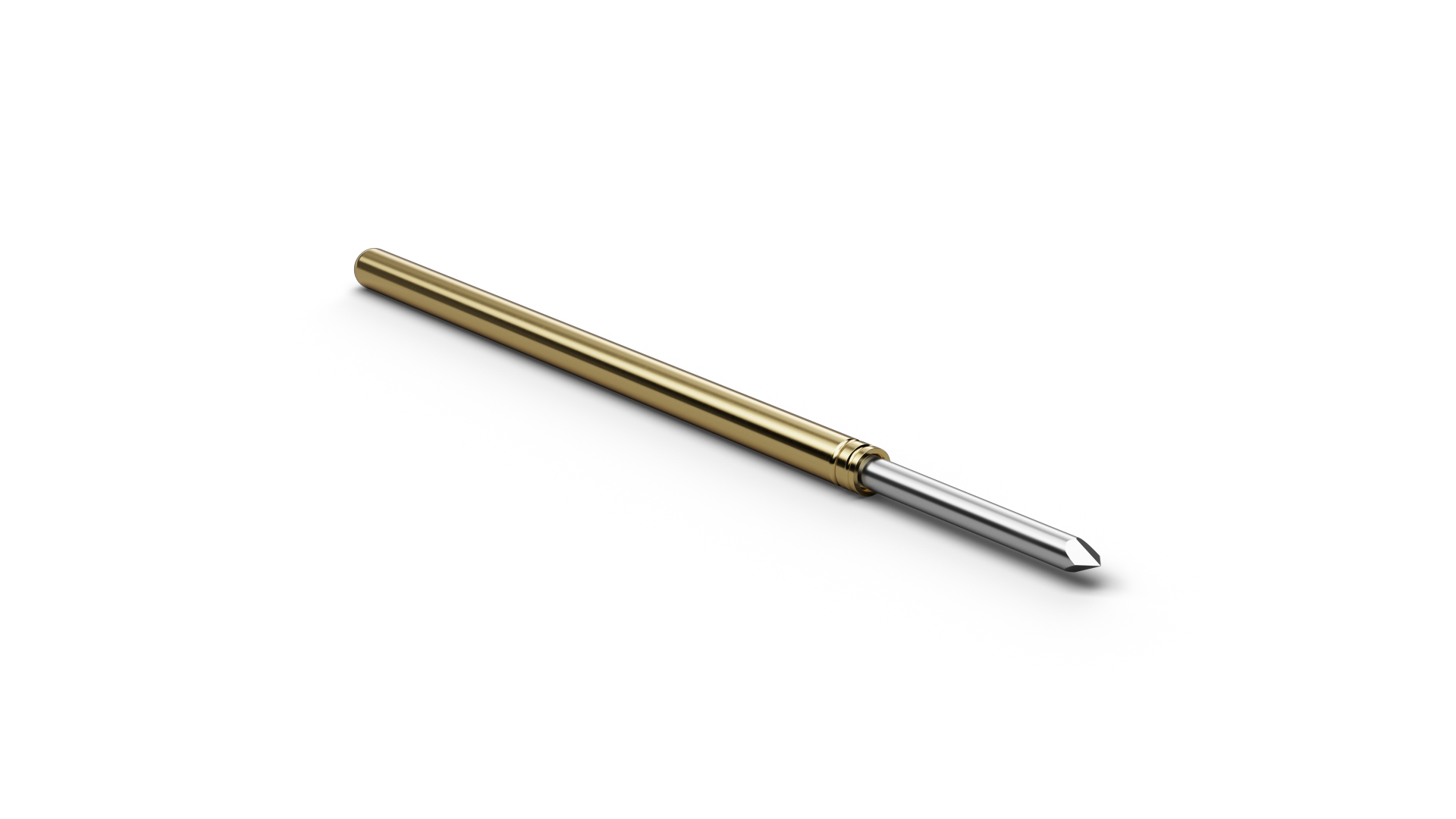

The Basic Contact Probe F10043S090P250HP (item number 1141081) is a spring-loaded probe for temporary electrical contact with test points. With tip style 43 (Square lance 90°), F10043S090P250HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10043S090P250HP combines a pitch of 2.54 mm / 100 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.9 mm. For F10043S090P250HP, spring force is 250 cN at a nominal travel of 4.3 mm. The electrical rating of F10043S090P250HP combines 5 A continuous current with 40 mΩ typical contact resistance. For demanding test points, F10043S090P250HP combines functional Progressive Coating with the higher preload of the HP spring, supporting reliable contact on OSP surfaces and areas affected by flux or contamination.
