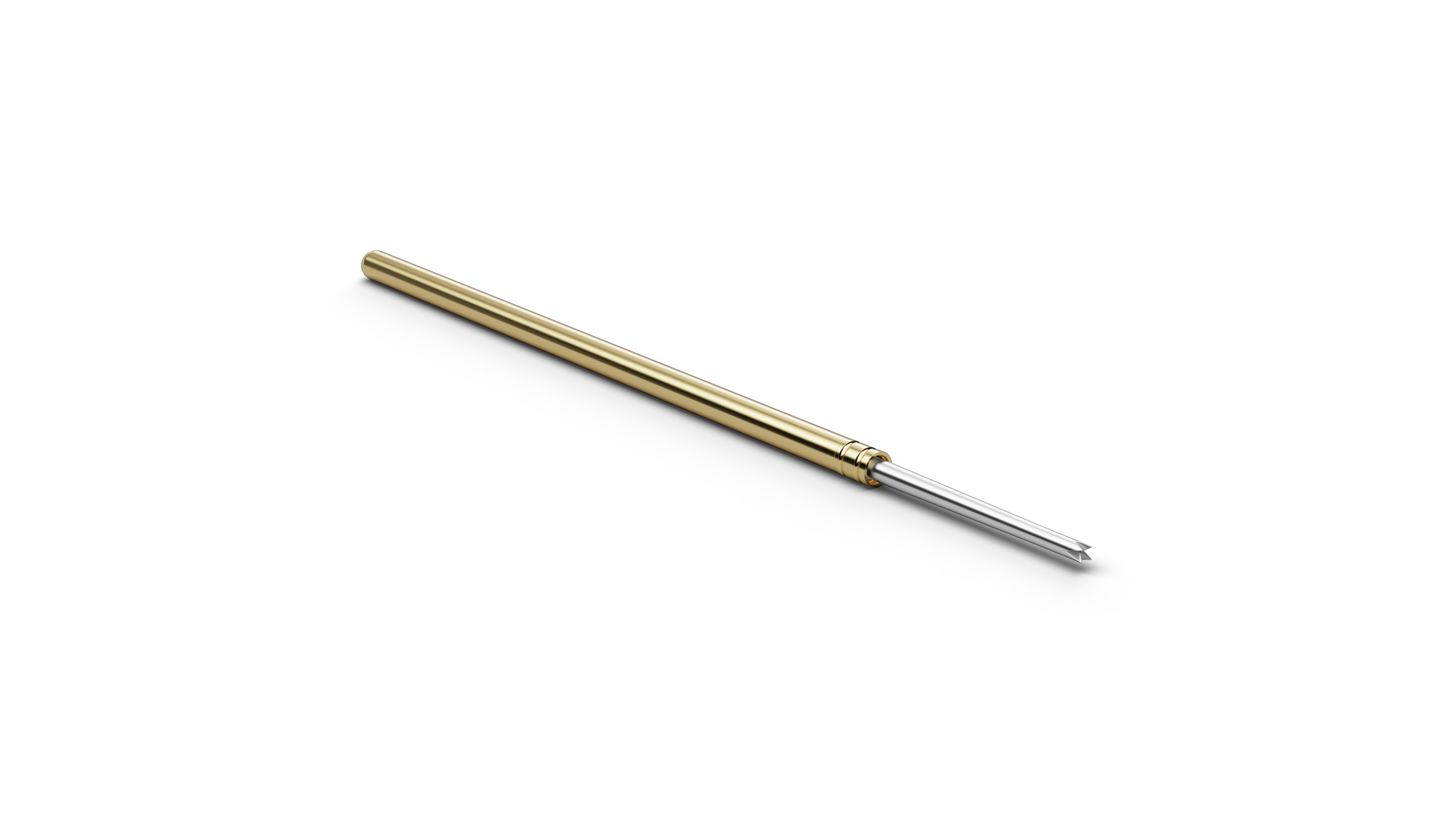

F07537B050P200HP (item number 1142404) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 37 (4-point crown stepped), F07537B050P200HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F07537B050P200HP combines a pitch of 1.9 mm / 75 mil with tip style 37 (4-point crown stepped) and a tip diameter of 0.5 mm. F07537B050P200HP operates with 200 cN spring force and 4.3 mm nominal travel. F07537B050P200HP is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. The P/HP configuration of F07537B050P200HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
