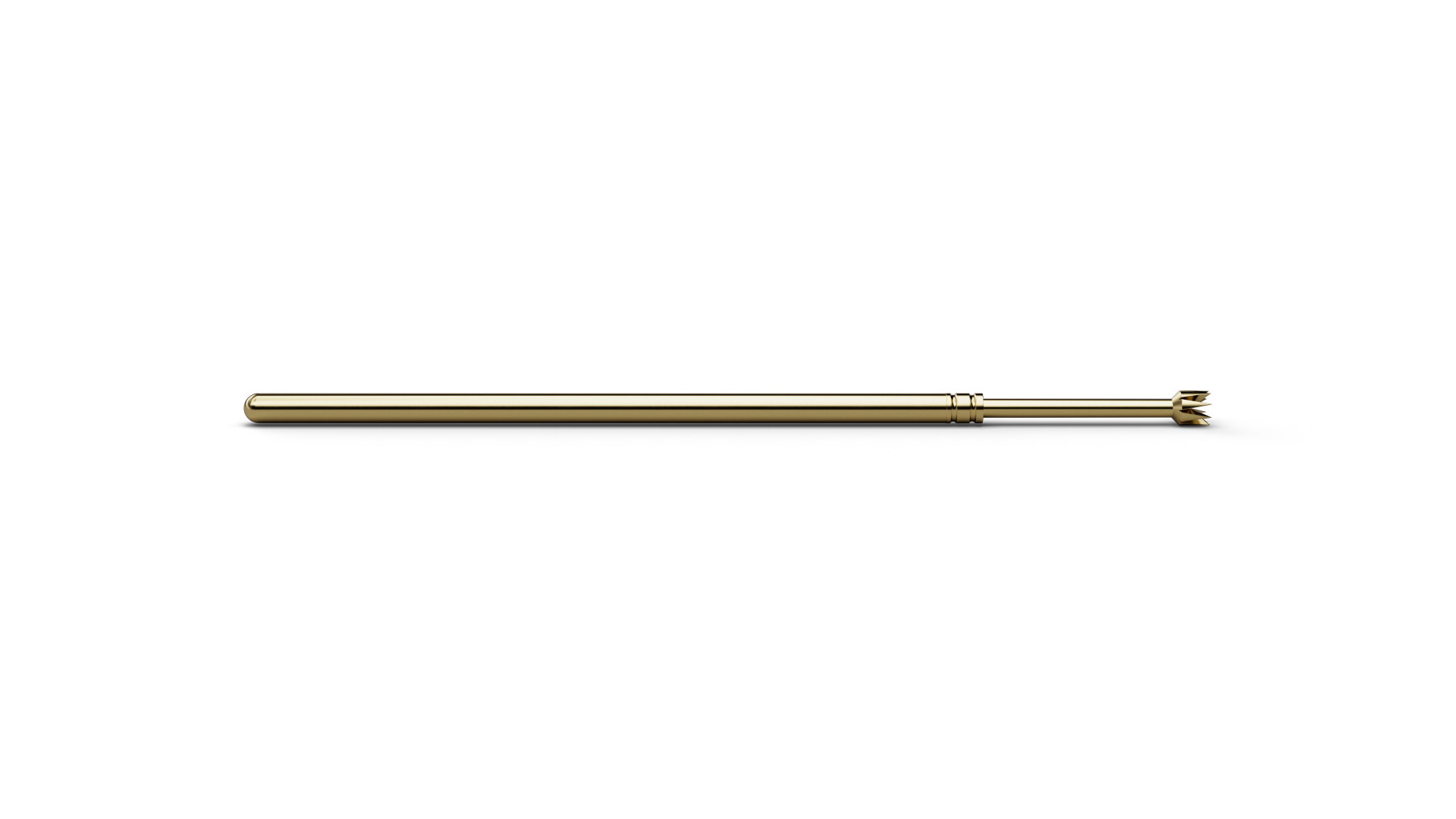

F07563S120P200HP (item number 1142453) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 63 (8-point crown stepped (self-cleaning)), F07563S120P200HP combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F07563S120P200HP combines a pitch of 1.9 mm / 75 mil with tip style 63 (8-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. F07563S120P200HP operates with 200 cN spring force and 4.3 mm nominal travel. F07563S120P200HP is specified for 4 A continuous current. On F07563S120P200HP, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
