기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | PS100 |
| 거리(mm/mil) | 2,54 / 100 |
| 치수 | |
|---|---|
| 전체 길이(mm) | 27.5 |
| 외경(mm) | 2.25 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Brass, Uncoated |
| 기계적 사양 | |
|---|---|
| 연결 | Stranded Wire |
Beschreibung des Produkts

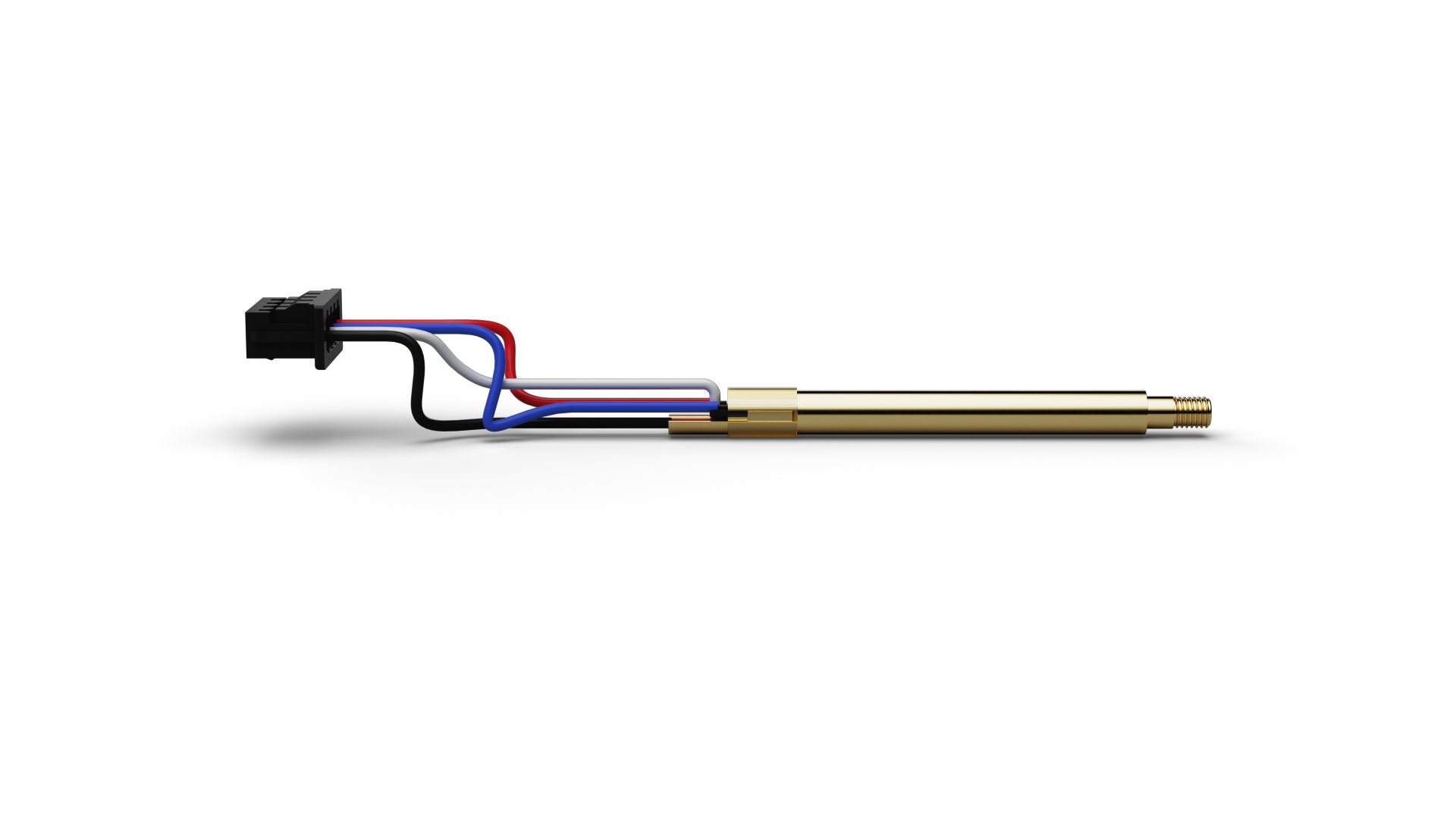

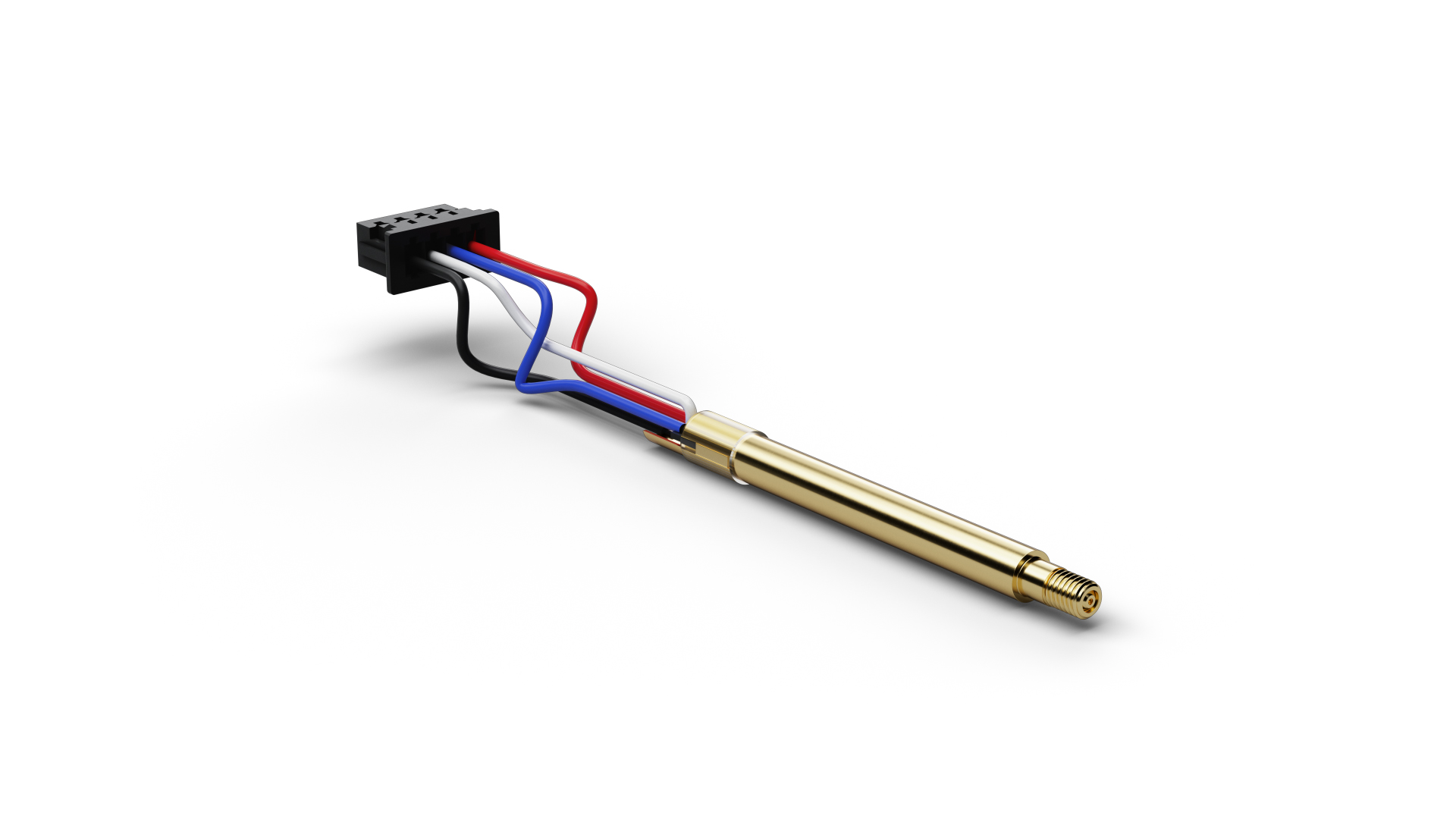

PS100F060R5.2S (item number 1146632) is a receptacle for a compatible Contact Probe. PS100F060R5.2S defines the installed position and supports controlled probe replacement during maintenance or product changes. A stranded wire is provided for the electrical connection. Key installation dimensions are outside diameter 2.25 mm, length 27.5 mm. The Receptacle PS100F060R5.2S is designed for a pitch of 2.54 mm / 100 mil. The Receptacle PS100F060R5.2S is made of brass and is uncoated.
