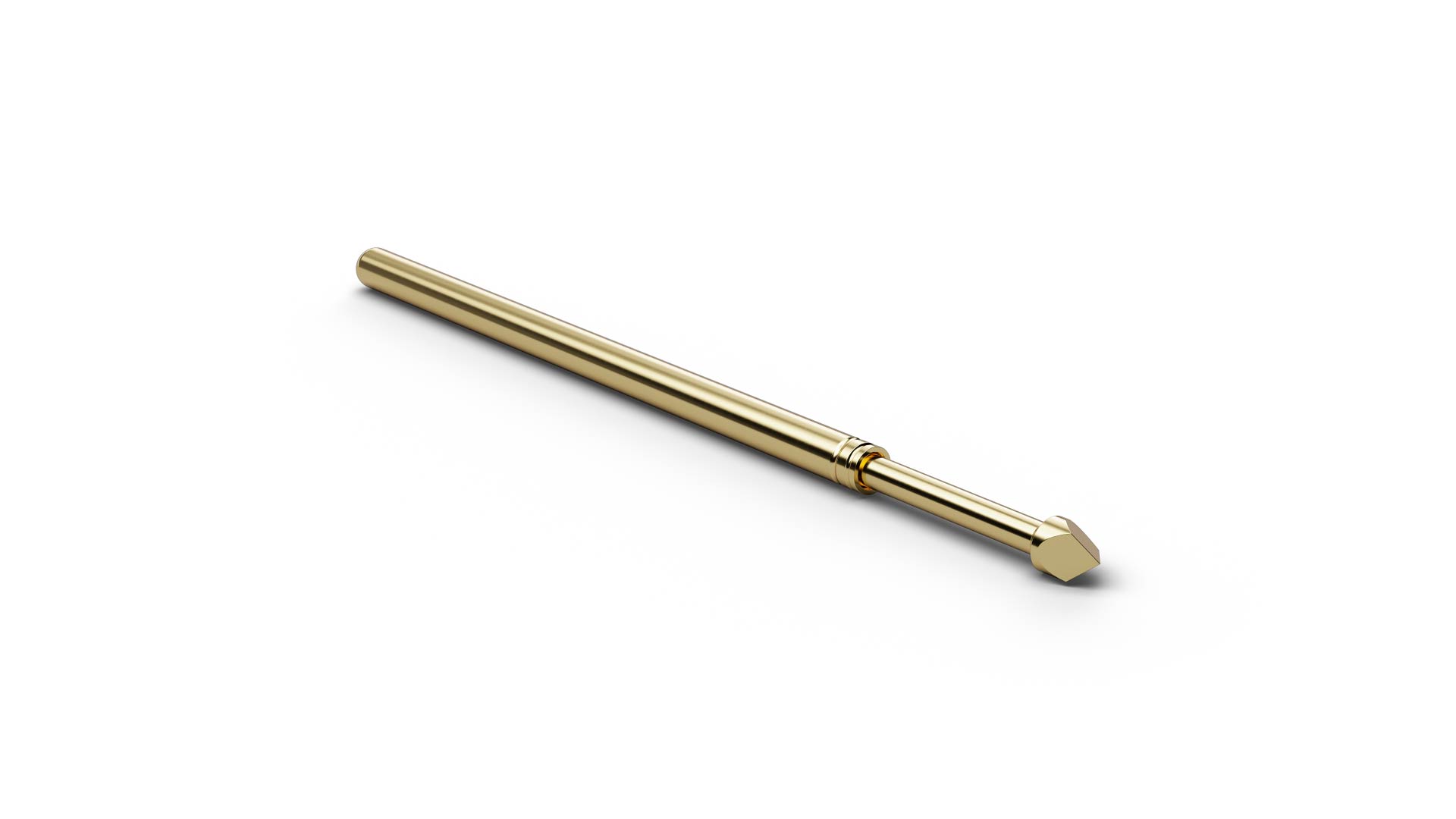

F10015S150L180 (item number 1167909) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 15 (Triangular 45° stepped), F10015S150L180 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10015S150L180 combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.5 mm. For F10015S150L180, spring force is 180 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10015S150L180 is 5 A.
