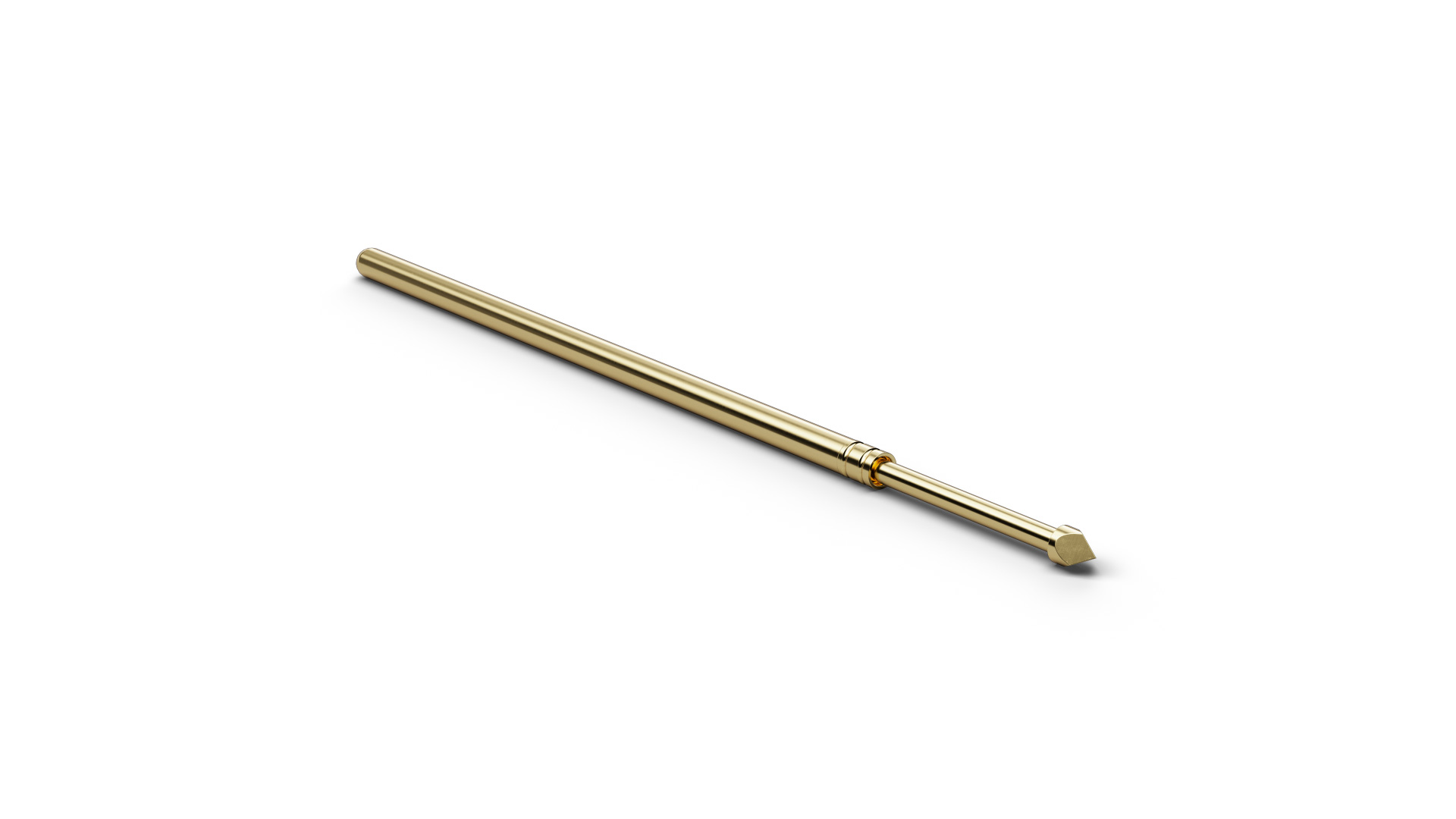

F07515S100L200 (item number 1168153) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 15 (Triangular 45° stepped), F07515S100L200 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. The design combines a pitch of 1.9 mm / 75 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1 mm. F07515S100L200 operates with 200 cN spring force and 4.3 mm nominal travel. For F07515S100L200, the specified continuous current is 4 A.
