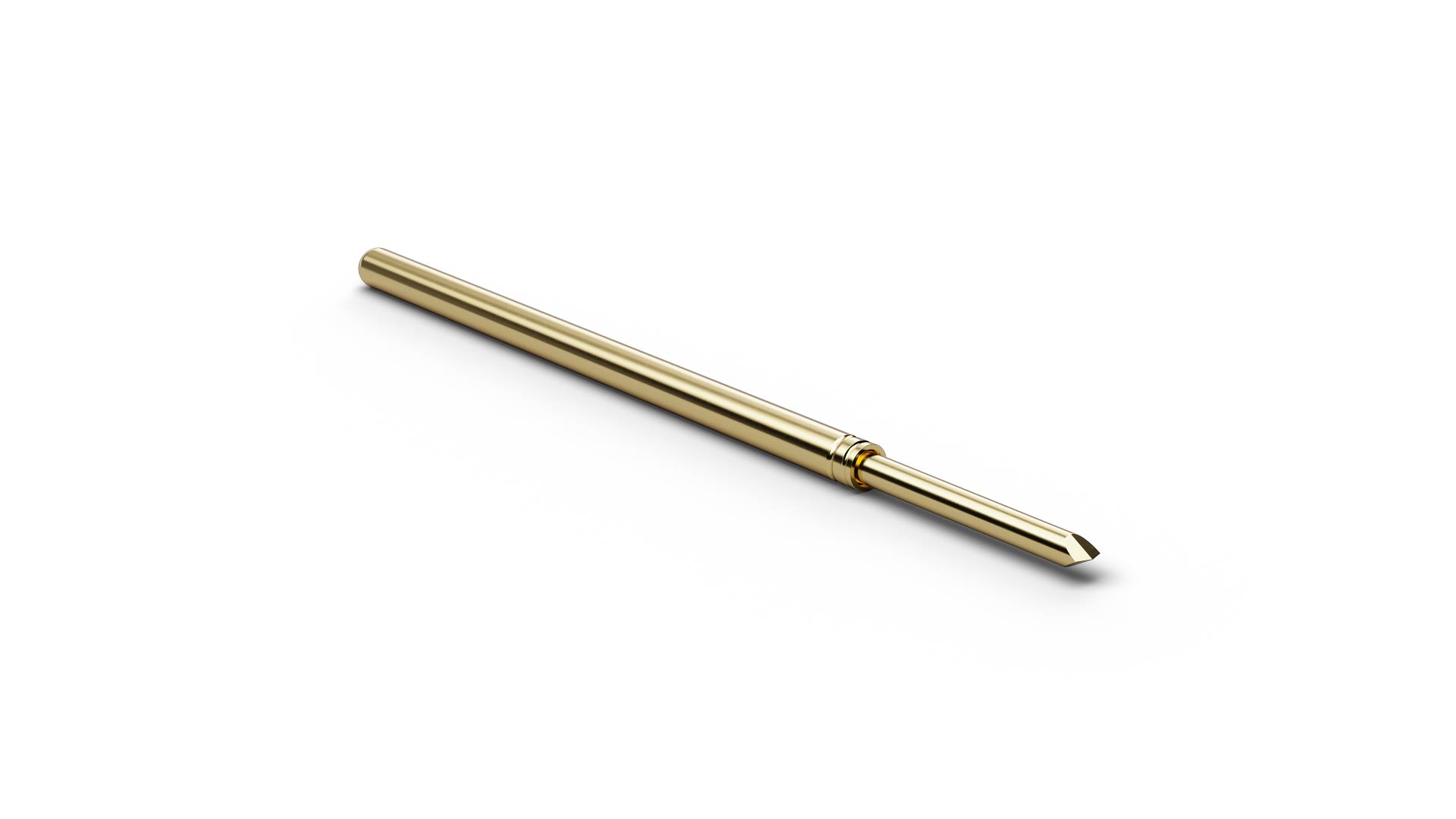

The Basic Contact Probe F10038S090L180 (item number 1168300) is designed for repeated contacting of test points in electronic test fixtures. With tip style 38 (Square lance 140°), F10038S090L180 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10038S090L180 combines a pitch of 2.54 mm / 100 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.9 mm. F10038S090L180 operates with 180 cN spring force and 4.3 mm nominal travel. The continuous-current rating of F10038S090L180 is 5 A.
