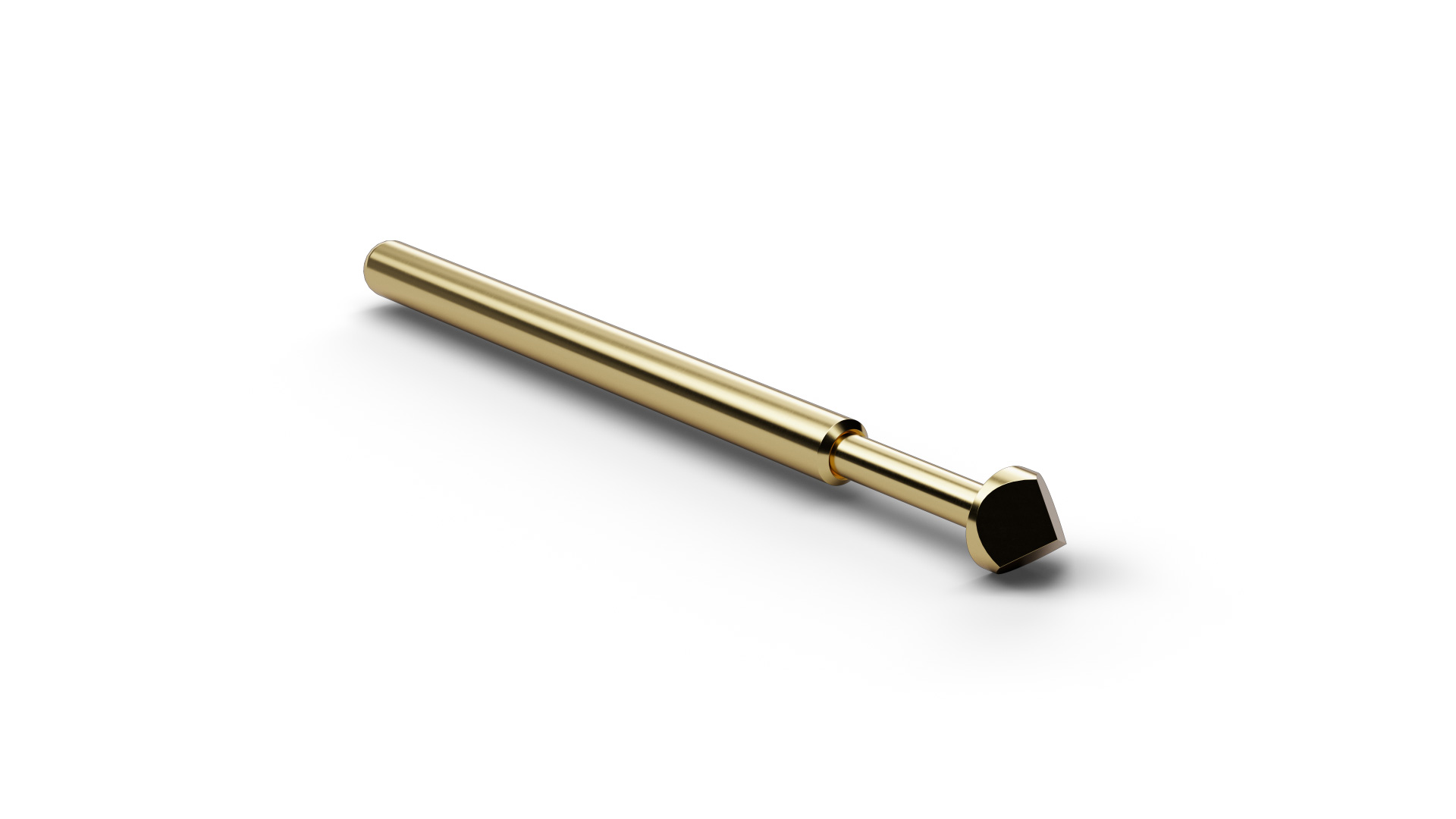

F56315B300G330 (item number 1169822) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 15 (Triangular 45° stepped), F56315B300G330 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F56315B300G330 combines a pitch of 3 mm / 118 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 3 mm. F56315B300G330 operates with 330 cN spring force and 4.3 mm nominal travel. The continuous-current rating of F56315B300G330 is 6 A.
