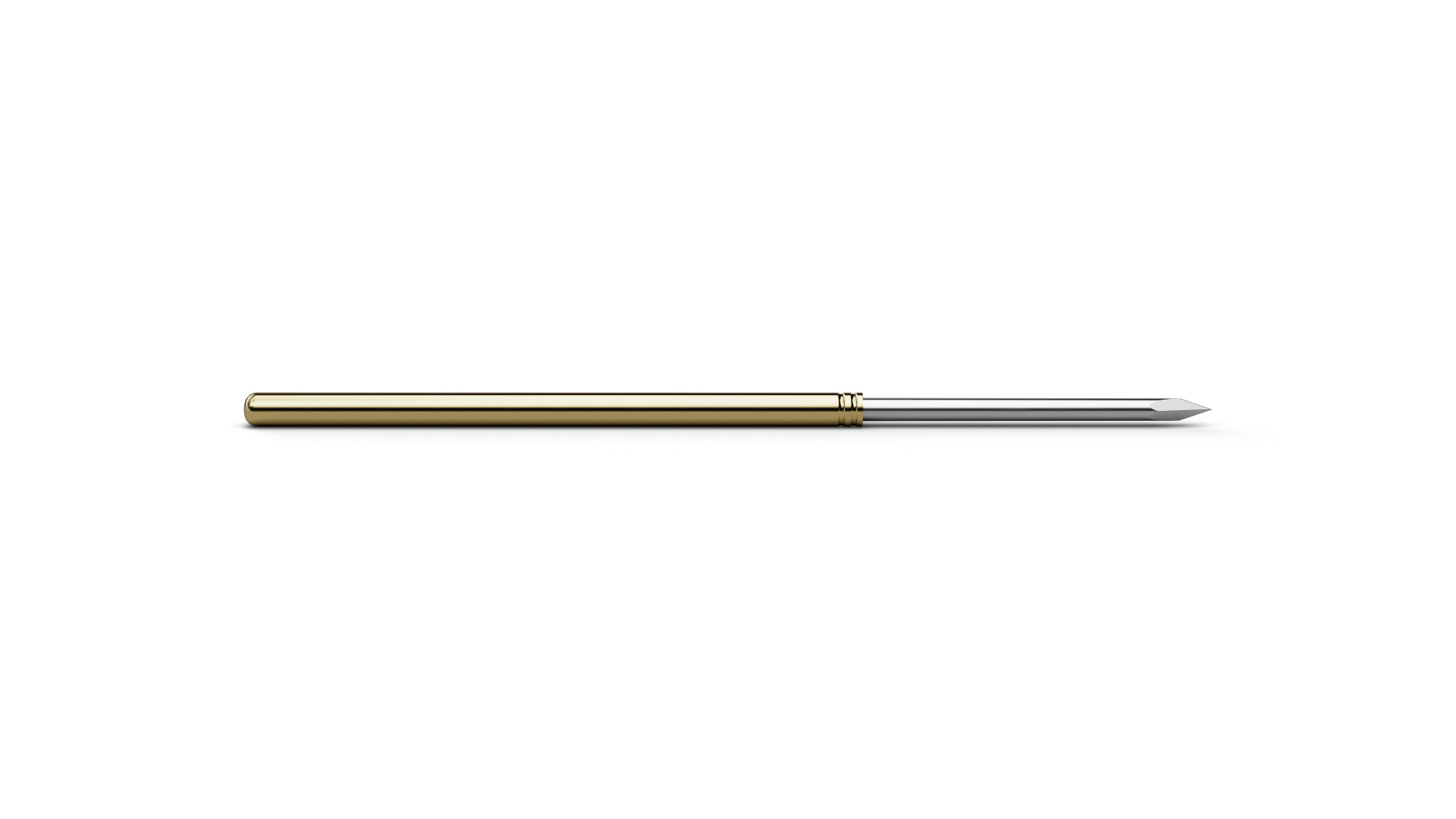

The Basic Contact Probe F58833S090P280HP (item number 1170012) is designed for repeated contacting of test points in electronic test fixtures. With tip style 33 (Square lance 38°), F58833S090P280HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F58833S090P280HP combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. Spring force is 280 cN at a nominal travel of 9.3 mm. F58833S090P280HP is specified for 5 A continuous current. On F58833S090P280HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
