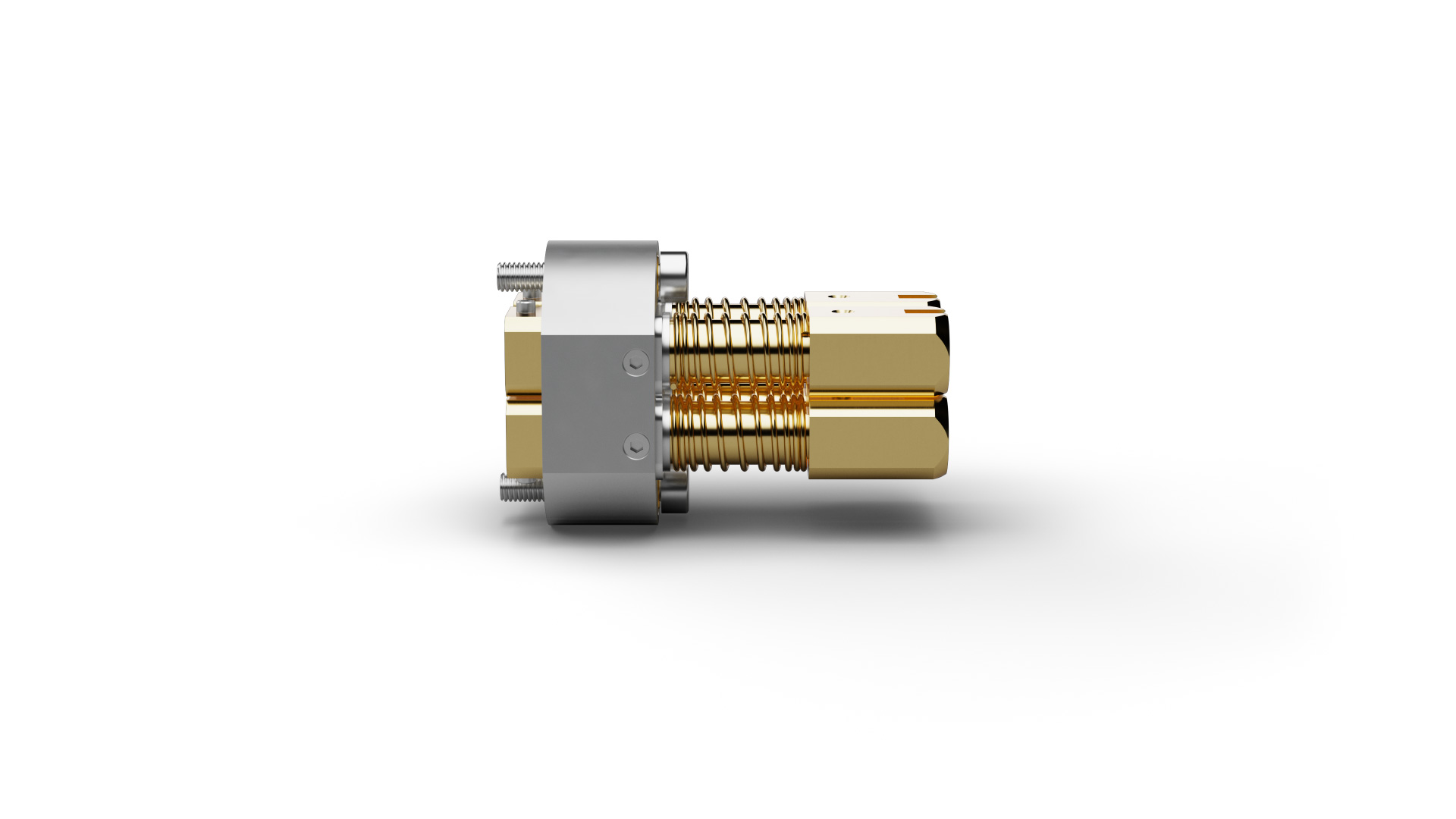

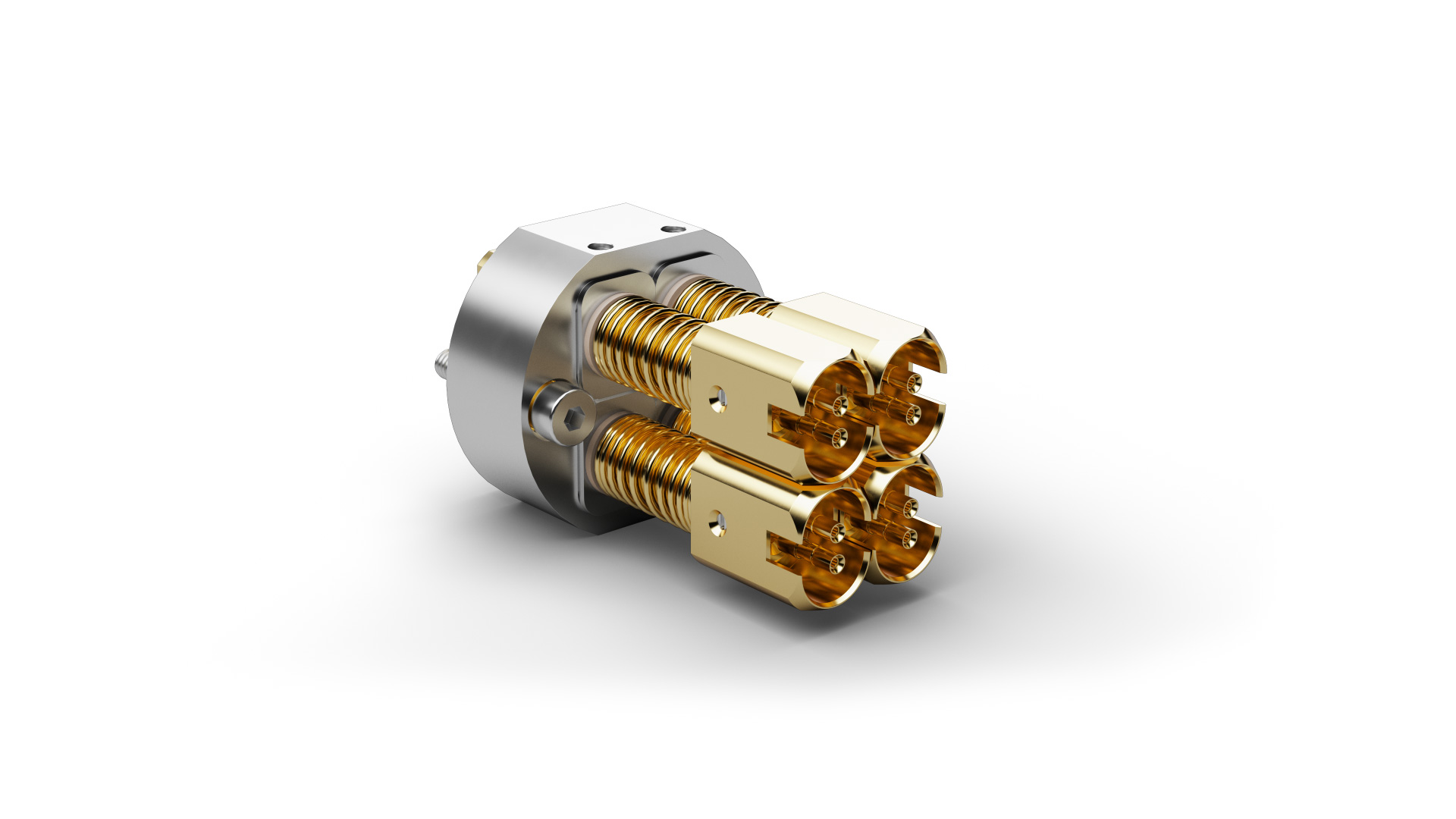

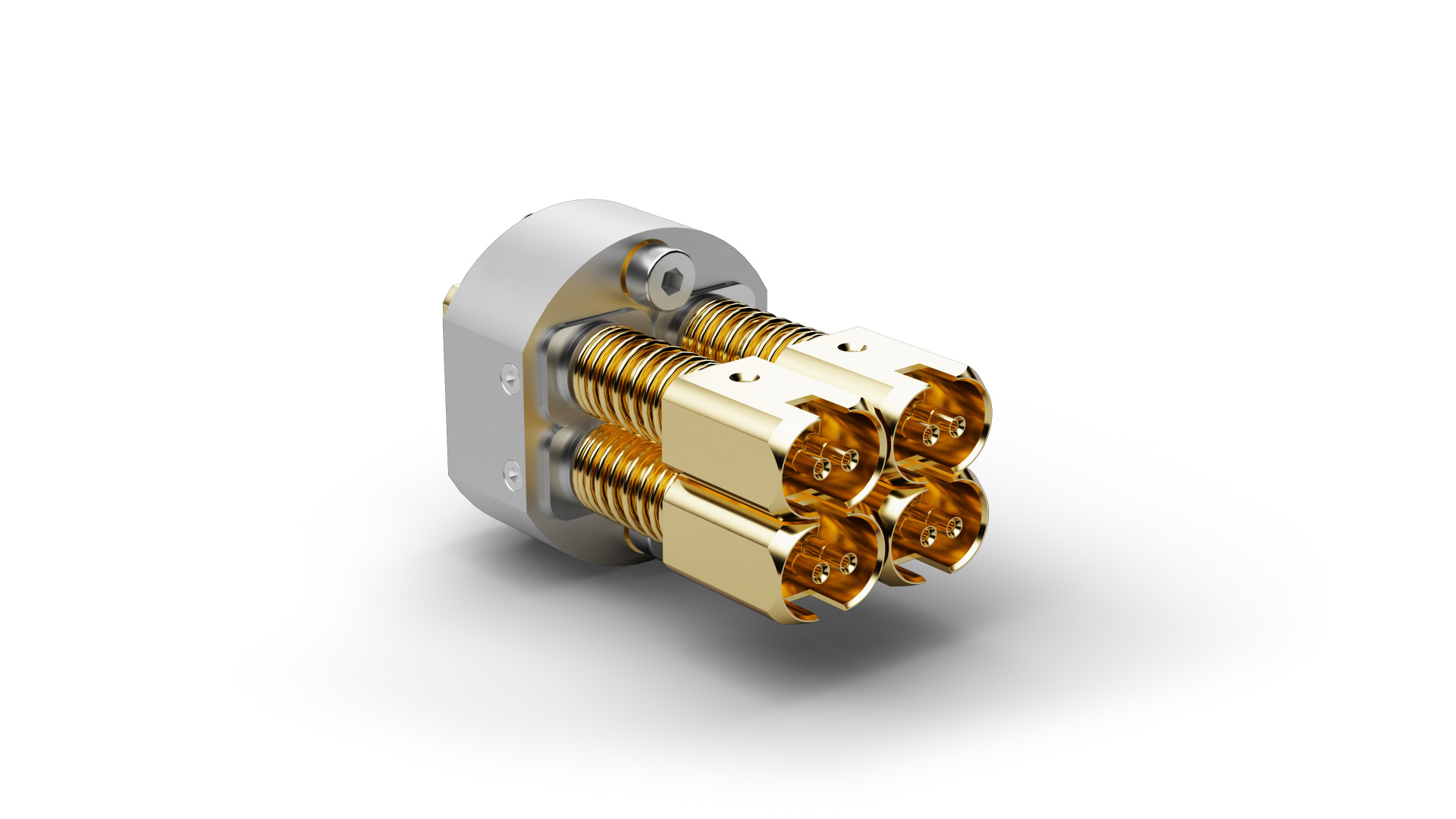

The High Frequency Probe HF77HMTDm0420G3000HMTDmF (item number 1170427) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 100 Ω, HF77HMTDm0420G3000HMTDmF supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range extends up to 20 GHz, and this version is intended for contacting H-MTD-male (quad) connectors. On HF77HMTDm0420G3000HMTDmF, spring forces of 600 cN on the outer contact and 75 cN on the inner contact provide defined mechanical contacting.
