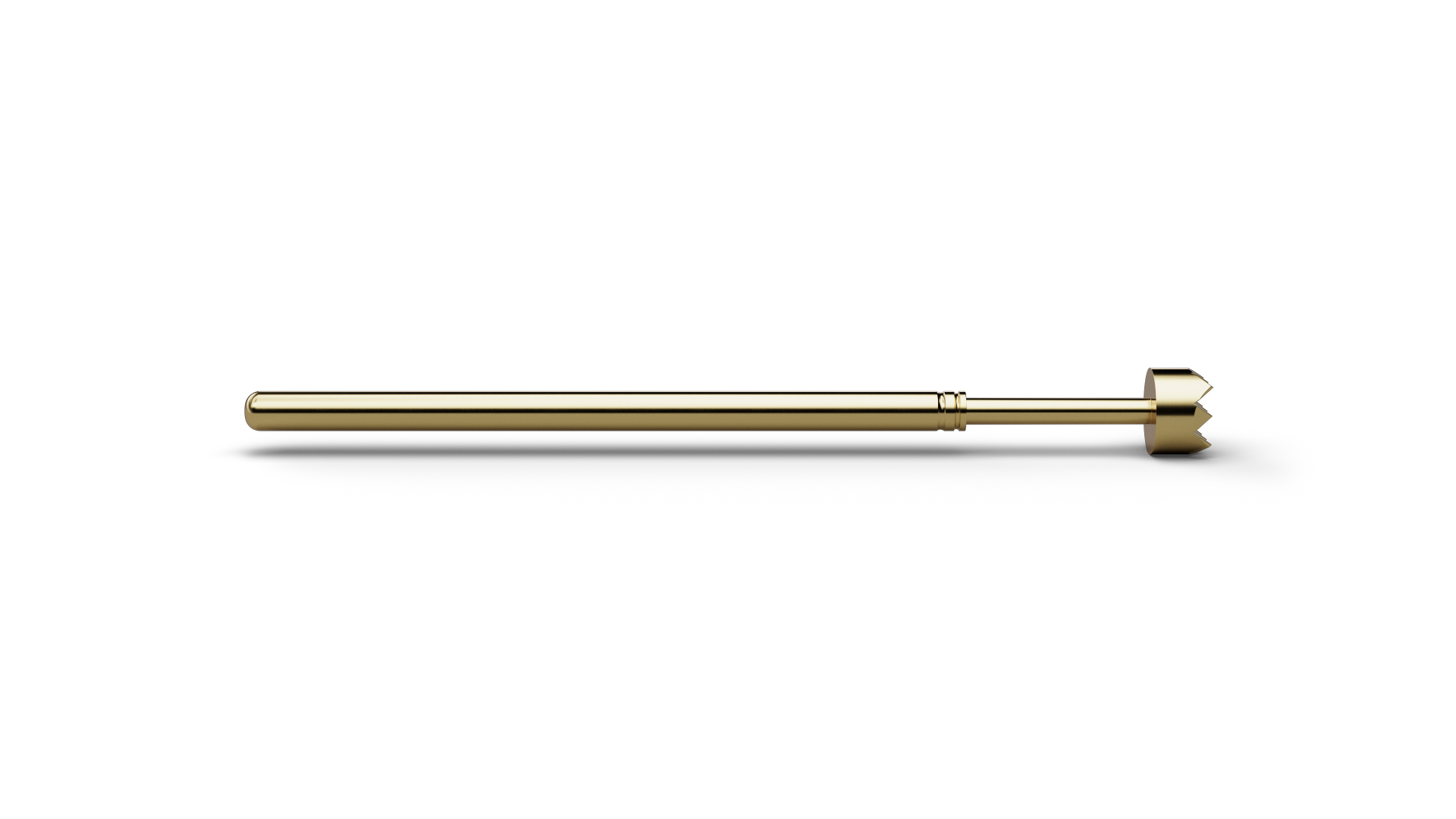

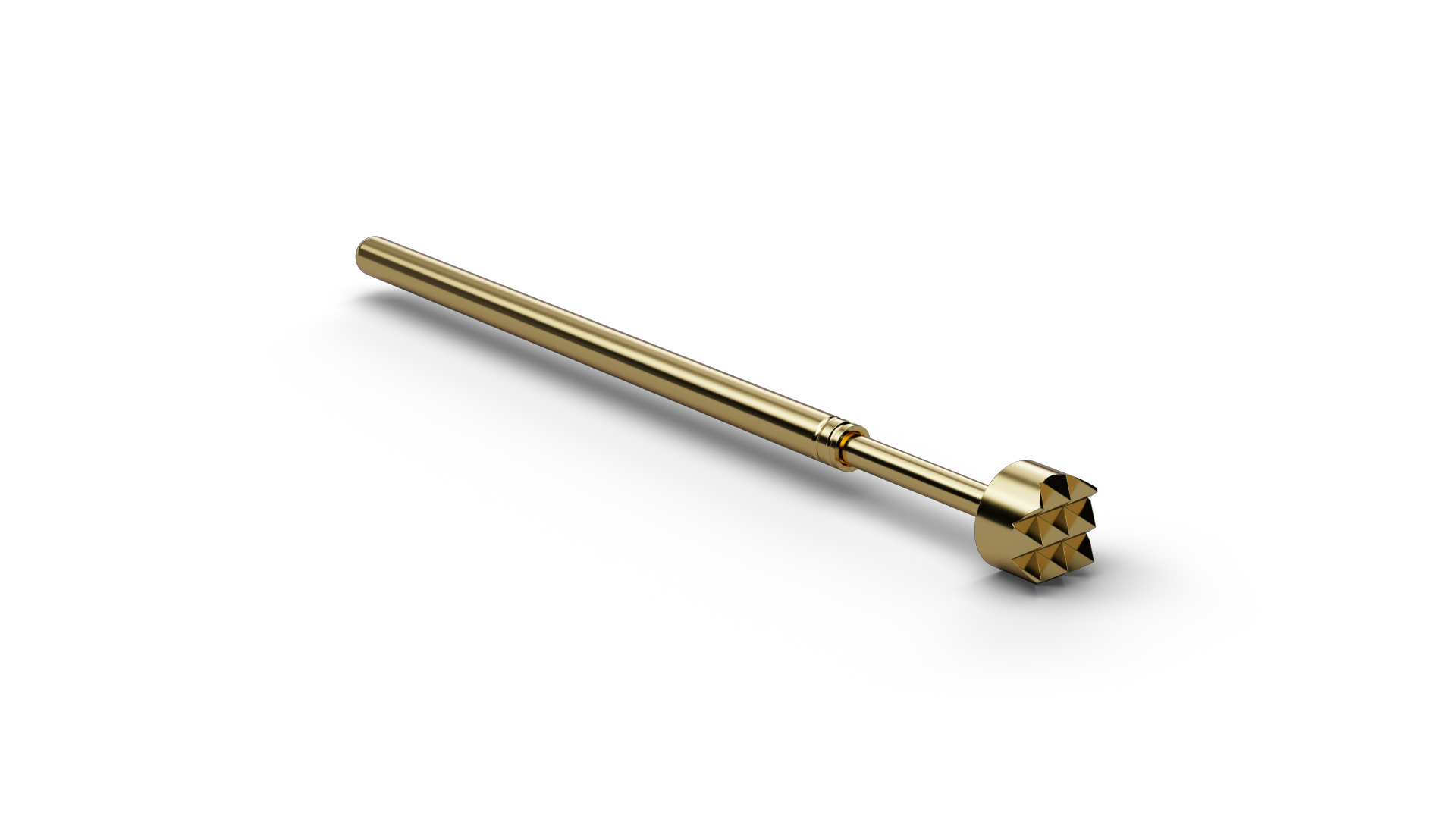

F10006B300G060 (item number 1172550) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 06 (Serrated stepped), F10006B300G060 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F10006B300G060 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 3 mm. For F10006B300G060, spring force is 60 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10006B300G060 is 5 A.
