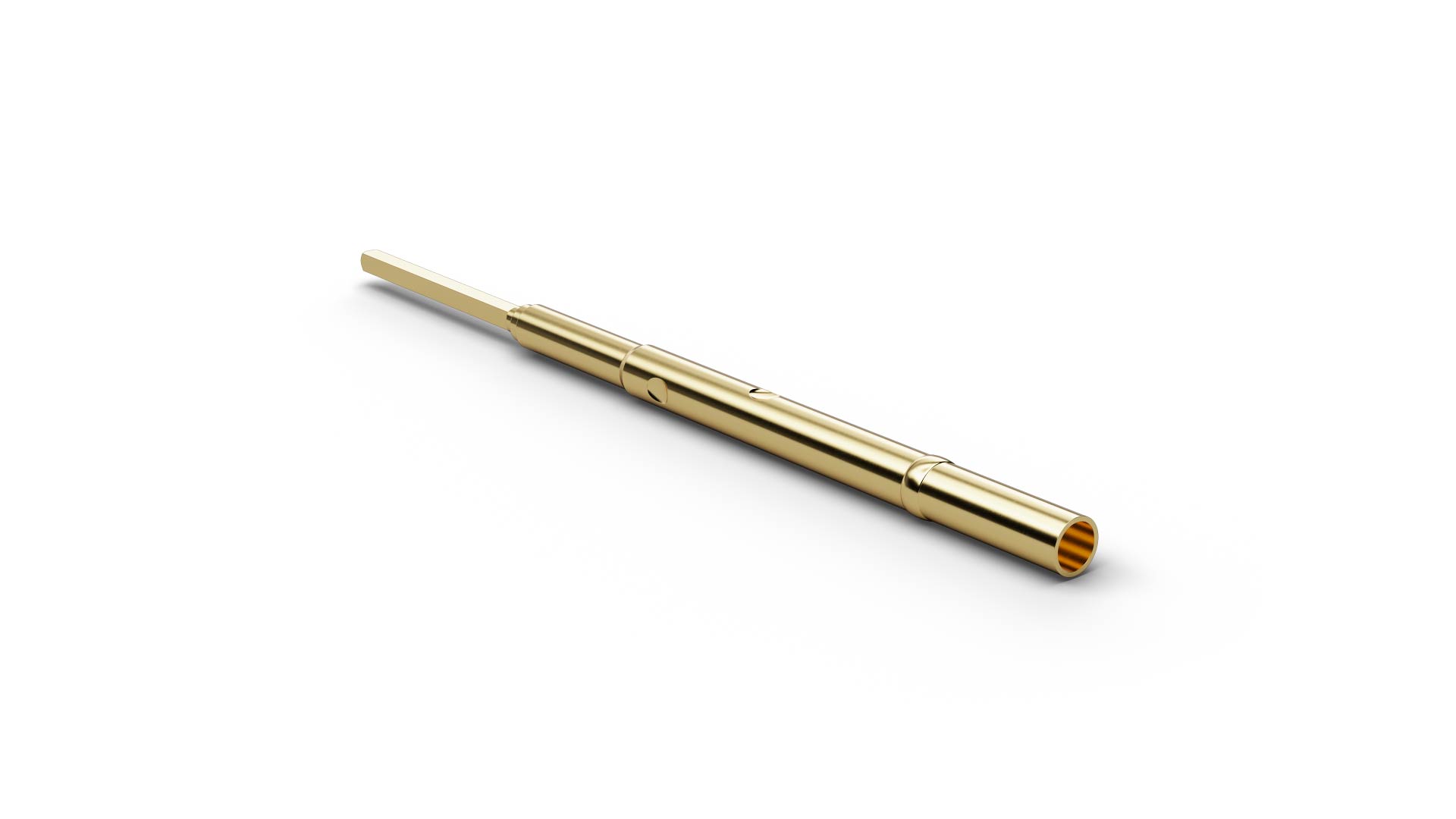

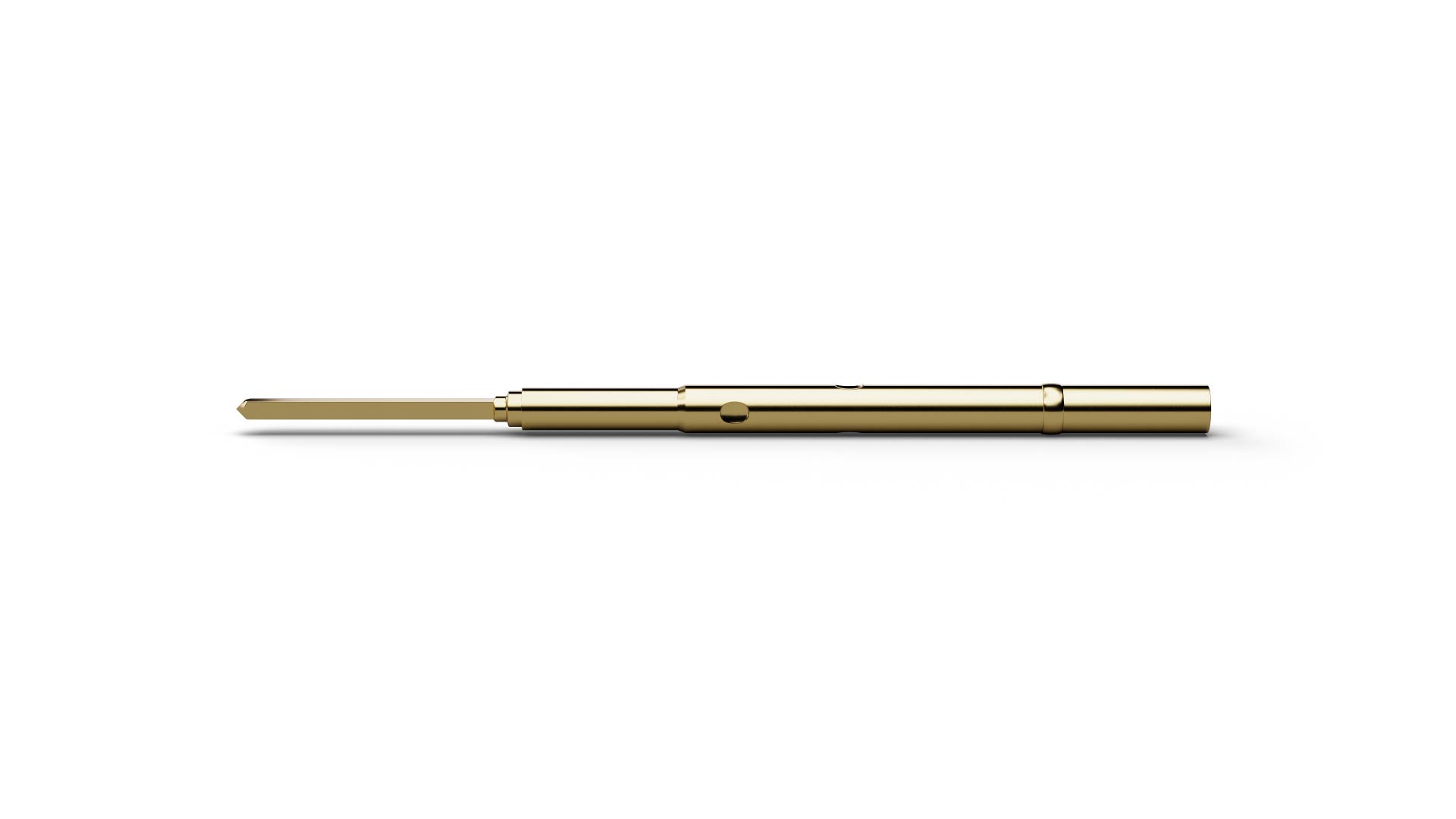

As a receptacle, H502WW (item number 1001702) supports precise positioning of the compatible Basic Contact Probe within the contacting system. As a Receptacle, H502WW guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data includes pitch 2.54 mm / 100 mil, outside diameter 1.68 mm, length 33.9 mm, connection type wire-wrap connection. When selecting H502WW, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
