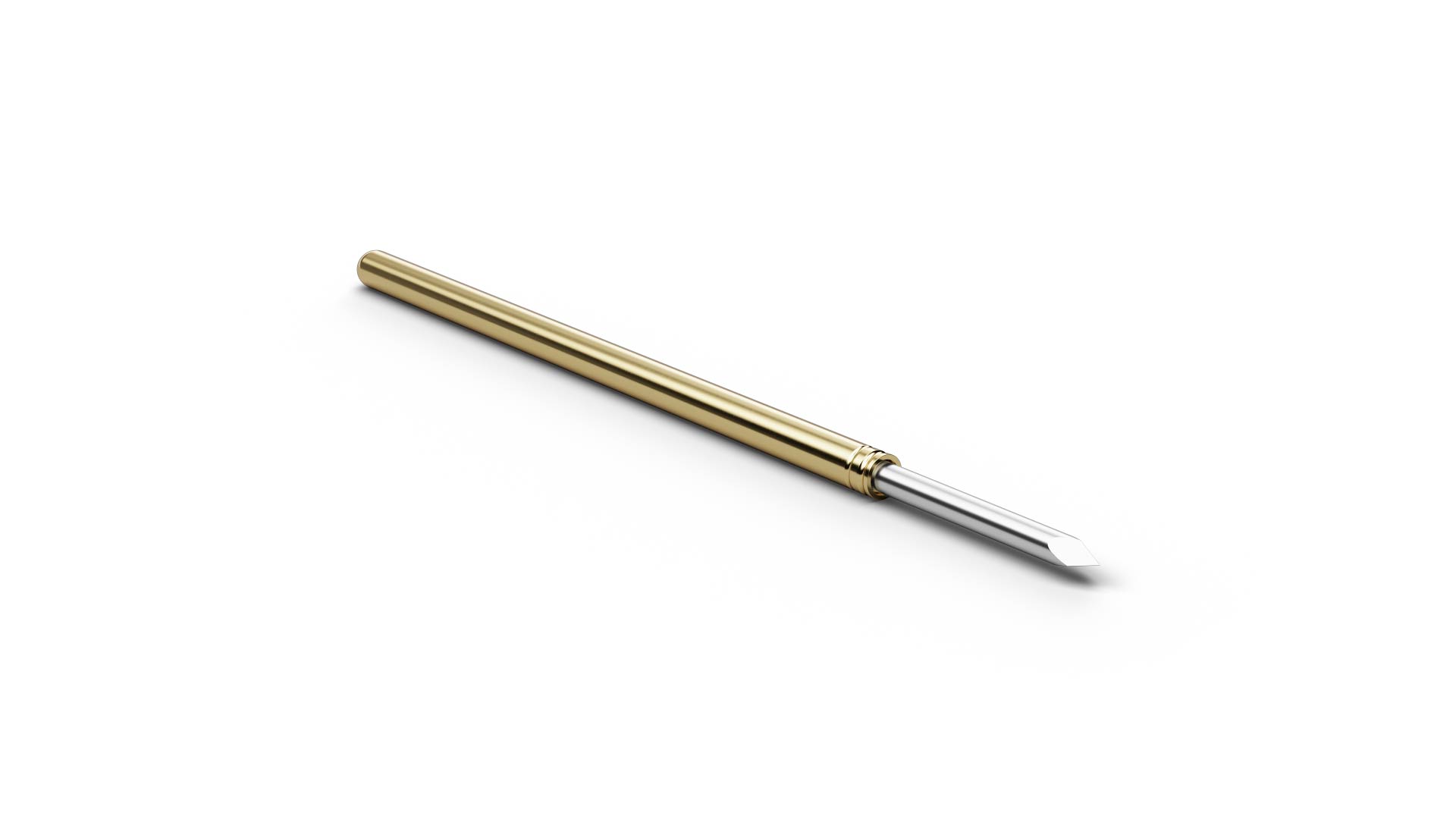

F10062S090P300HPL (item number 1010325) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 62 (Triangular 30°), F10062S090P300HPL combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10062S090P300HPL combines a pitch of 2.54 mm / 100 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.9 mm. For F10062S090P300HPL, spring force is 300 cN at a nominal travel of 4.3 mm. F10062S090P300HPL is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. On F10062S090P300HPL, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
