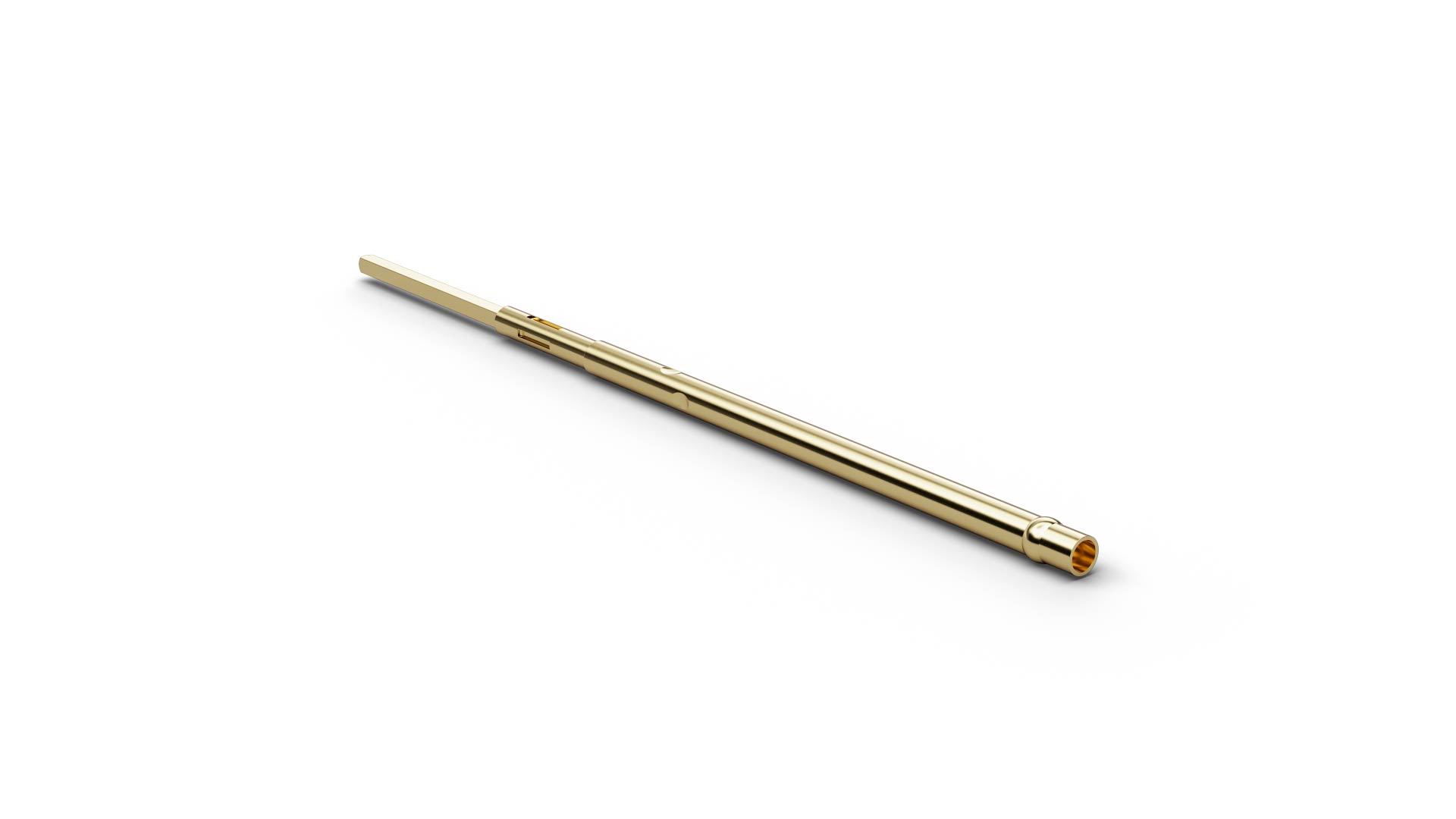

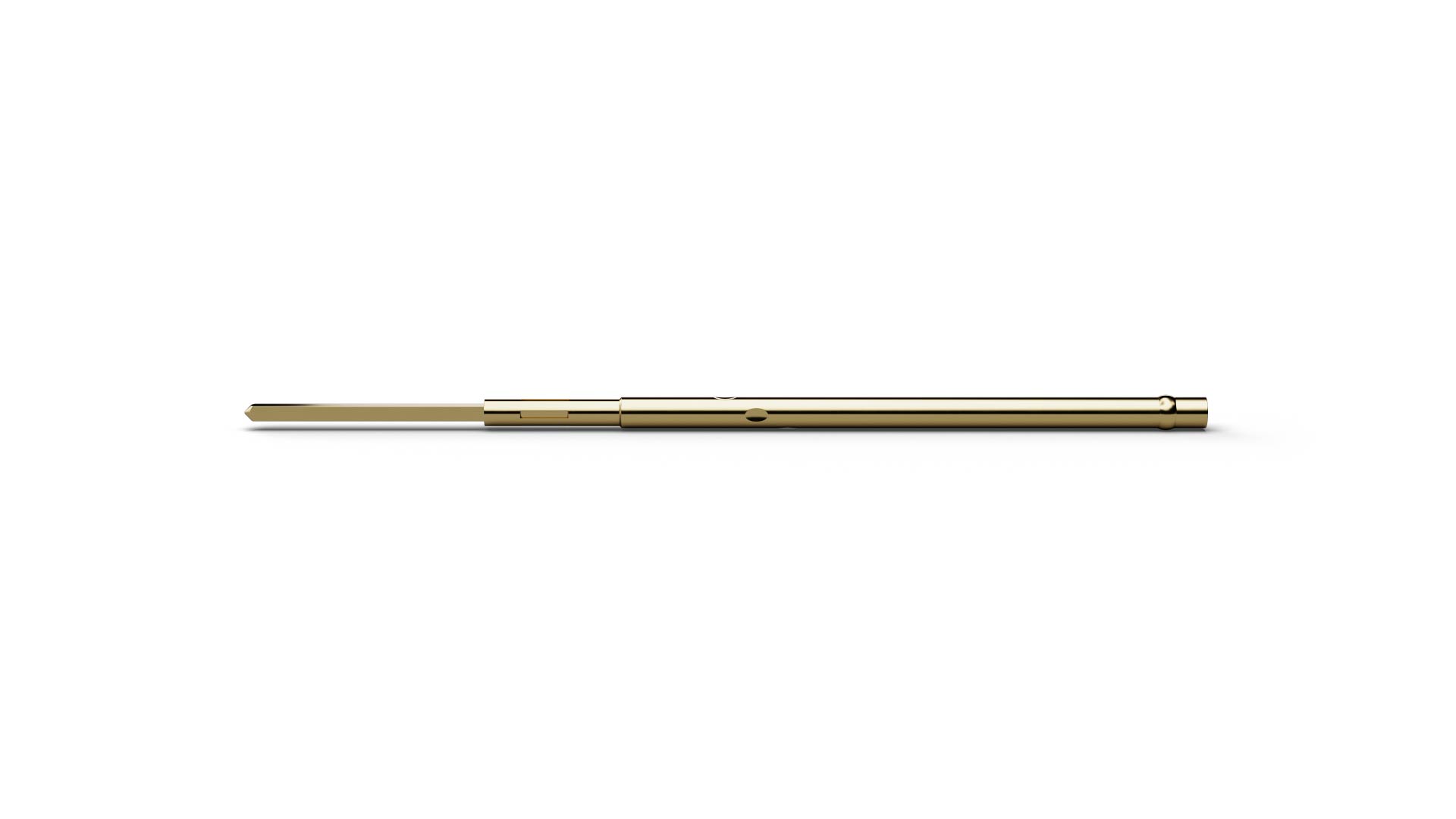

H075WW10-2.0 (item number 1010827) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H075WW10-2.0 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data for H075WW10-2.0 includes pitch 1.9 mm / 75 mil, outside diameter 1.3 mm, length 40 mm, connection type wire-wrap connection. When selecting H075WW10-2.0, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
