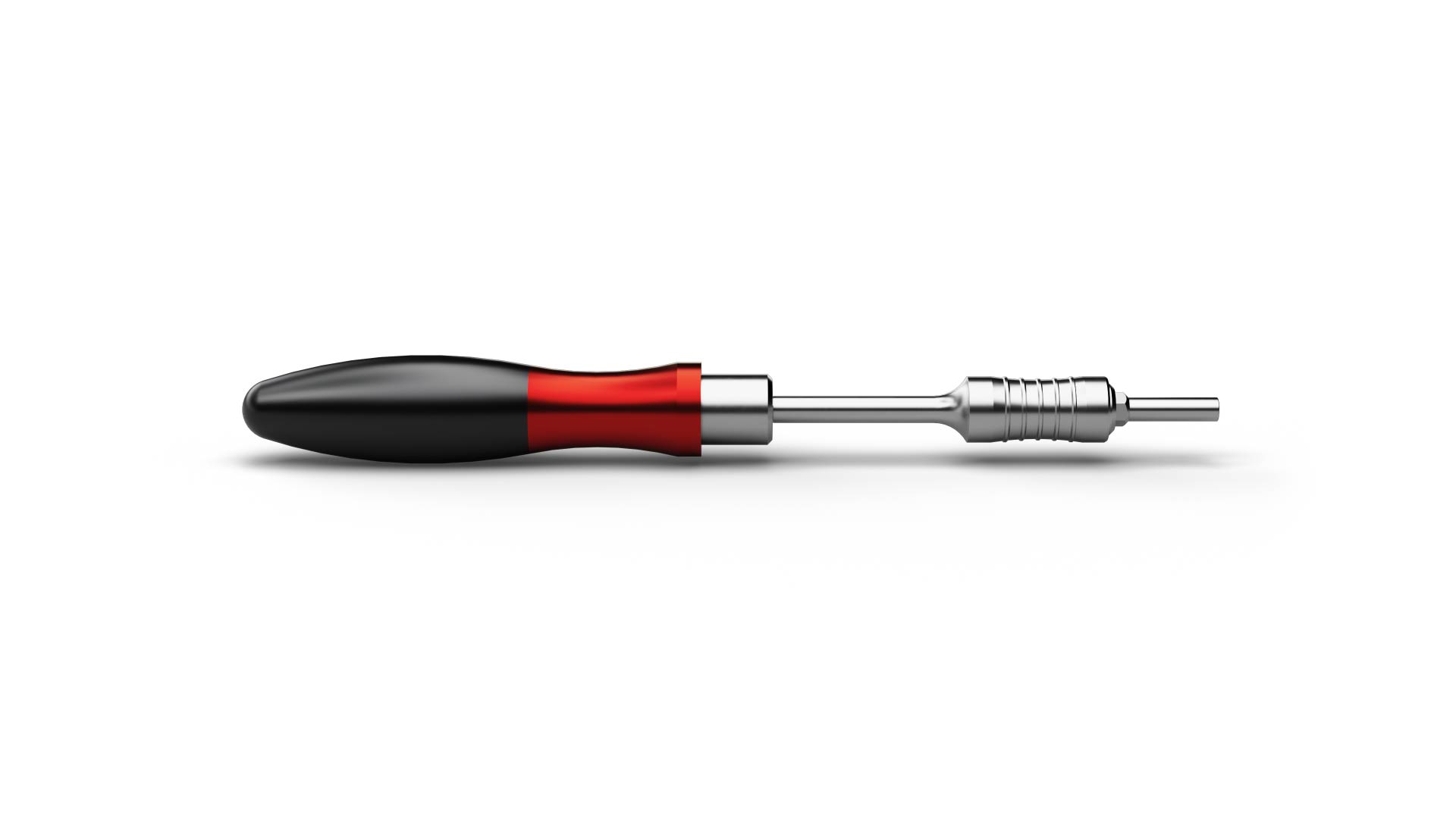

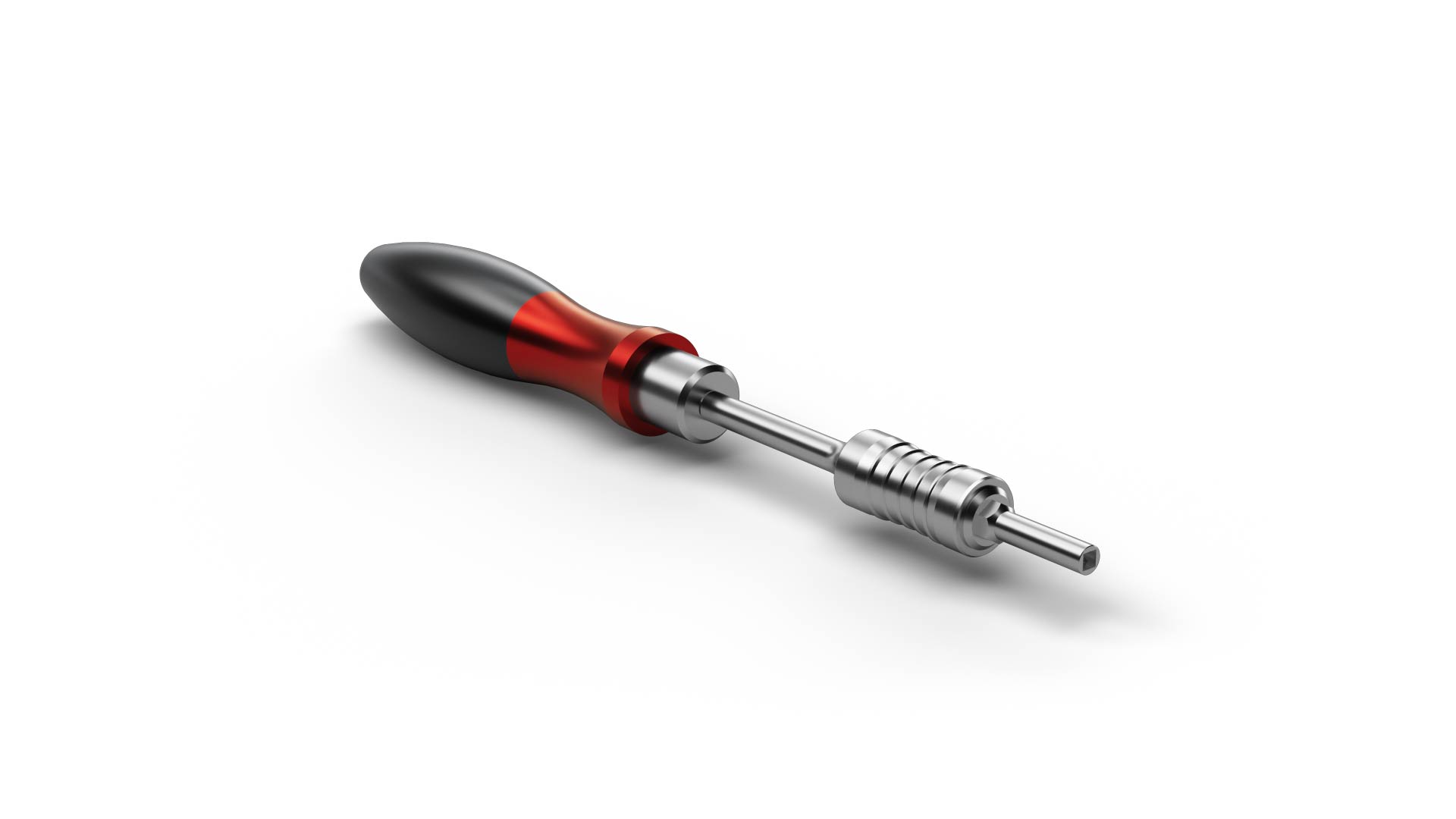

FWZ733S2T (item number 1029814) is an assembly tool for Contact Probes and Receptacles or related test components. FWZ733S2T is matched to installation or maintenance of the corresponding probes and receptacles and supports controlled handling of the contacting components. FWZ733S2T supports precise assembly, adjustment or maintenance of the associated contacting components. For handling, the relevant data includes tool type FWZ733, tool interface Steckschlüssel, tool size 3 mm, length 100 mm, outside diameter 4.8 mm, insertion depth 22 mm, torque 15 Ncm. The geometry of FWZ733S2T is matched to controlled assembly and helps reduce the risk of damage to the Contact Probe, Receptacle or test fixture.
