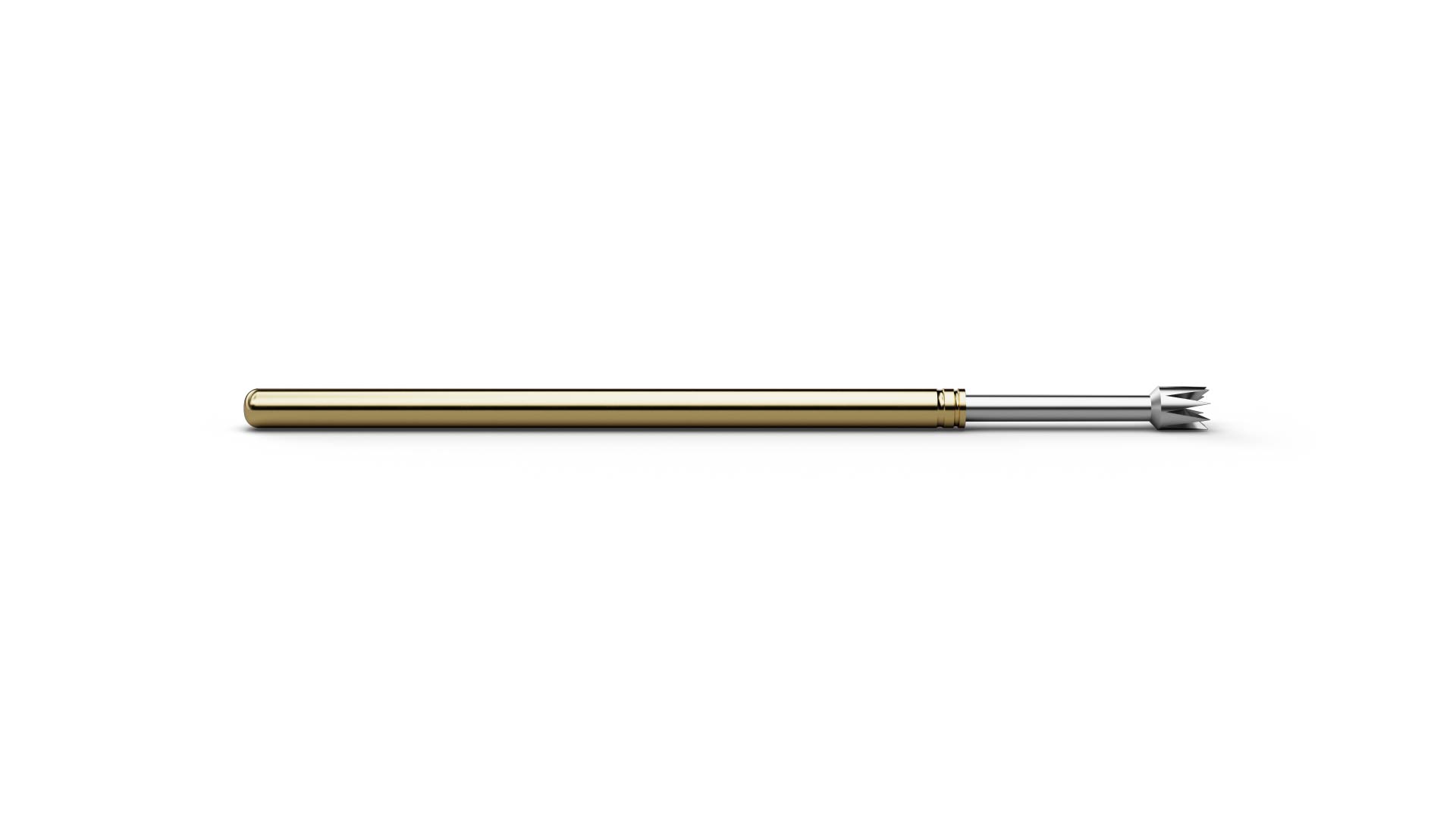

As a Basic Contact Probe, F10063B150P200HP (item number 1142414) establishes a spring-loaded electrical connection to the test point. With tip style 63 (8-point crown stepped (self-cleaning)), F10063B150P200HP combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F10063B150P200HP combines a pitch of 2.54 mm / 100 mil with tip style 63 (8-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. F10063B150P200HP operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F10063B150P200HP combines 5 A continuous current with 40 mΩ typical contact resistance. For demanding test points, F10063B150P200HP combines functional Progressive Coating with the higher preload of the HP spring, supporting reliable contact on OSP surfaces and areas affected by flux or contamination.
