Dữ liệu kỹ thuật
| Thông tin chung | |
|---|---|
| Loại/dòng sản phẩm | HCF772 |
| Bước (mm/mil) | 2,54 / 100 |
| Kích thước | |
|---|---|
| Tổng chiều dài (mm) | 30 |
| Đường kính ngoài (mm) | 2 |
| Chiều cao cổ (mm) | 0.2 |
| Vật liệu và bề mặt | |
|---|---|
| Vật liệu, Lớp phủ | Nickel silver, Gold |
| Thông số kỹ thuật cơ khí | |
|---|---|
| Kết nối | Solder Connection |
Đồ họa
Beschreibung des Produkts

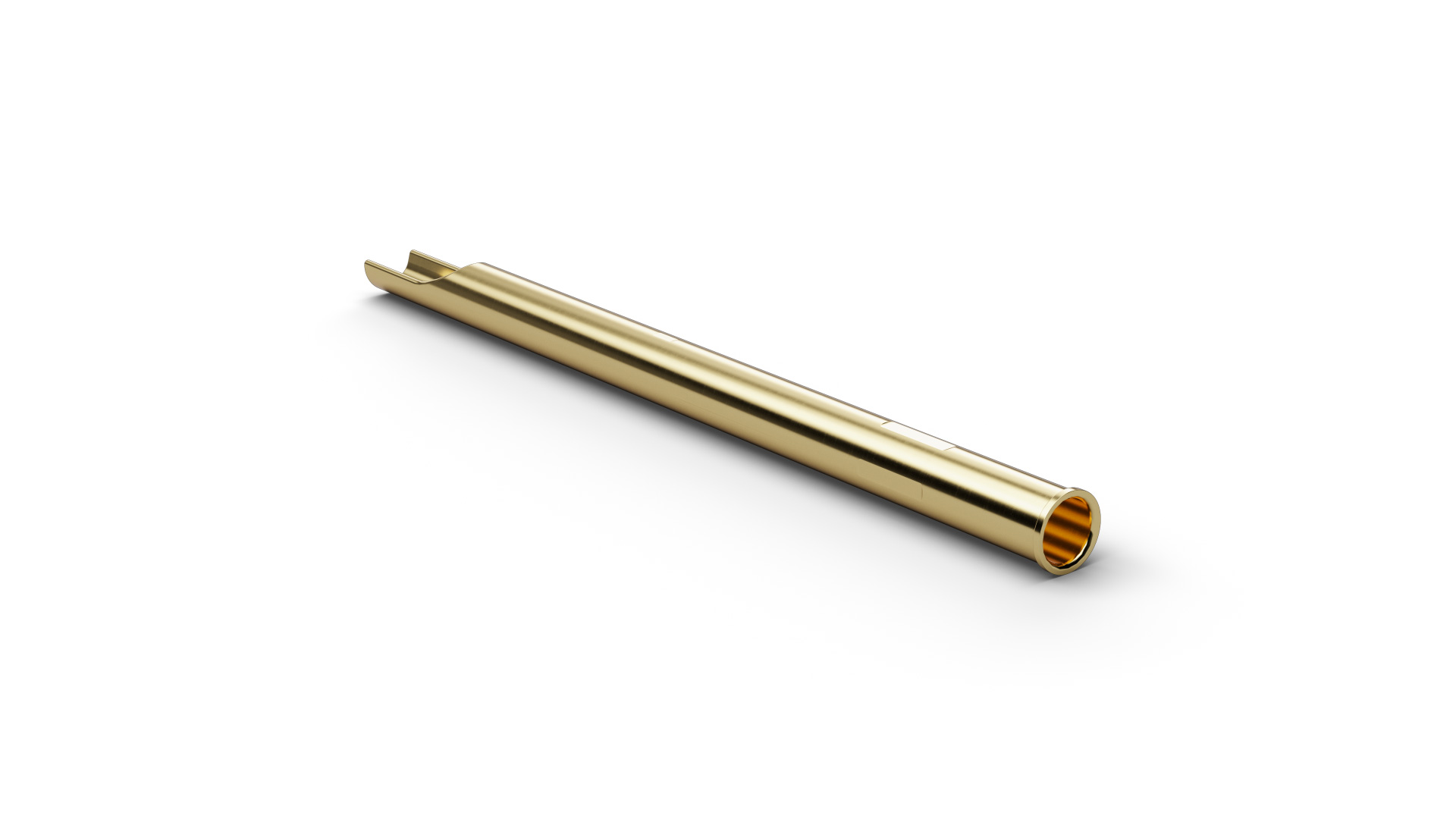

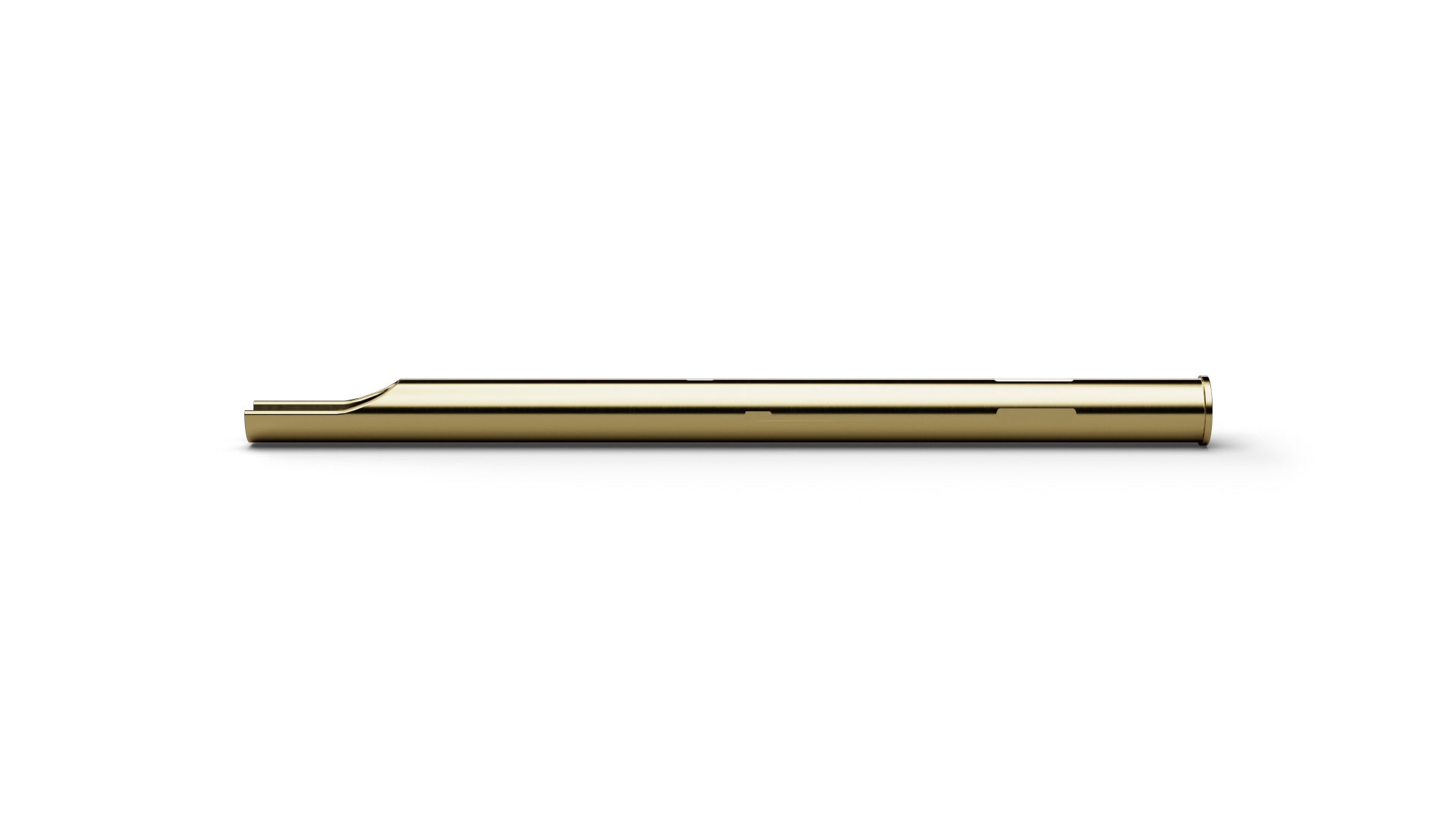

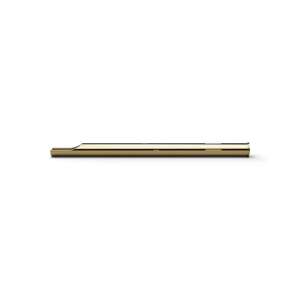

As a receptacle for a compatible Contact Probe, H772LAL30 (item number 1166817) provides mechanical guidance and positioning within the test fixture or contacting module. The electrical connection of H772LAL30 uses a solder connection. Key installation dimensions are outside diameter 2 mm, length 30 mm. The Receptacle H772LAL30 is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H772LAL30 is made of nickel silver and is gold-plated.
