Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F772 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Definición adicional | EXX |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 37 |
| Altura sobresaliente (mm) | 15 |
| Diámetro del estilo de punta (mm) | 2 |
| Diámetro del casquillo (mm) | 1.66 |
| Diámetro del collar (mm) | 2.04 |
| Diámetro del anillo de presión (mm) | 2.04 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Nickel silver |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 20 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 25 |
Gráficos
Beschreibung des Produkts

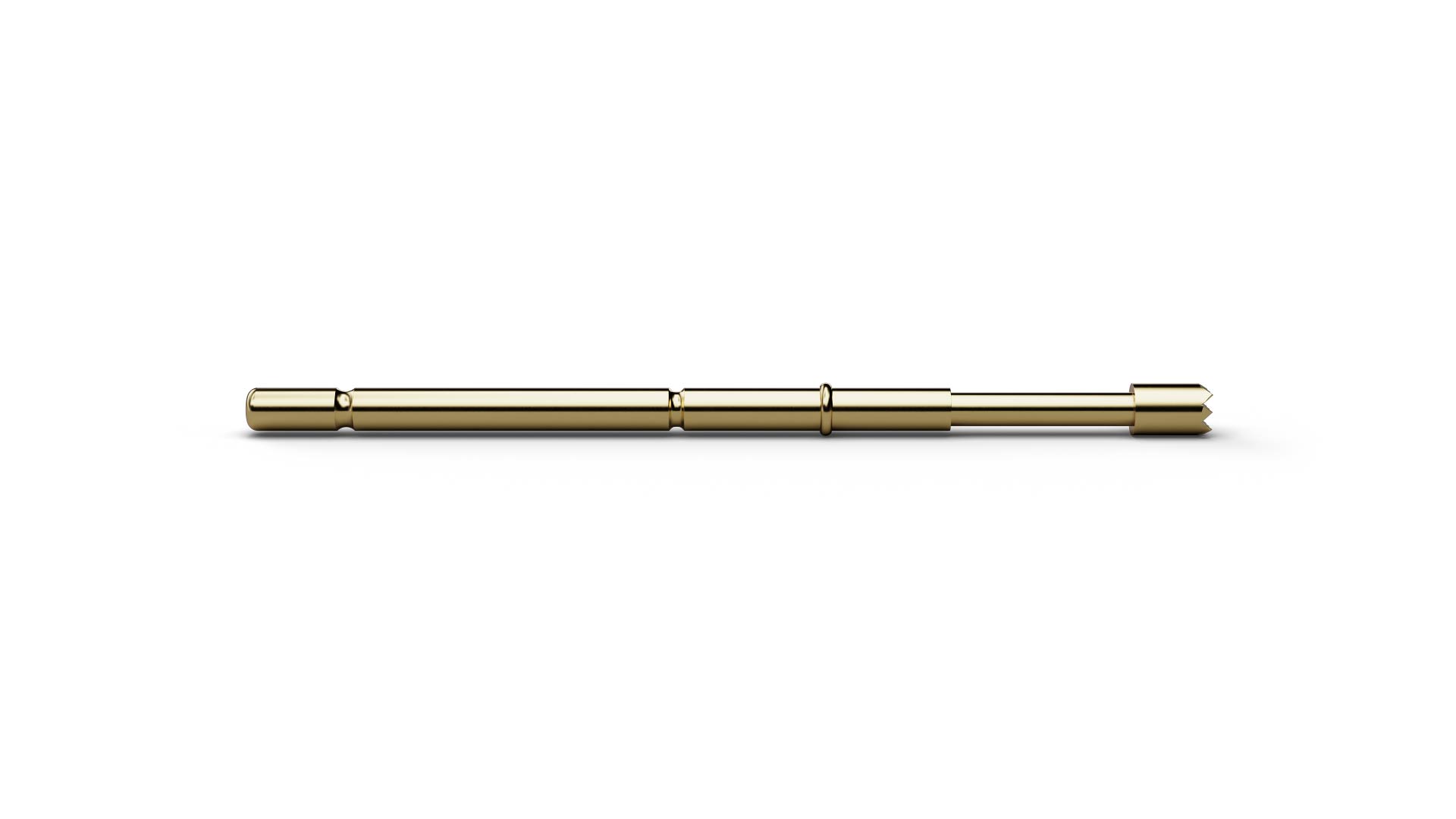

F77206B200G150E15 (item number 1008918) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 06 (Serrated stepped), F77206B200G150E15 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77206B200G150E15 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm. F77206B200G150E15 operates with 150 cN spring force and 4 mm nominal travel. F77206B200G150E15 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F77206B200G150E15 is made of beryllium copper and is gold-plated.
