Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F075HP |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+80°C |
| Definición adicional | HPL |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 35.1 |
| Altura sobresaliente (mm) | 10.2 |
| Diámetro del estilo de punta (mm) | 0.64 |
| Diámetro del casquillo (mm) | 1.02 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 62 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Progressive |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 120 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 40 |
Gráficos
Beschreibung des Produkts

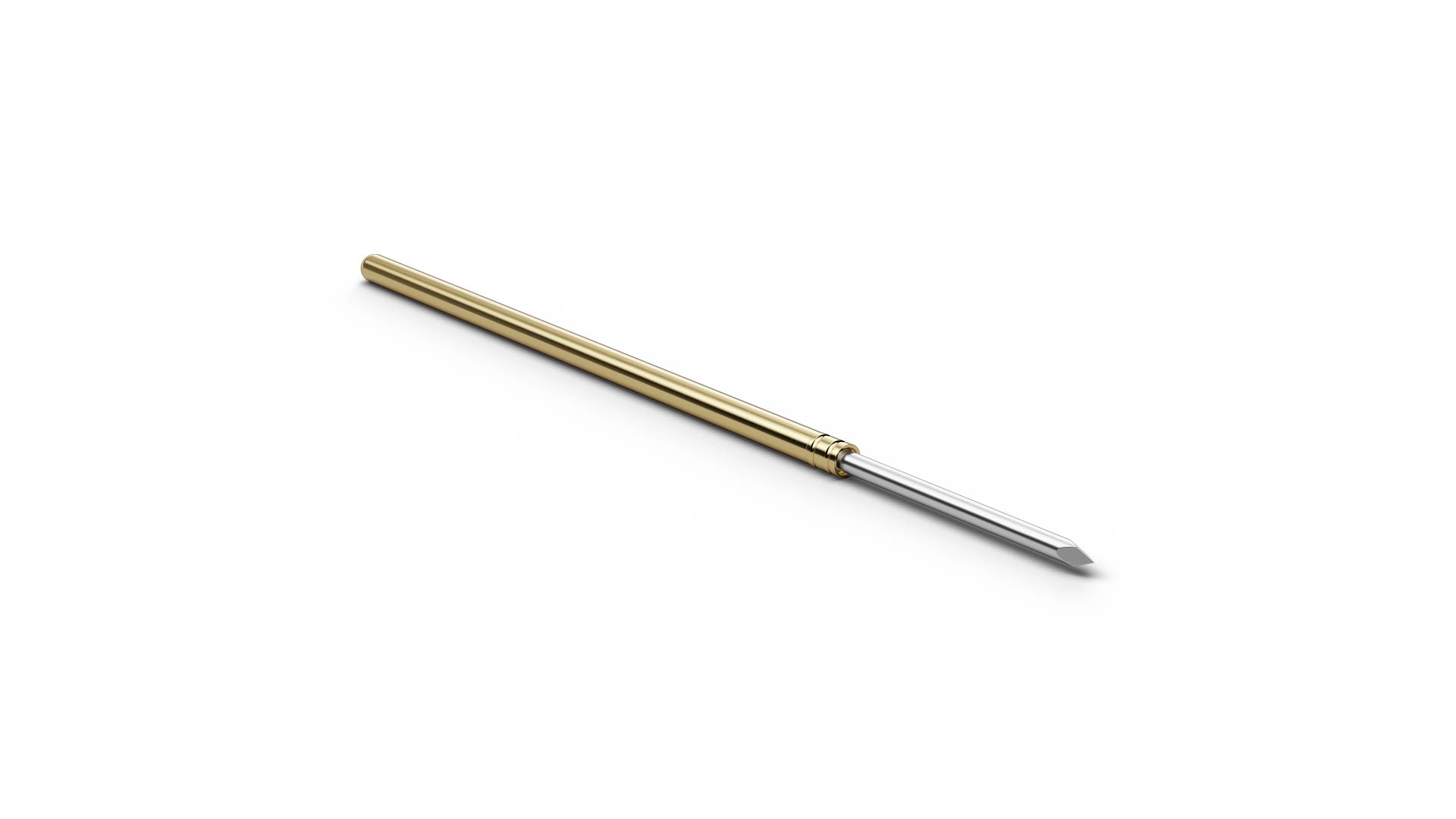

The Basic Contact Probe F07562S064P200HPL (item number 1010290) is a spring-loaded probe for temporary electrical contact with test points. With tip style 62 (Triangular 30°), F07562S064P200HPL combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F07562S064P200HPL combines a pitch of 1.9 mm / 75 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.64 mm. F07562S064P200HPL operates with 200 cN spring force and 4.3 mm nominal travel. F07562S064P200HPL is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. On F07562S064P200HPL, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
