Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F863-NO |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+100°C |
| Definición adicional | L |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 35.2 |
| Altura sobresaliente (mm) | 15 |
| Diámetro del estilo de punta (mm) | 0.75 |
| Diámetro del casquillo (mm) | 1 |
| Diámetro del collar (mm) | 1.4 |
| Diámetro del anillo de presión (mm) | 1.4 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 12 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M1 |
| Tamaño de herramienta (mm) | 1,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 2 |
| Resistencia de contacto típica (mΩ) | 65 |
| Recorrido del interruptor (mm) | 3.5 |
| Corriente continua (A) 2 | 1 |
Gráficos
Beschreibung des Produkts

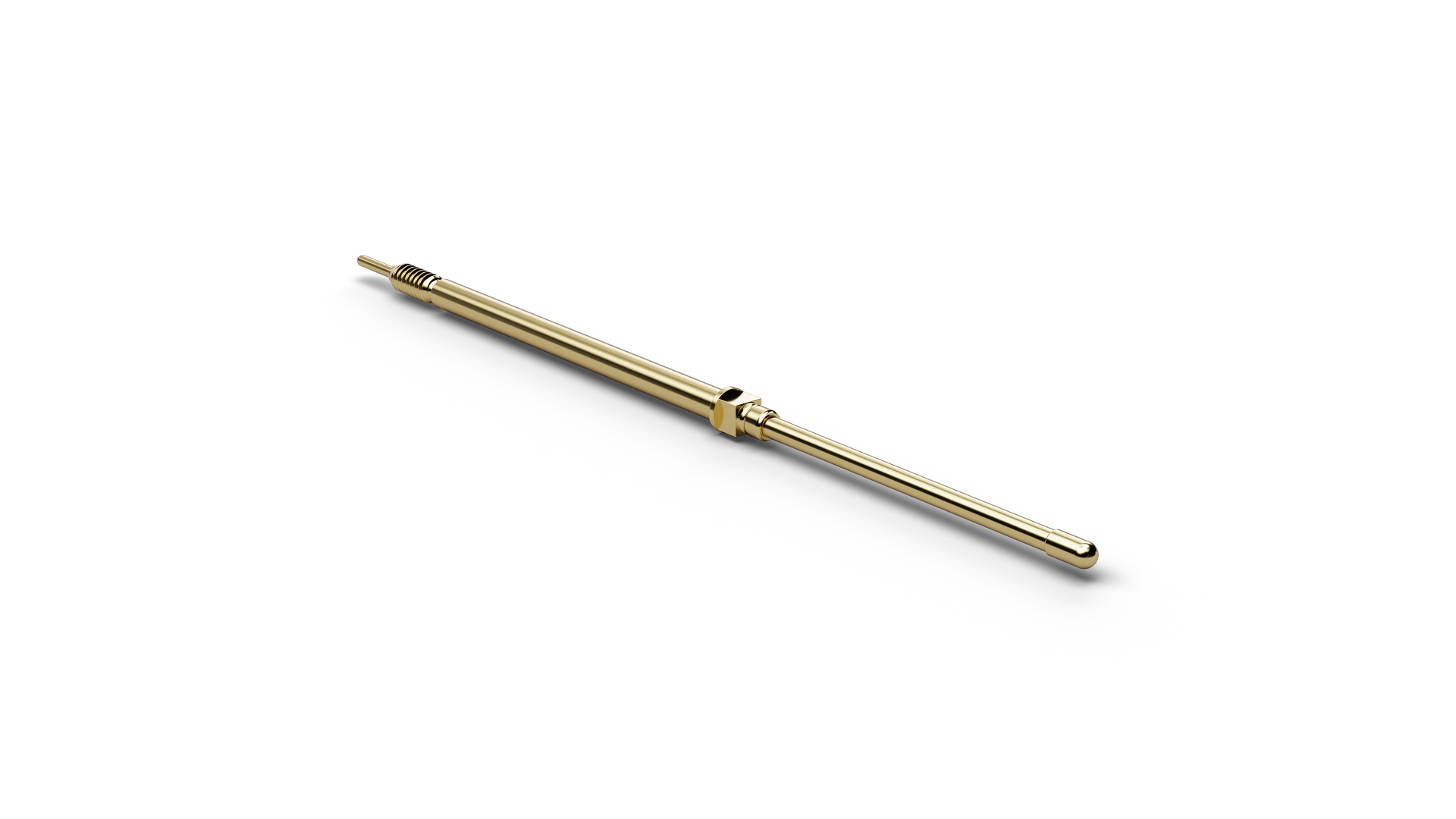

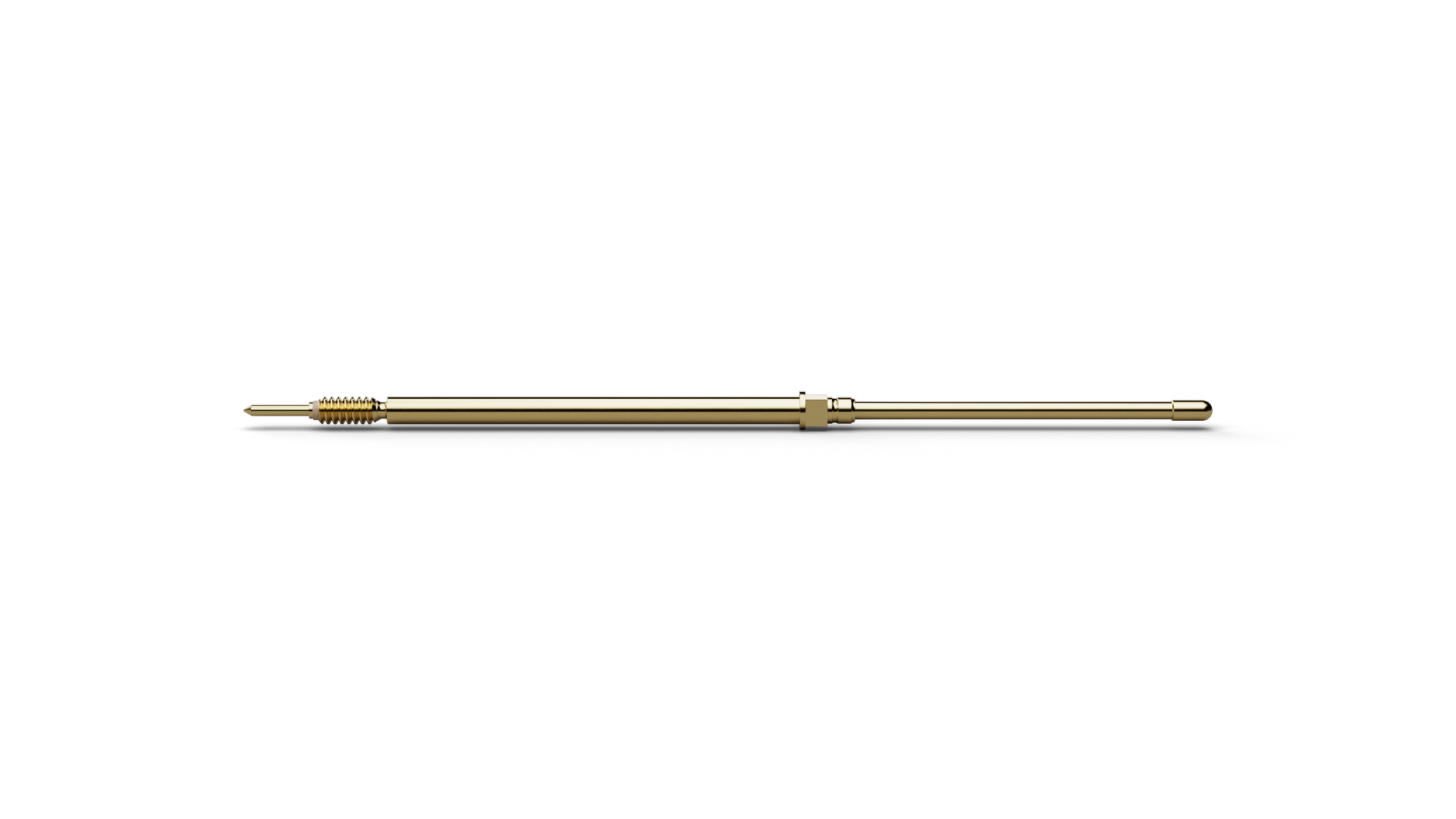

The Normally Open Switch Probe F86312B075G150L (item number 1018853) combines spring-loaded contacting with a defined switching or sensing function. F86312B075G150L combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F86312B075G150L, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F86312B075G150L, spring force is 150 cN at a nominal travel of 4 mm. F86312B075G150L is rated for 2 A continuous current with a typical contact resistance of 65 mΩ. The design combines a pitch of 1.9 mm / 75 mil with tip style 12 (Spherical stepped) and a tip diameter of 0.75 mm.
