Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F863-NO |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+100°C |
| Additional definition | L |
| Dimensions | |
|---|---|
| Total length (mm) | 35.2 |
| Protrusion height (mm) | 15 |
| Tip style diameter (mm) | 0.75 |
| Barrel diameter (mm) | 1 |
| Collar diameter (mm) | 1.4 |
| Press ring diameter (mm) | 1.4 |
| Materials and surfaces | |
|---|---|
| Tip style | 12 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M1 |
| Tool size (mm) | 1,0 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2 |
| Typical contact resistance (mOhm) | 65 |
| Switch travel (mm) | 3.5 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

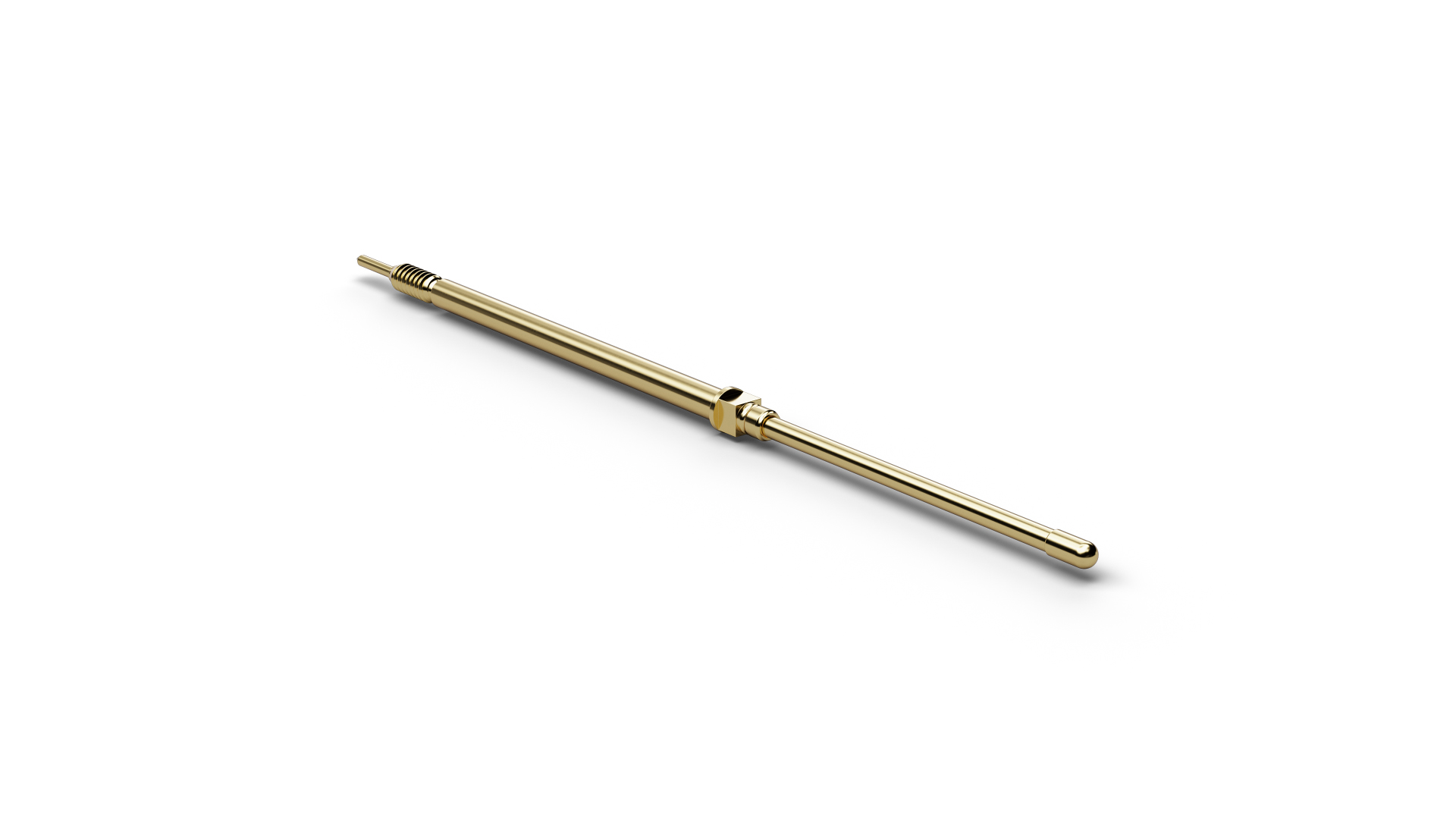

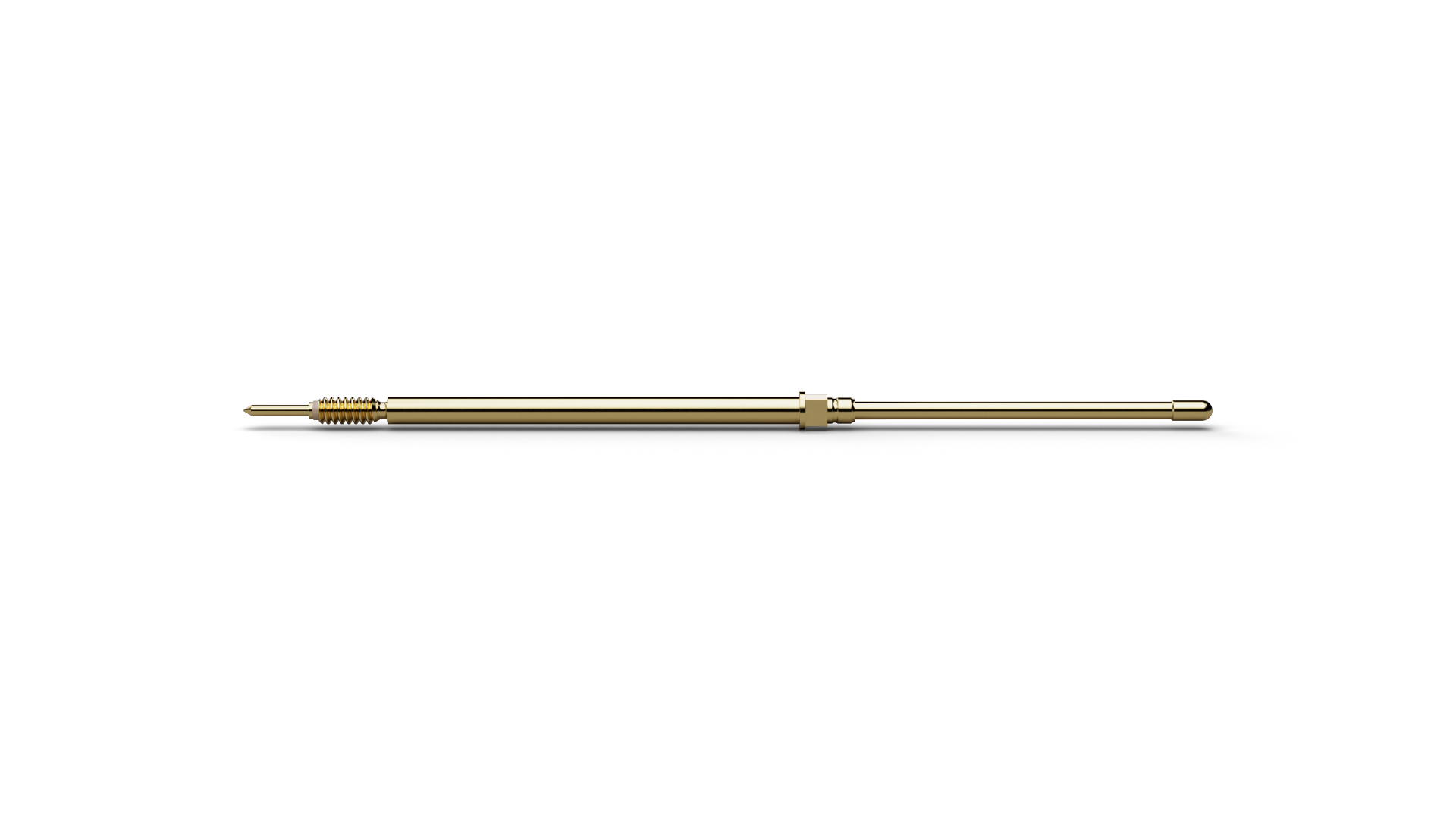

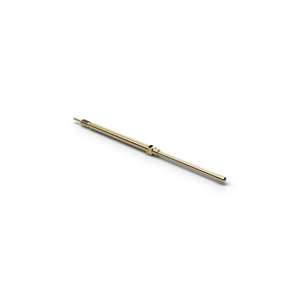

The Normally Open Switch Probe F86312B075G150L (item number 1018853) combines spring-loaded contacting with a defined switching or sensing function. F86312B075G150L combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F86312B075G150L, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F86312B075G150L, spring force is 150 cN at a nominal travel of 4 mm. F86312B075G150L is rated for 2 A continuous current with a typical contact resistance of 65 mΩ. The design combines a pitch of 1.9 mm / 75 mil with tip style 12 (Spherical stepped) and a tip diameter of 0.75 mm.
