Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P-B / P147B-L055 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|

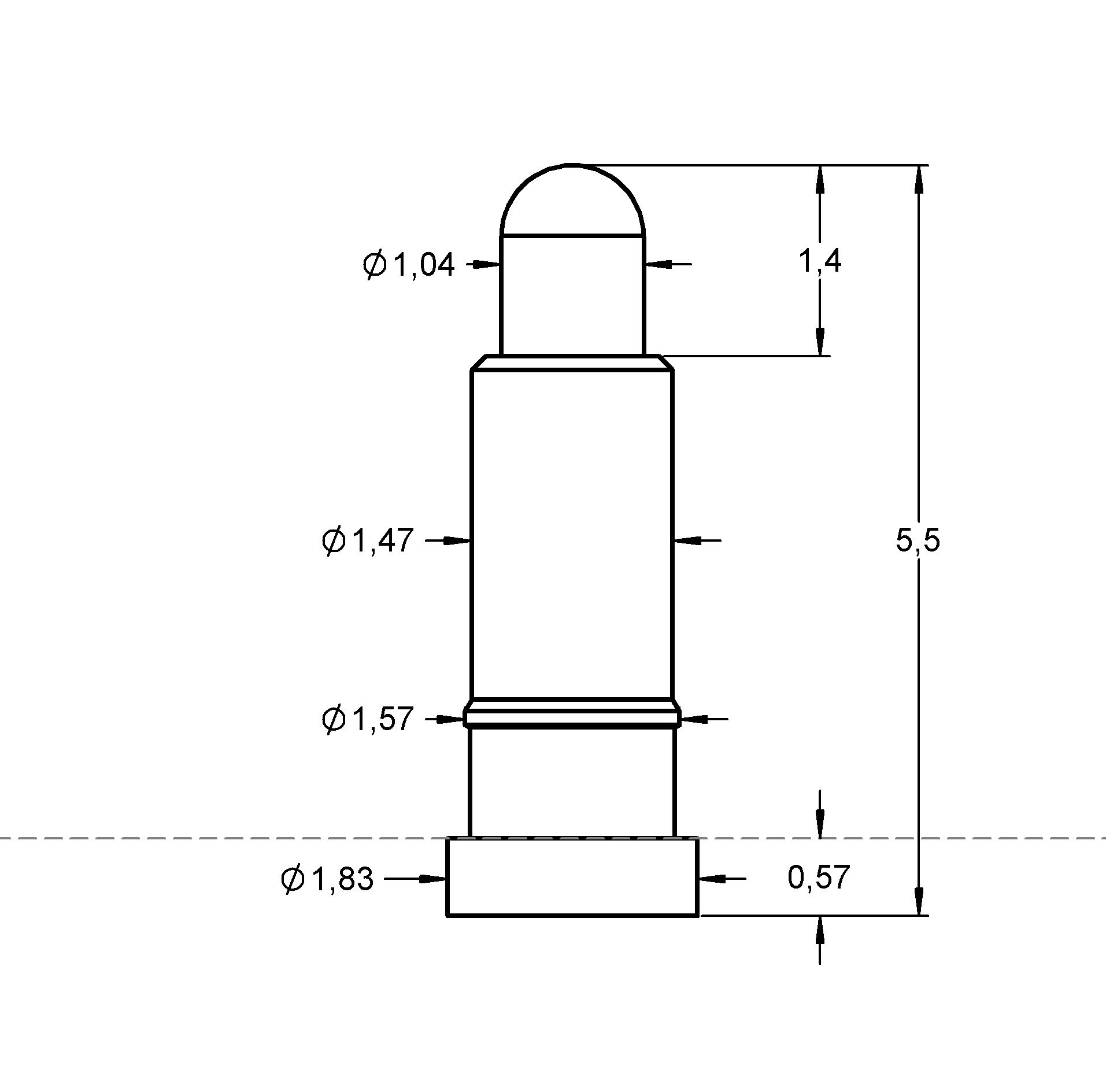

| Longitud total (mm) | 5.5 |
| Altura sobresaliente (mm) | 1.4 |
| Diámetro del estilo de punta (mm) | 1.04 |
| Diámetro del casquillo (mm) | 1.47 |
| Diámetro del collar (mm) | 1.83 |
| Diámetro del anillo de presión (mm) | 1.83 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Brass |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 42 |
| Fuerza del resorte (cN) | 80 |
| Recorrido nominal (mm) | 0.8 |
| Recorrido máximo (mm) | 1.3 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 6 |
Gráficos

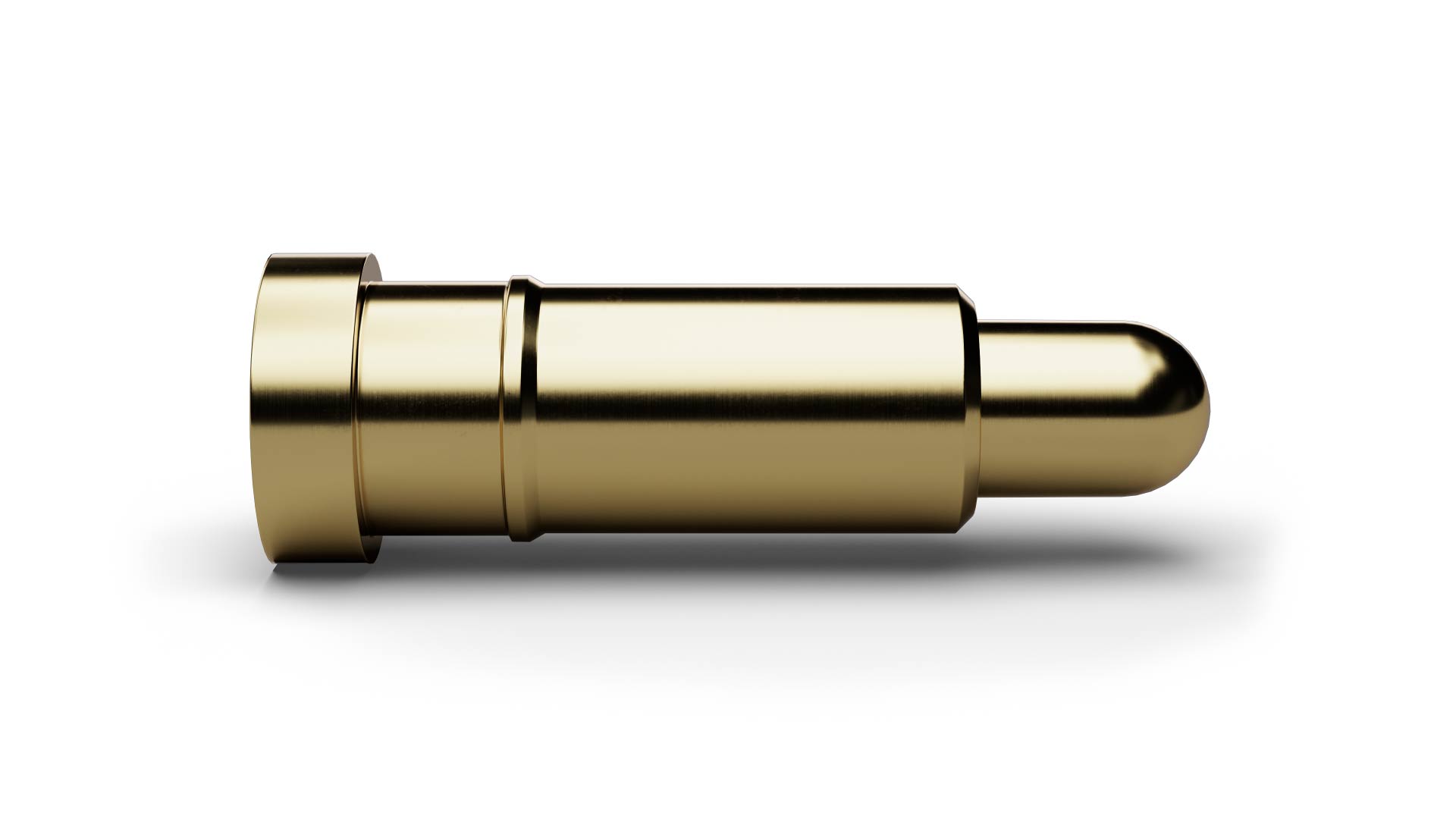

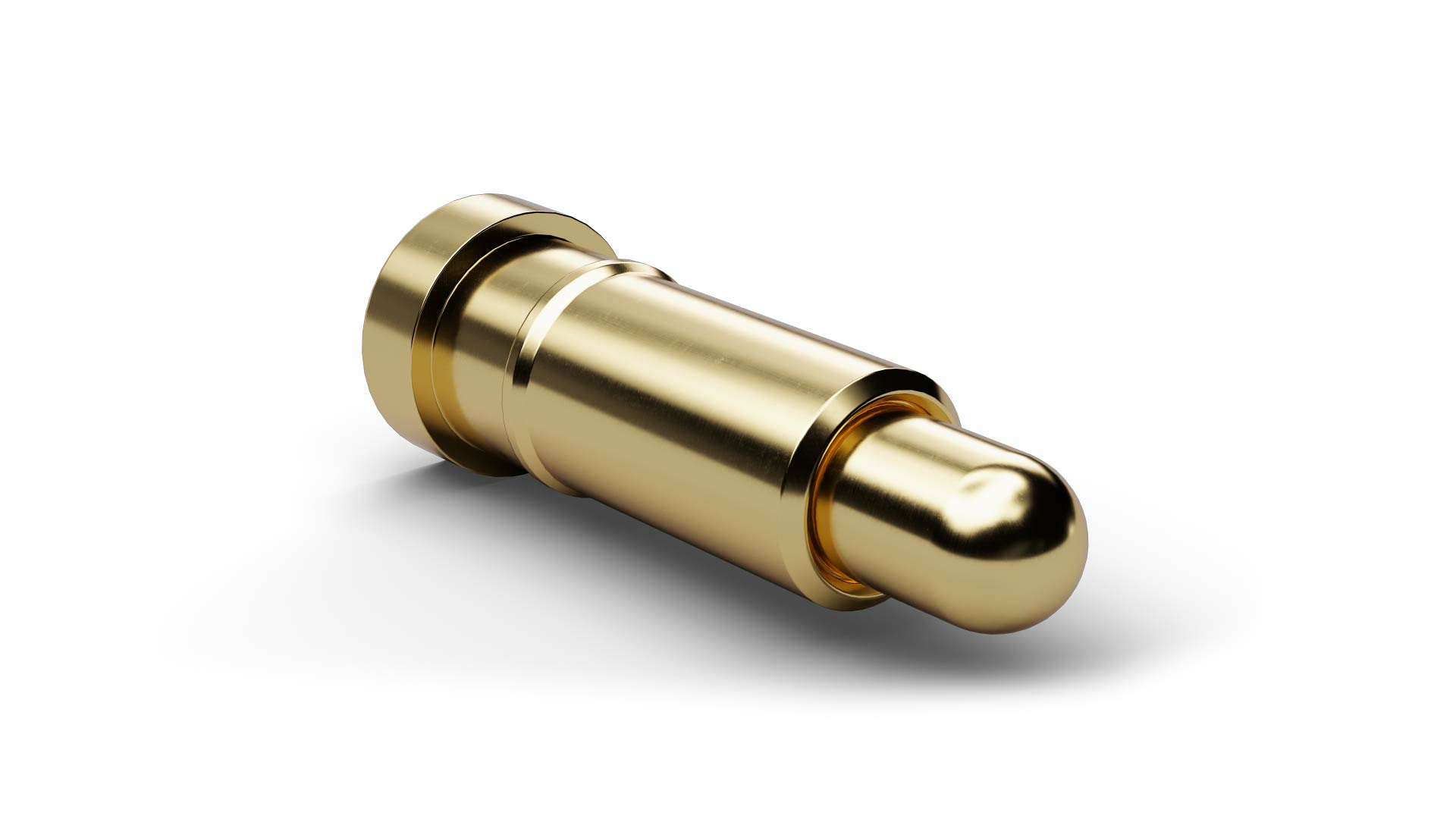

Beschreibung des Produkts
The Pogo Connector P14711M104G080BL055ST (item number 1051286) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P14711M104G080BL055ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P14711M104G080BL055ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 2.54 mm / 100 mil, spring force is 80 cN at a nominal travel of 0.8 mm. The probe is rated for 5 A continuous current with a typical contact resistance of 6 mΩ. Tip style 11 (Spherical) has a diameter of 1.04 mm.
