Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F040 |
| Paso (mm/mil) | 1,00 / 40 |
| Temperatura | -45°C...+80°C |
| Definición adicional | HP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 35.9 |
| Altura sobresaliente (mm) | 7 |
| Diámetro del estilo de punta (mm) | 0.38 |
| Diámetro del casquillo (mm) | 0.62 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 33 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Progressive |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 80 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 2 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

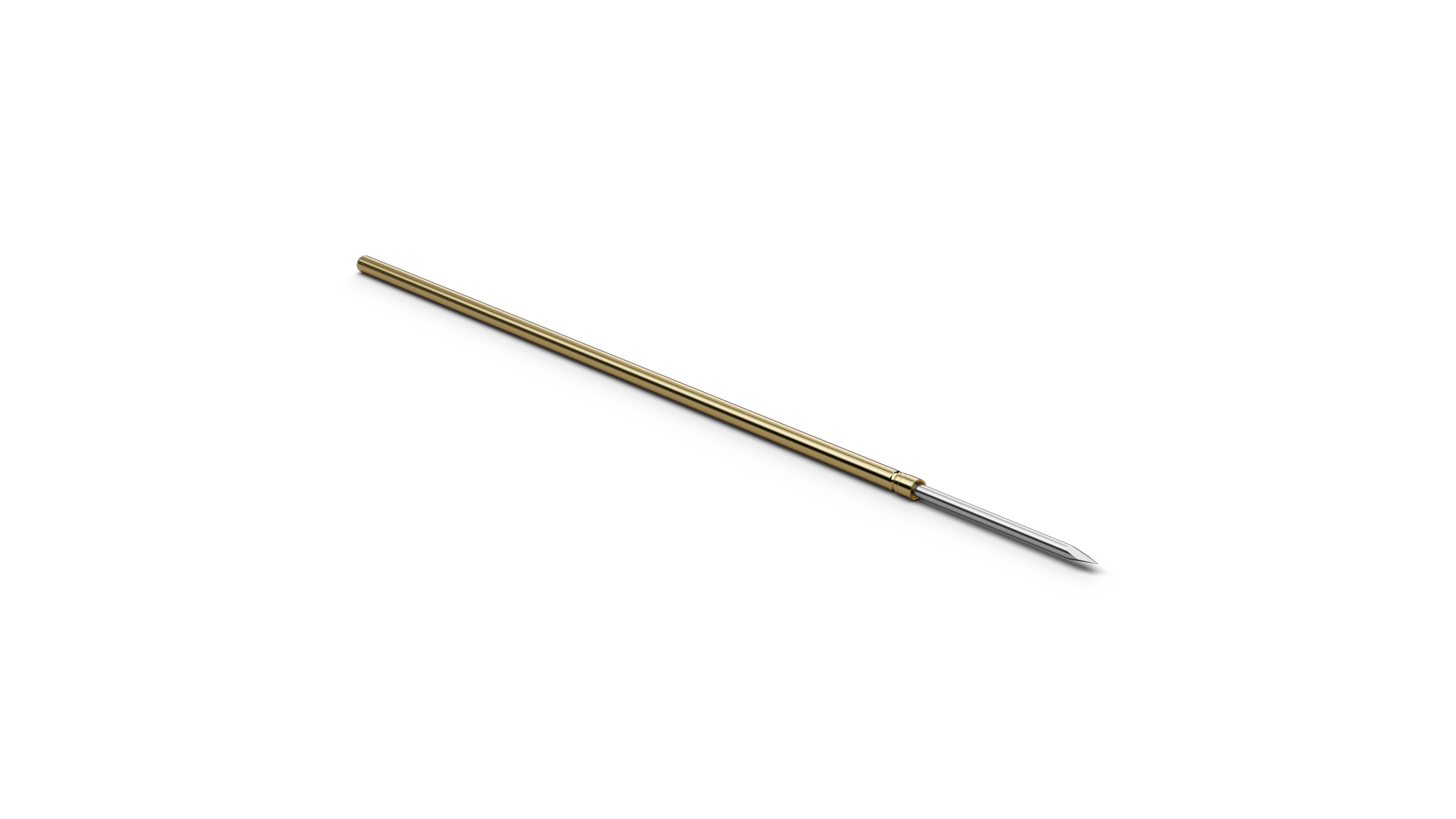

F04033S038P080HP (item number 1140612) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F04033S038P080HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F04033S038P080HP combines a pitch of 1 mm / 40 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.38 mm. F04033S038P080HP operates with 80 cN spring force and 4.3 mm nominal travel. F04033S038P080HP is rated for 2 A continuous current with a typical contact resistance of 20 mΩ. The P/HP configuration of F04033S038P080HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
