Datos técnicos
| General | |
|---|---|
| Tipo/Familia | HCB |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 65.5 |
| Altura sobresaliente (mm) | 10.5 |
| Diámetro del estilo de punta (mm) | 3 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 12 |
| Estilo de punta 2 | 06 |
| Material del estilo de punta | Beryllium copper |
| Recubrimiento del estilo de punta | Silver |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Silver |
| Material del bloque | Aluminium |
| Recubrimiento del bloque | Silver |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Material del émbolo 2 | Beryllium copper |
| Recubrimiento del émbolo 2 | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 4085 |
| Fuerza del resorte (cN) | 8000 |
| Recorrido nominal (mm) | 4.4 |
| Recorrido máximo (mm) | 5.5 |
| DUT | Inverter |
Gráficos
Beschreibung des Produkts

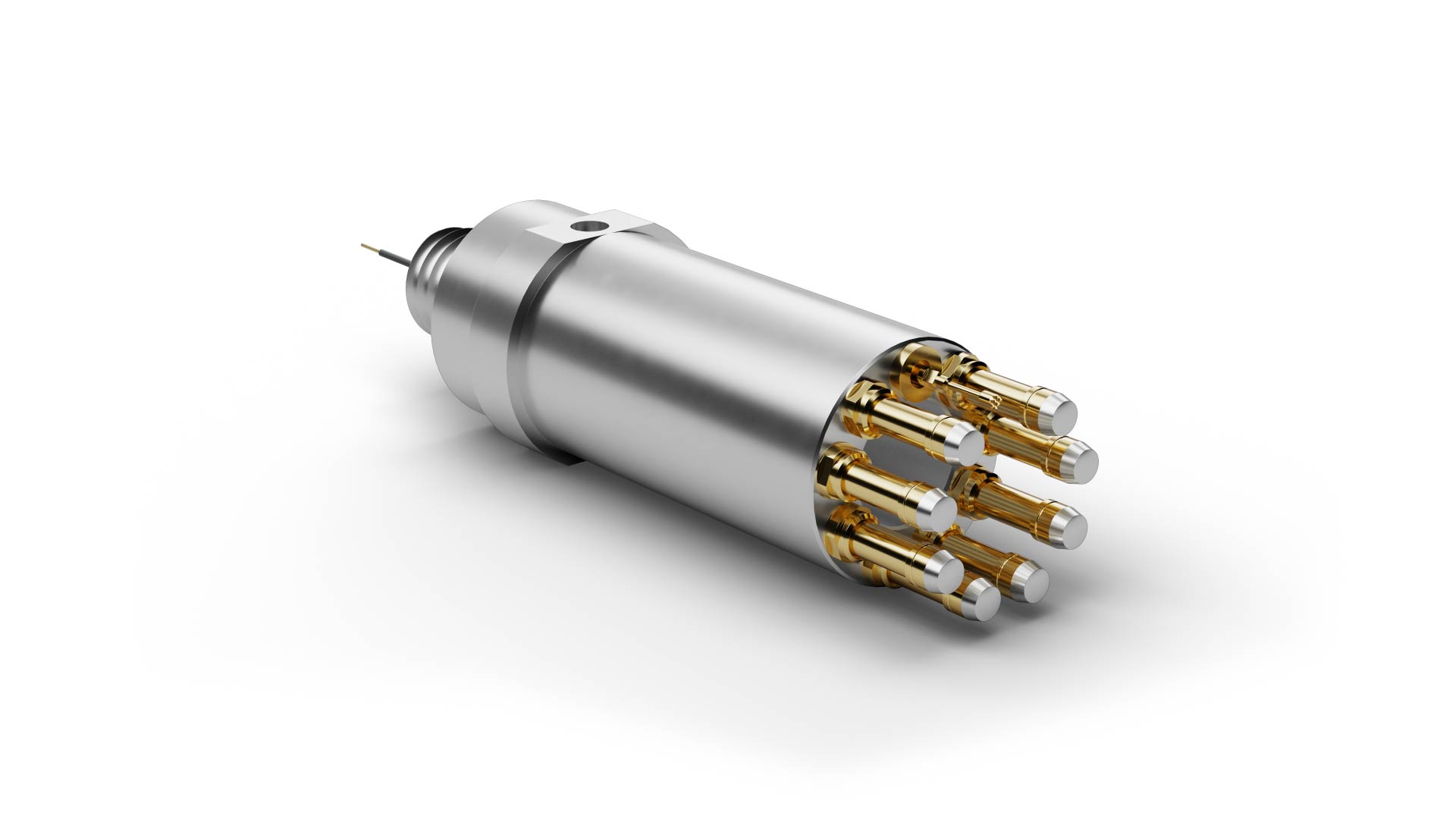

The High Current Block HCB166B12ALS80 (item number 1145585) is designed for test and contacting tasks with high electrical currents. HCB166B12ALS80 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB166B12ALS80, the compact assembly integrates the current path into a defined interface, where current capability, contact resistance and contact force are key design parameters. This version is intended for contacting Inverter. Spring force is 8000 cN at a nominal travel of 4.4 mm.
