Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | BP075 |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 33.1 |
| Altura sobresaliente (mm) | 8.1 |
| Diámetro del estilo de punta (mm) | 0.64 |
| Diámetro del casquillo (mm) | 1.02 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del estilo de punta | Beryllium copper |
| Recubrimiento del estilo de punta | Gold |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 80 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |

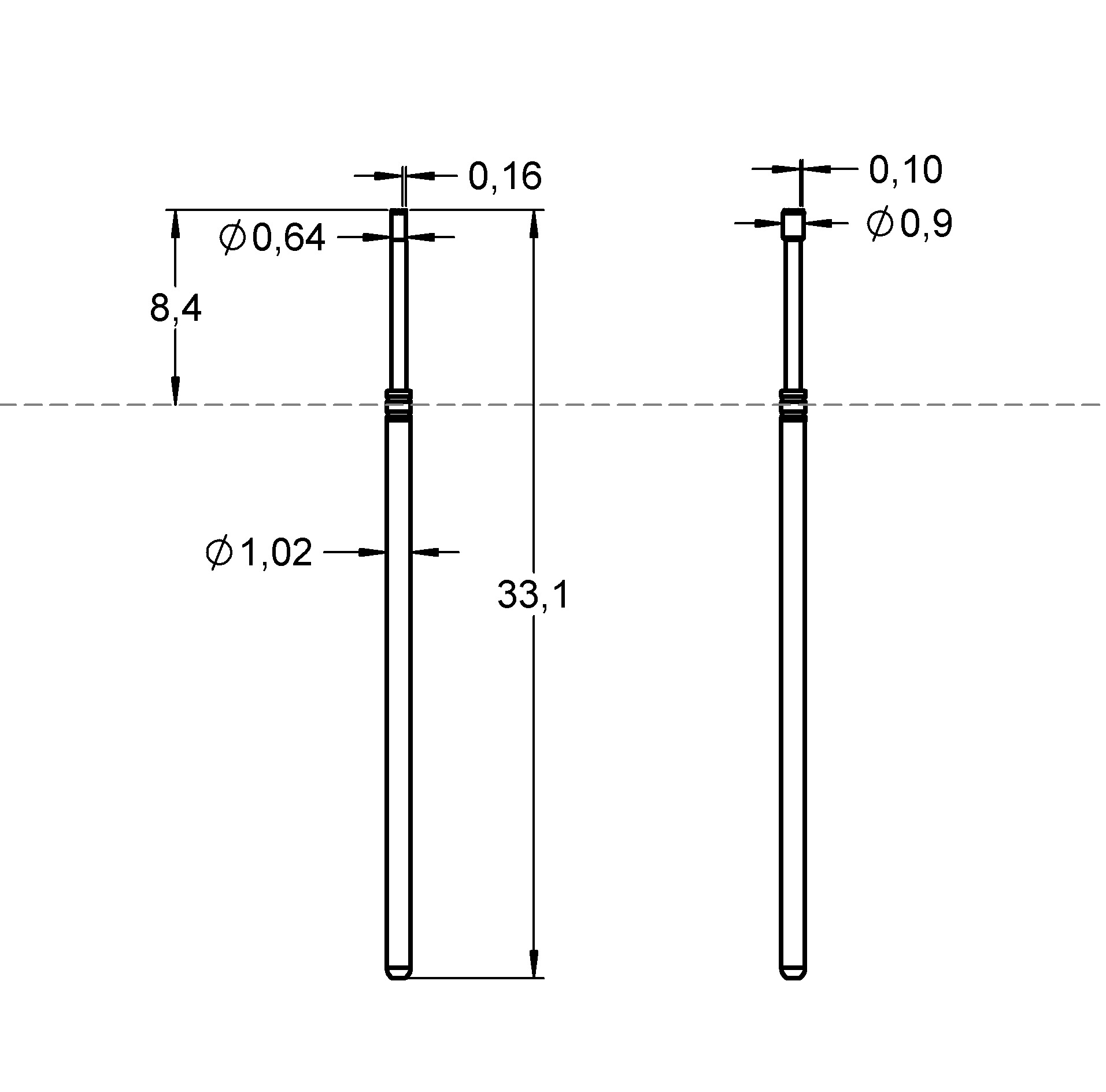

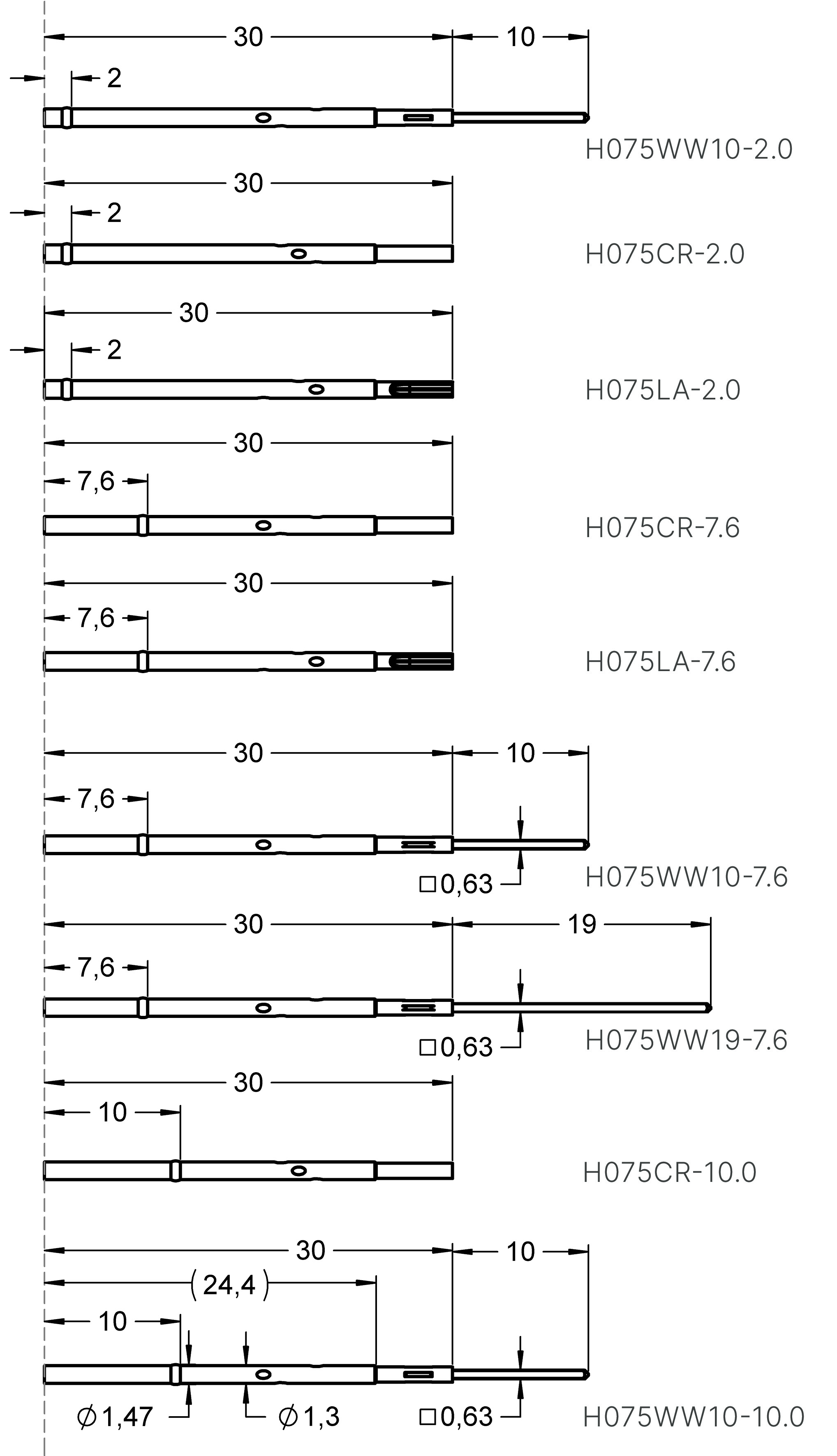

Gráficos
Beschreibung des Produkts

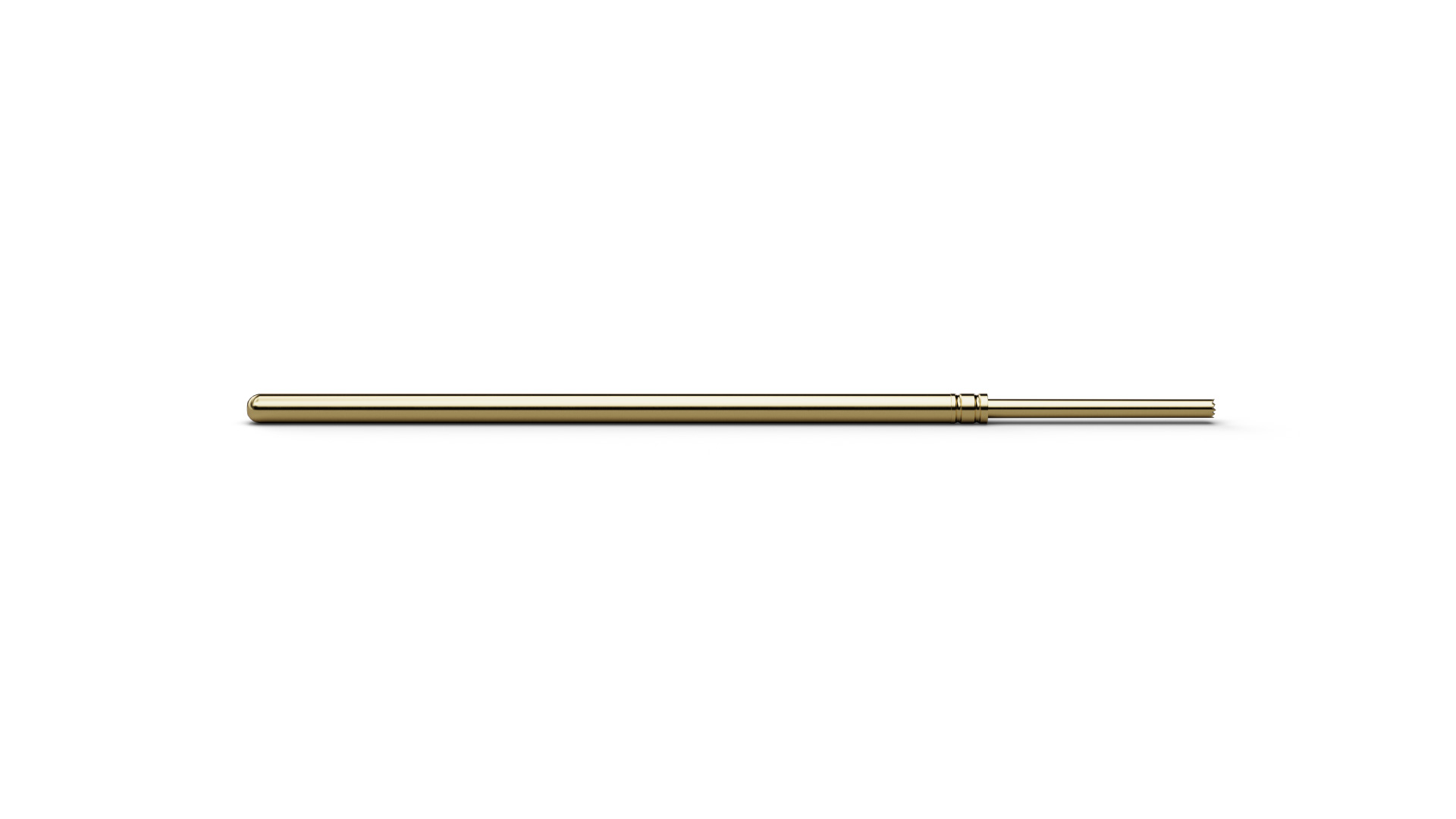

The Bead Probe BP07506B064G200 (item number 1170174) was developed specifically for contacting solder beads on printed circuit boards. Its tip style 06 (Serrated stepped) with a 0.64 mm tip diameter is matched to small solder-bead geometries and provides targeted contacting without unnecessarily loading the surrounding PCB track. BP07506B064G200 is specified with a pitch of 1.90 mm / 75 mil, 200 cN spring force and 4.3 mm nominal travel. The Beryllium copper plunger of BP07506B064G200 is gold-plated.
