Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | P-T / P162T-L160 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 15.95 |
| Hauteur hors tout (mm) | 3 |
| Diamètre du style de pointe (mm) | 1.4 |
| Diamètre du fût (mm) | 1.62 |
| Diamètre du collet (mm) | 1.9 |
| Diamètre de la bague de serrage (mm) | 1.9 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 11 |
| Matériau du piston | Brass |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 100 |
| Force du ressort (cN) | 250 |
| Course nominale (mm) | 2.8 |
| Course maximale (mm) | 3 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 8 |
| Résistance de contact typique (mΩ) | 30 |
Graphiques
Beschreibung des Produkts

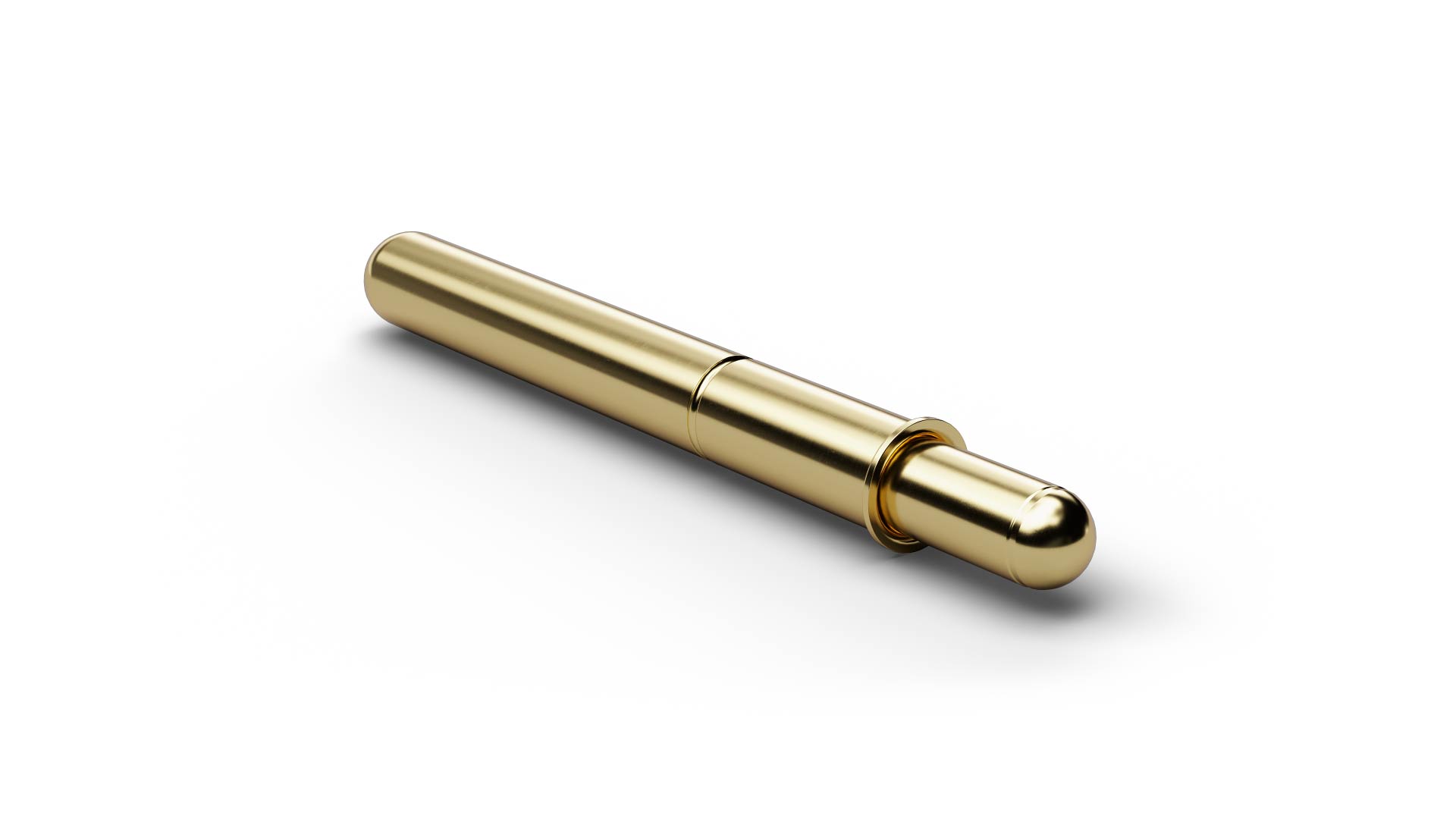

The Pogo Connector P16211M140G250TL160 (item number 1014080) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16211M140G250TL160 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16211M140G250TL160 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 2.54 mm / 100 mil, spring force is 250 cN at a nominal travel of 2.8 mm. P16211M140G250TL160 is rated for 8 A continuous current with a typical contact resistance of 30 mΩ. Tip style 11 (Spherical) has a diameter of 1.4 mm.
