Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P162T-L160 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 15.95 |
| Protrusion height (mm) | 3 |
| Tip style diameter (mm) | 1.4 |
| Barrel diameter (mm) | 1.62 |
| Collar diameter (mm) | 1.9 |
| Press ring diameter (mm) | 1.9 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 100 |
| Spring force (cN) | 250 |
| Nominal travel (mm) | 2.8 |
| Maximum travel (mm) | 3 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 8 |
| Typical contact resistance (mOhm) | 30 |

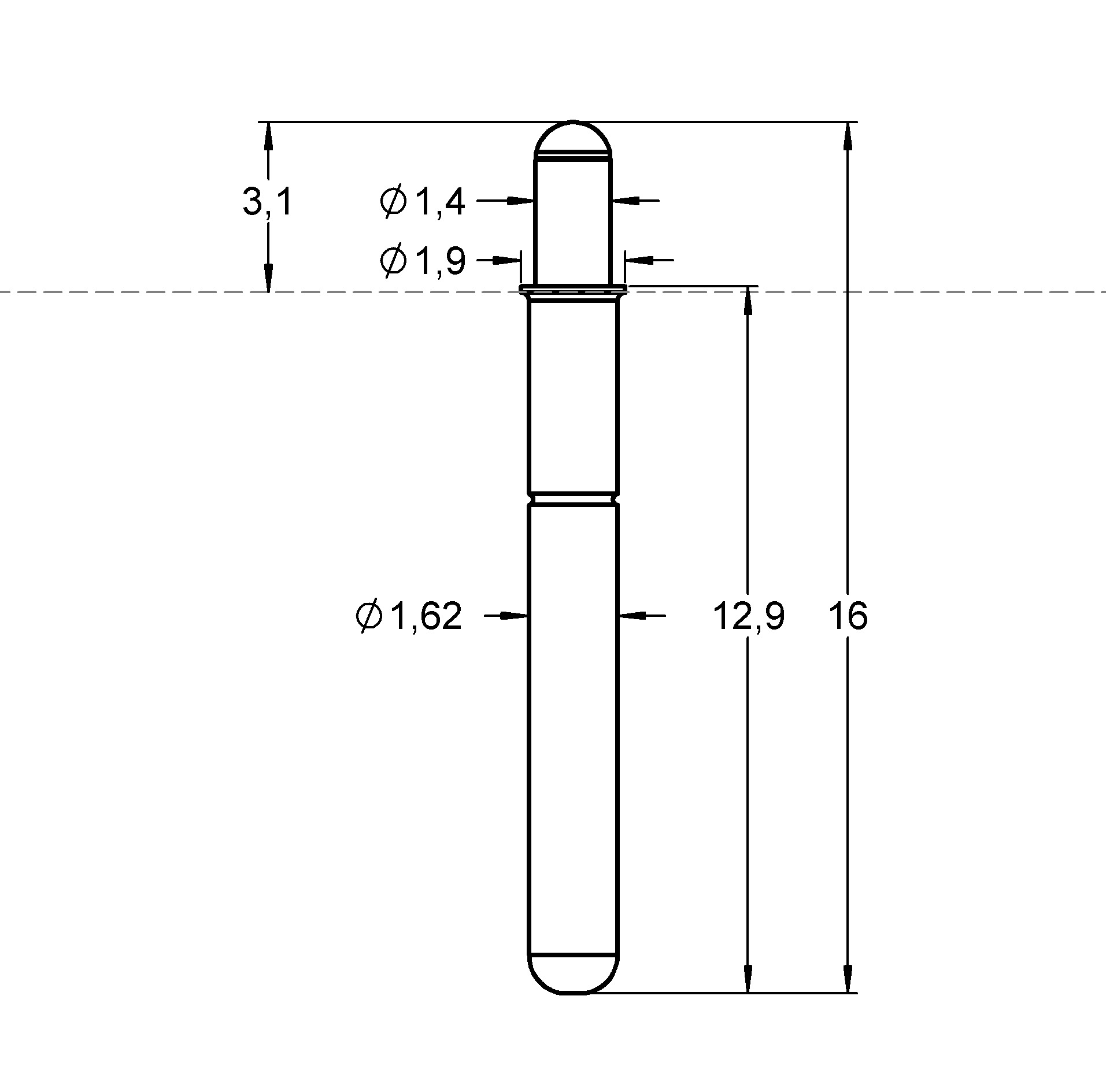

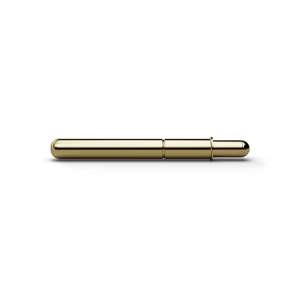

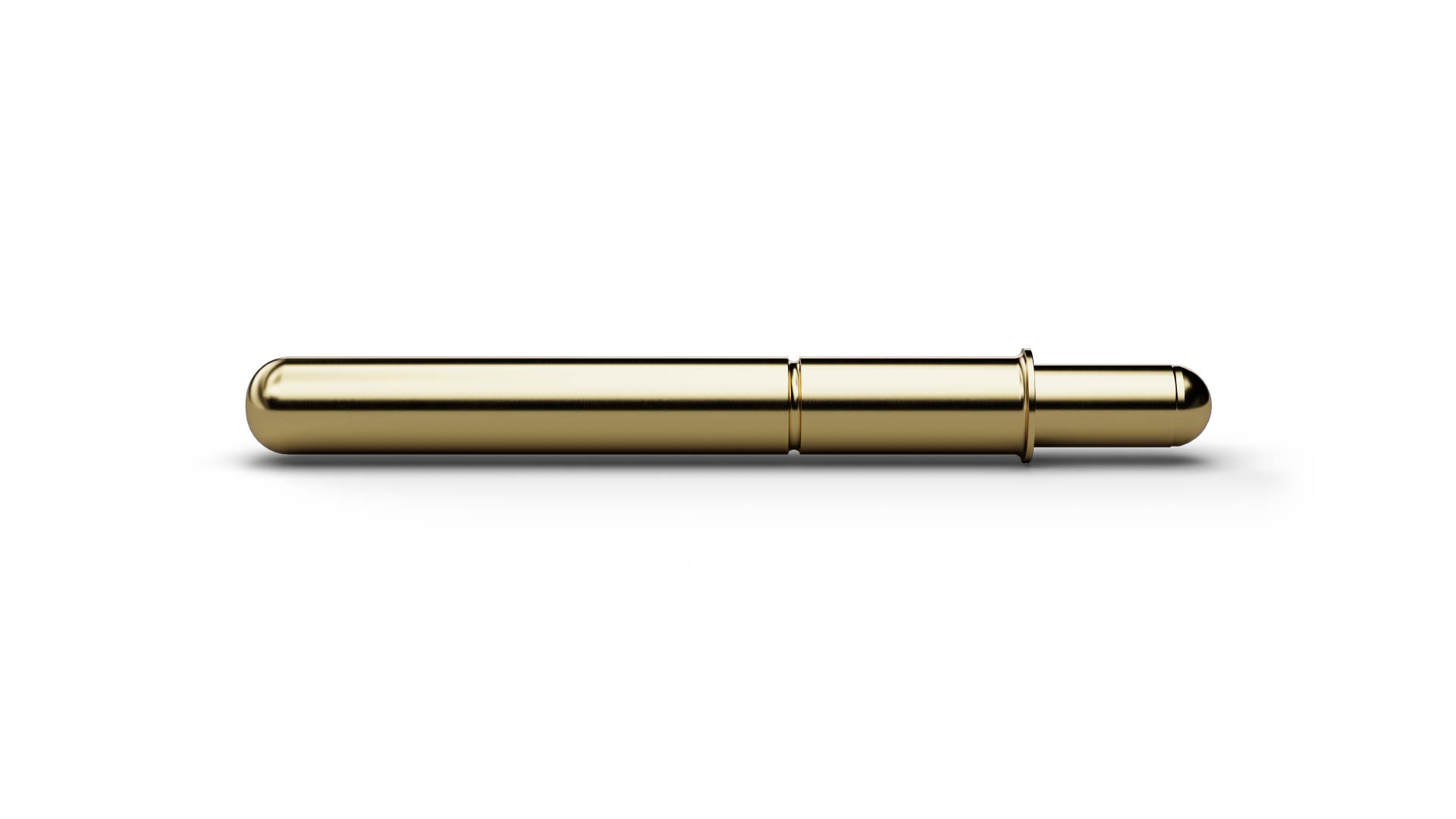

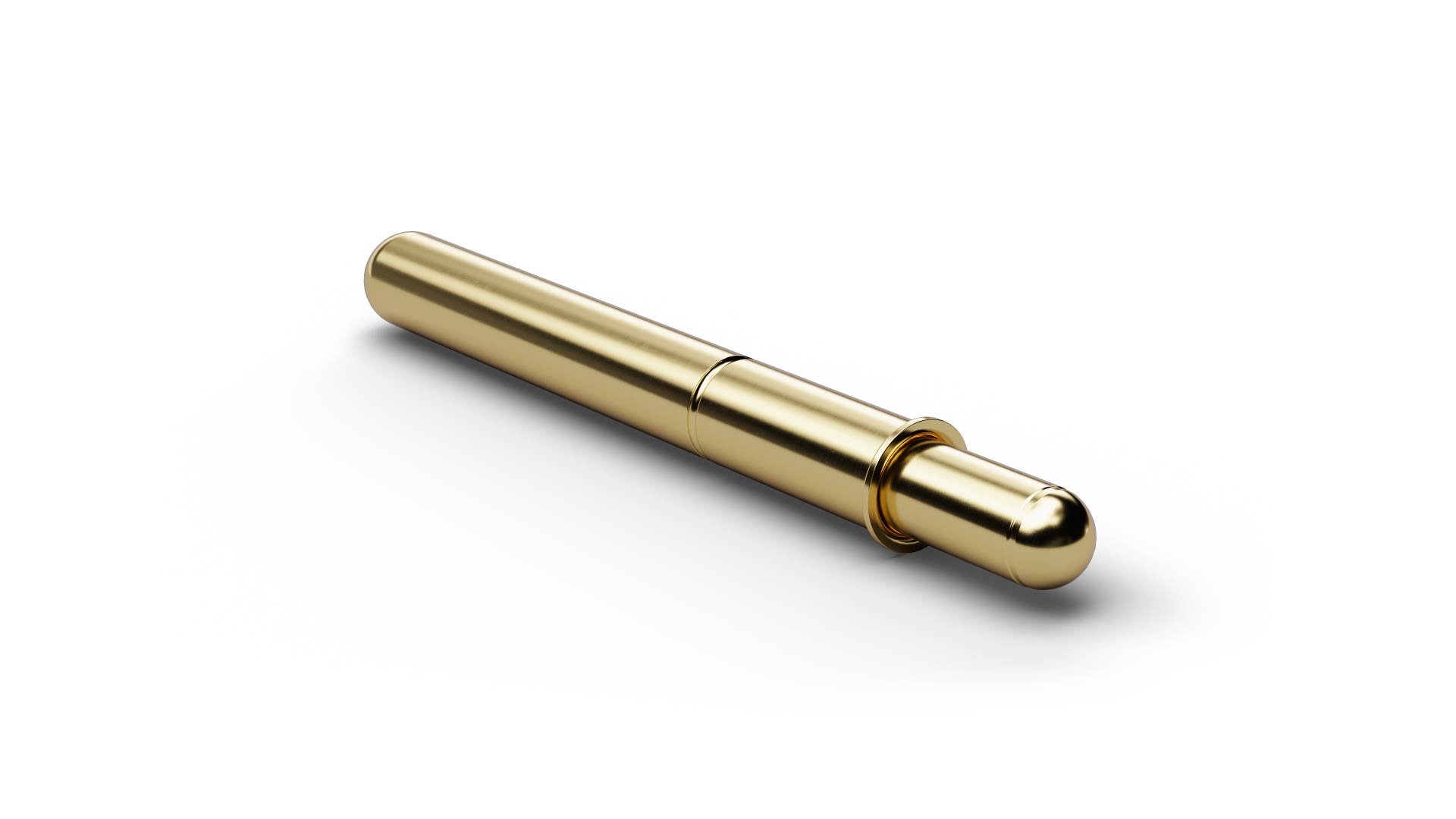

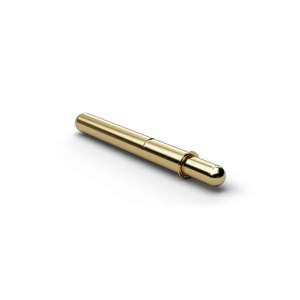

Graphics
Beschreibung des Produkts
The Pogo Connector P16211M140G250TL160 (item number 1014080) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16211M140G250TL160 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16211M140G250TL160 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 2.54 mm / 100 mil, spring force is 250 cN at a nominal travel of 2.8 mm. P16211M140G250TL160 is rated for 8 A continuous current with a typical contact resistance of 30 mΩ. Tip style 11 (Spherical) has a diameter of 1.4 mm.
