Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F075HP |
| Pas (mm/mil) | 1,90 / 75 |
| Température | -45°C...+80°C |
| Définition complémentaire | HPL |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 35.1 |
| Hauteur hors tout (mm) | 10.2 |
| Diamètre du style de pointe (mm) | 0.64 |
| Diamètre du fût (mm) | 1.02 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 32 |
| Matériau du piston | Steel |
| Revêtement du piston | Progressive |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 130 |
| Force du ressort (cN) | 250 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 4 |
| Résistance de contact typique (mΩ) | 40 |
Graphiques
Beschreibung des Produkts

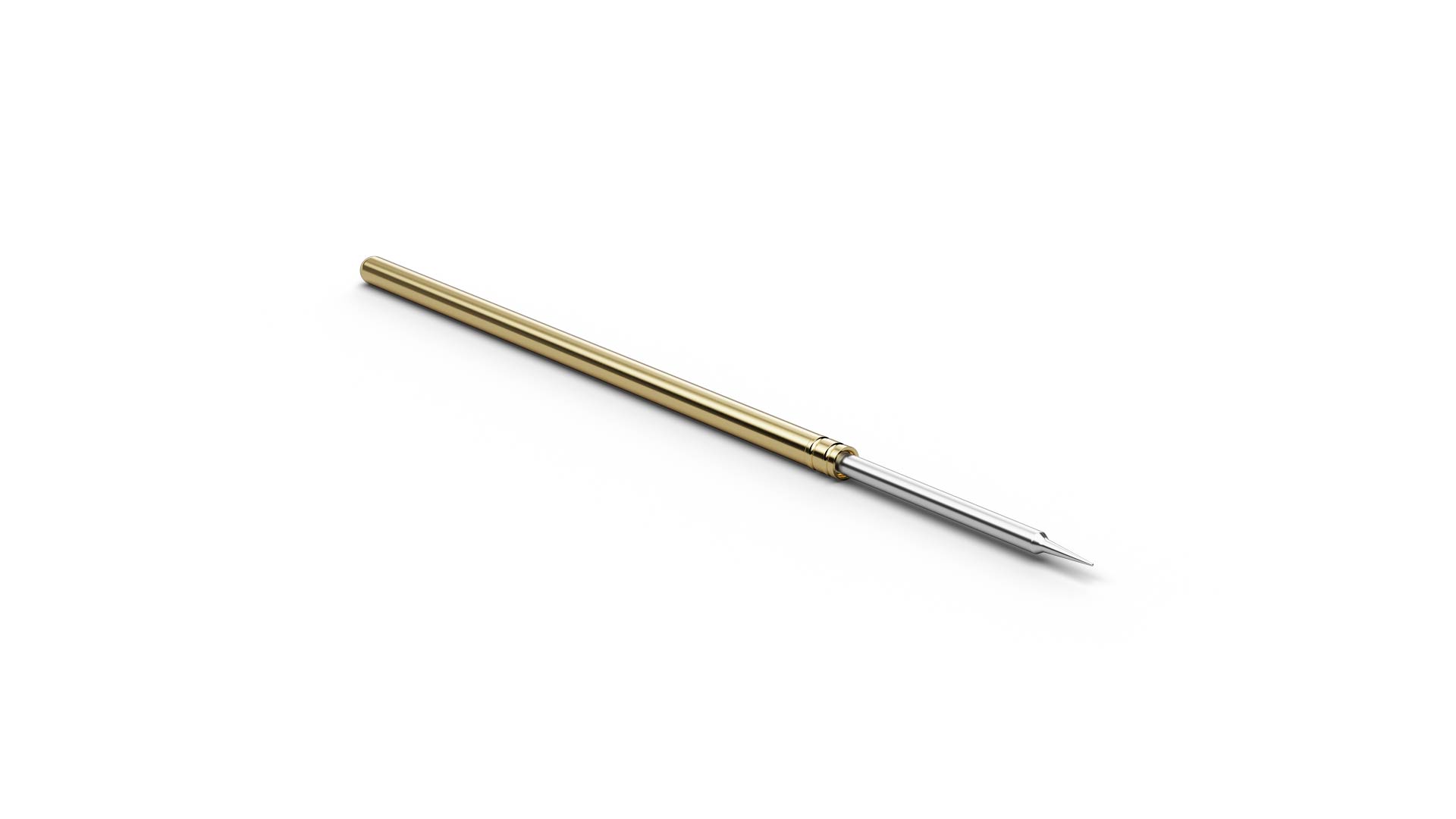

F07532S064P250HPL (item number 1014299) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 32 (Rigid needle 10°), F07532S064P250HPL combines ICT/FCT use with a geometry intended for solder pads and vias. F07532S064P250HPL combines a pitch of 1.9 mm / 75 mil with tip style 32 (Rigid needle 10°) and a tip diameter of 0.64 mm. F07532S064P250HPL operates with 250 cN spring force and 4.3 mm nominal travel. F07532S064P250HPL is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. On F07532S064P250HPL, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
