Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F075HP |
| Pas (mm/mil) | 1,90 / 75 |
| Température | -45°C...+80°C |
| Définition complémentaire | HP |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33.1 |
| Hauteur hors tout (mm) | 8.2 |
| Diamètre du style de pointe (mm) | 0.64 |
| Diamètre du fût (mm) | 1.02 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 32 |
| Matériau du piston | Steel |
| Revêtement du piston | Progressive |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 130 |
| Force du ressort (cN) | 250 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 4 |
| Résistance de contact typique (mΩ) | 40 |
Graphiques
Beschreibung des Produkts

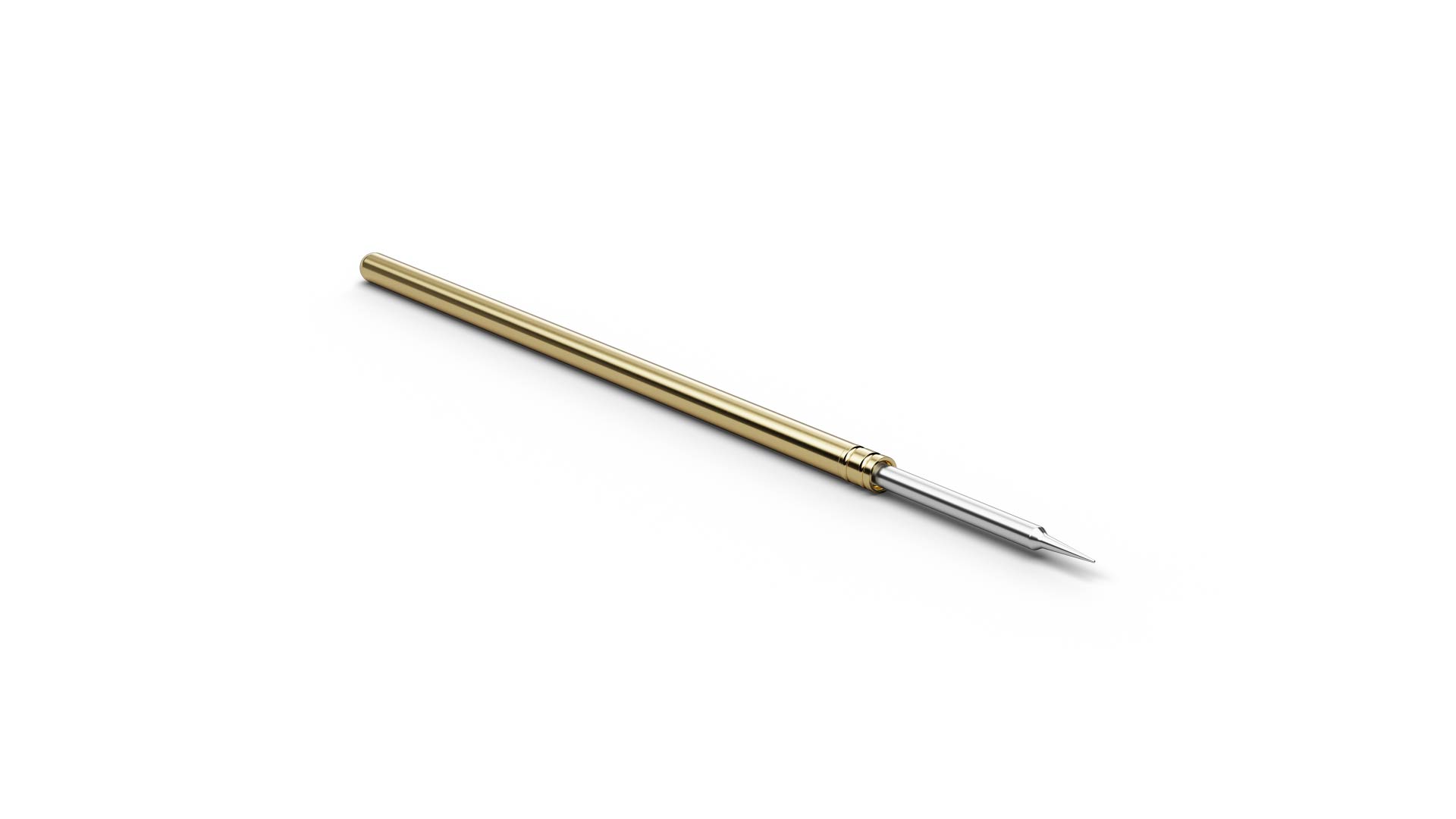

The Basic Contact Probe F07532S064P250HP (item number 1014301) is a spring-loaded probe for temporary electrical contact with test points. With tip style 32 (Rigid needle 10°), F07532S064P250HP combines ICT/FCT use with a geometry intended for solder pads and vias. F07532S064P250HP combines a pitch of 1.9 mm / 75 mil with tip style 32 (Rigid needle 10°) and a tip diameter of 0.64 mm. F07532S064P250HP operates with 250 cN spring force and 4.3 mm nominal travel. F07532S064P250HP is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. On F07532S064P250HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
