Données techniques
| Généralités | |
|---|---|
| Structure | Step Probe |
| Type/famille | F756SP |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+200°C |
| Définition complémentaire | SP |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 41.6 |
| Hauteur hors tout (mm) | 10.3 |
| Diamètre du style de pointe (mm) | 1.5 |
| Diamètre du fût (mm) | 1.64 |
| Diamètre du collet (mm) | 2.3 |
| Diamètre de la bague de serrage (mm) | 2.3 |
| A – diamètre de la lame (mm) | 1.5 |
| B – largeur de la lame (mm) | 0.5 |
| C – longueur de la lame (mm) | 1.5 |
| D – diamètre de la plaque (mm) | 2 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 89 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 60 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 4 |
| Course maximale (mm) | 4.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Filetage | M1,6 |
| Taille d’outil (mm) | 1,7 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

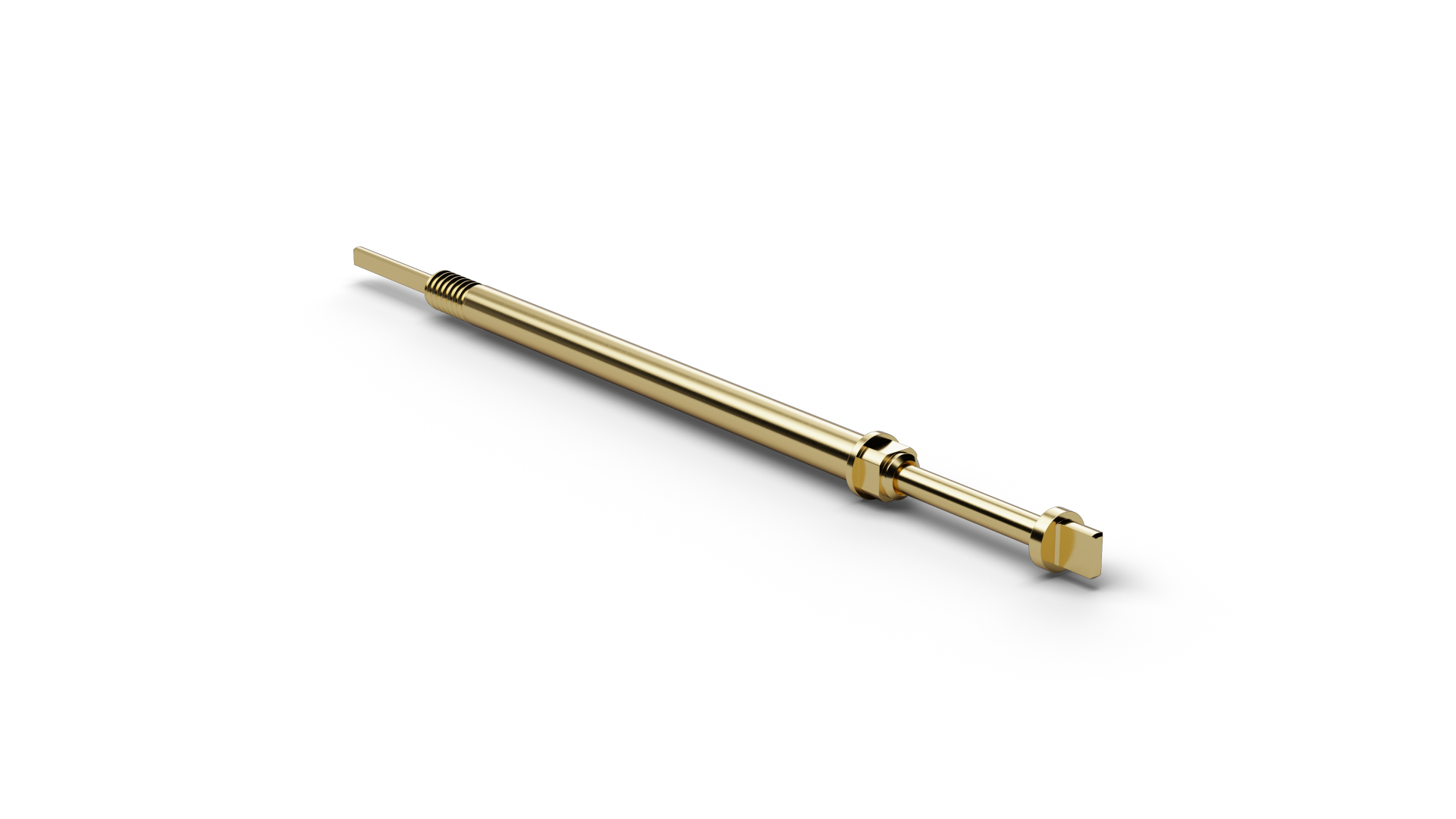

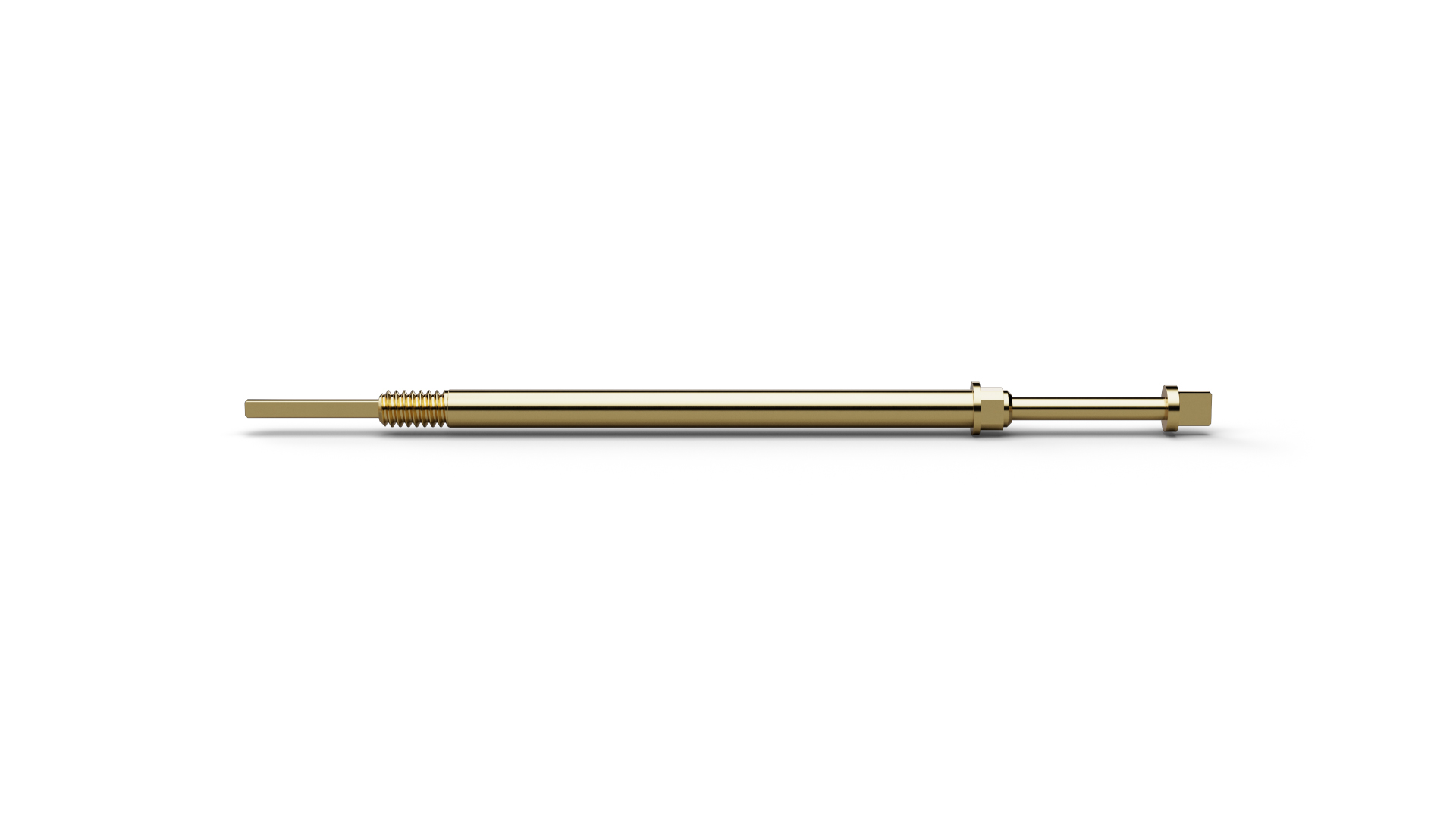

The Step Probe F75689B0004G150SP (item number 1031662) is a Spring Contact Probe with a disc-shaped contact area for position and presence testing. On F75689B0004G150SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. F75689B0004G150SP is suited to contacts located in housings, recesses or difficult-to-access areas because its disc head makes contact only at a defined penetration depth. Key mechanical specifications for F75689B0004G150SP include pitch 2.54 mm / 100 mil, step diameter 2 mm, spring force 150 cN, pointing accuracy ±0.08 mm. The electrical rating of F75689B0004G150SP combines 5 A continuous current with 25 mΩ typical contact resistance. The stepped contact geometry of F75689B0004G150SP makes electrical contact only in the intended installation position and can therefore help detect missing or incorrectly positioned terminals.
