Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | HCF735 |
| Pas (mm/mil) | 5,00 / 197 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 43.1 |
| Hauteur hors tout (mm) | 10.5 |
| Diamètre du style de pointe (mm) | 4 |
| Diamètre du fût (mm) | 3.5 |
| Diamètre du collet (mm) | 4 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 06 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Silver |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 150 |
| Force du ressort (cN) | 300 |
| Course nominale (mm) | 4.4 |
| Course maximale (mm) | 5.5 |
| Précision de pointage +/- (mm) | 0.1 |
| Filetage | M3 |
| Taille d’outil (mm) | 3,5 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 50 |
| Résistance de contact typique (mΩ) | 5 |

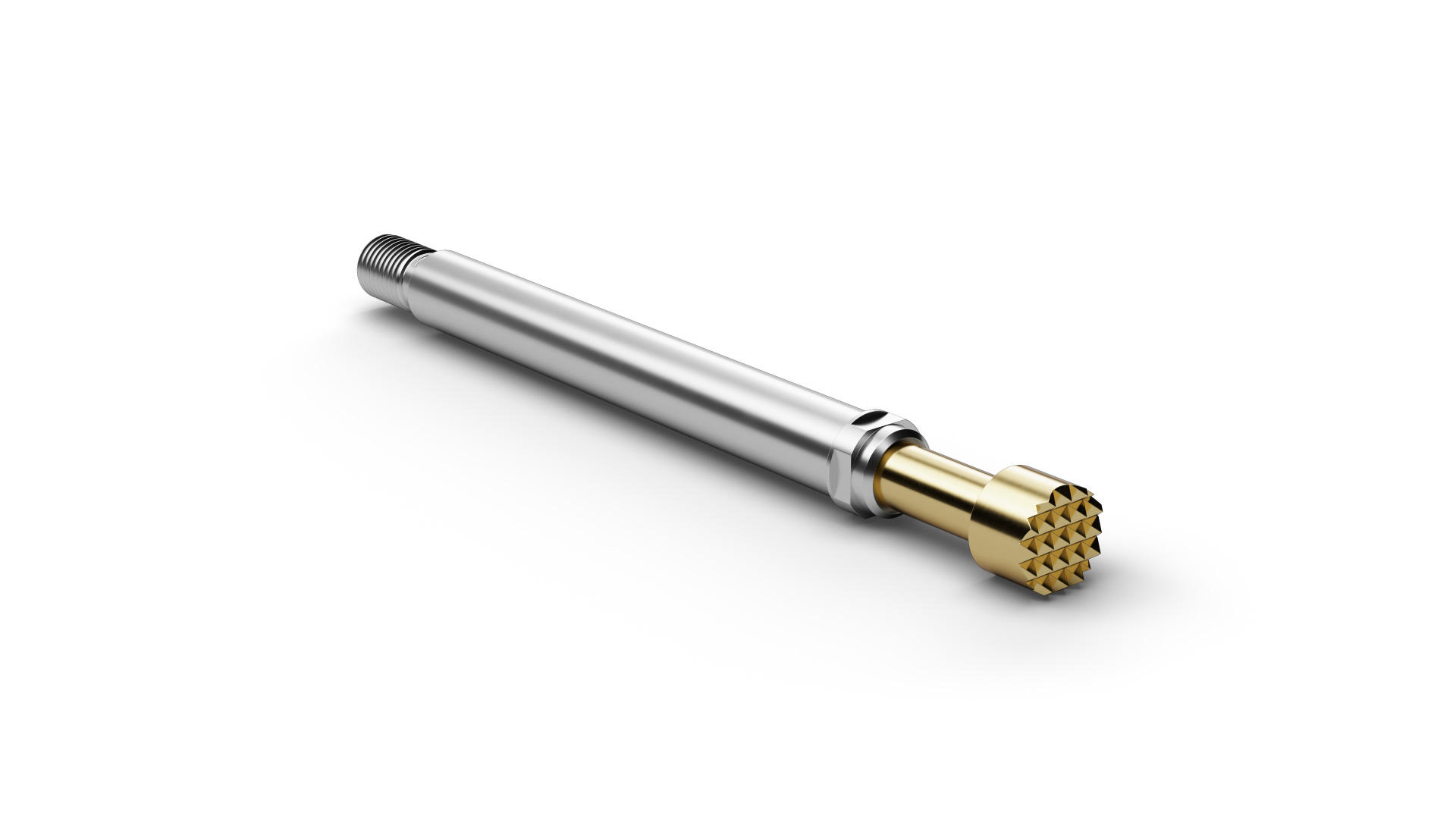

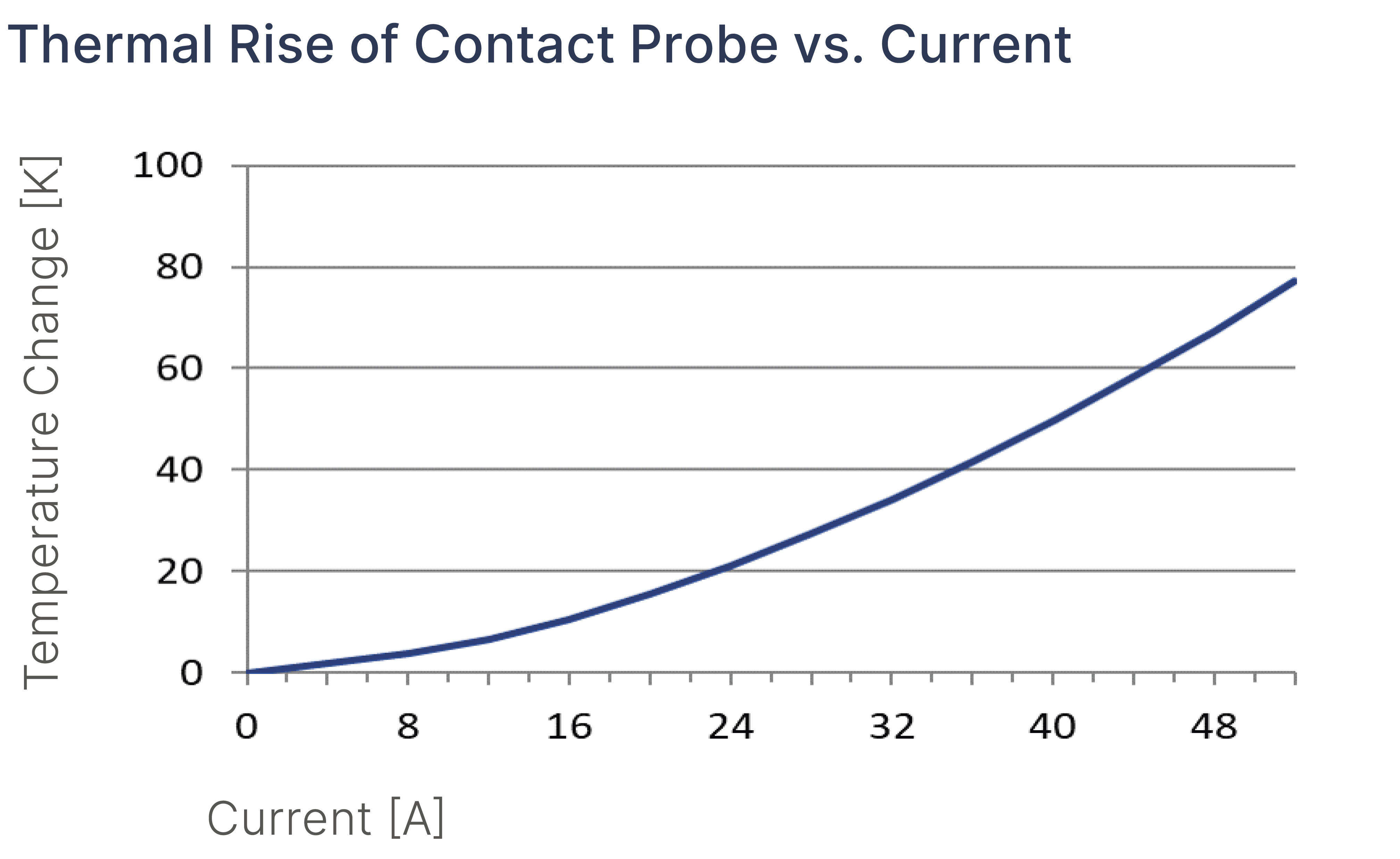

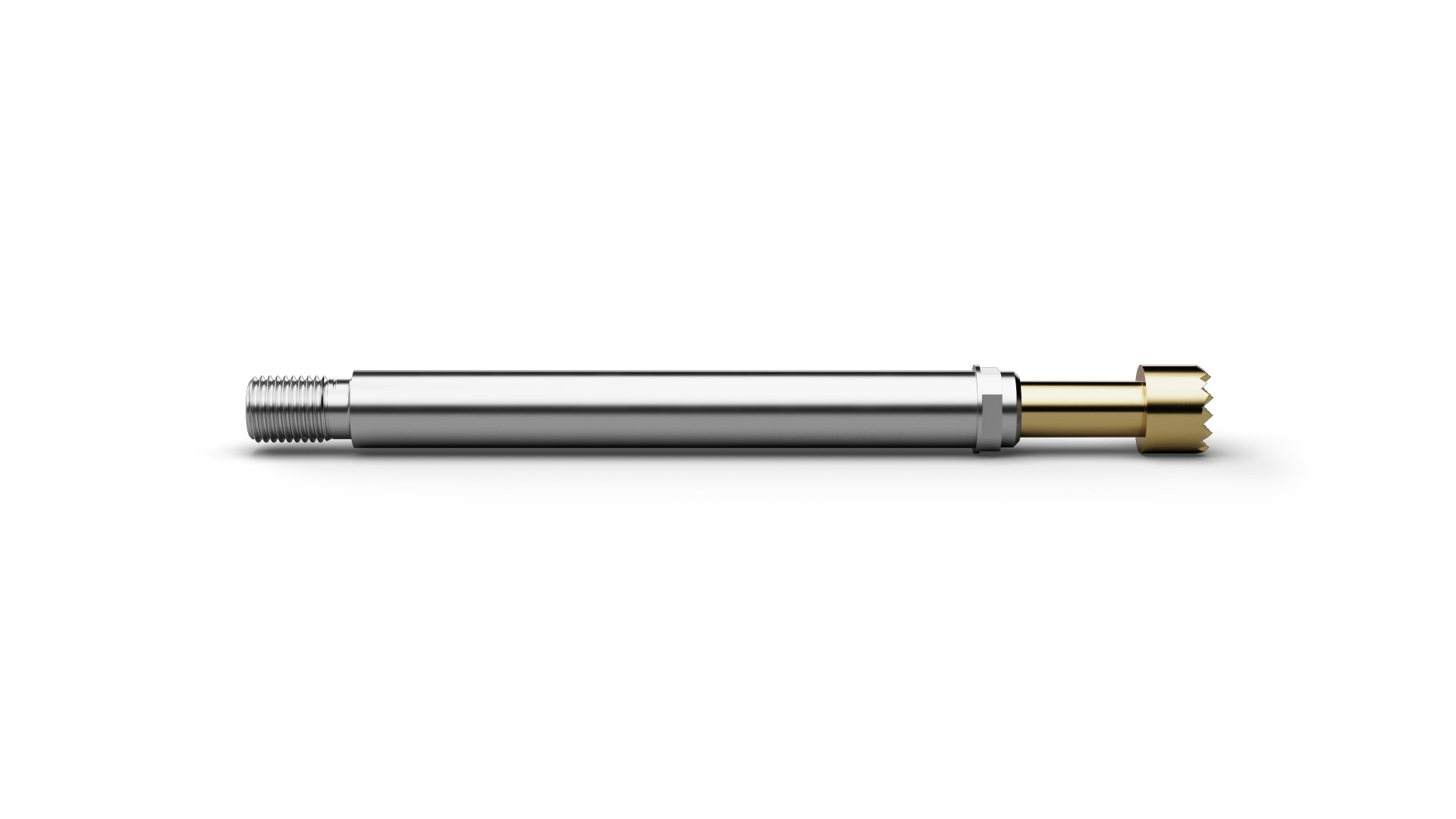

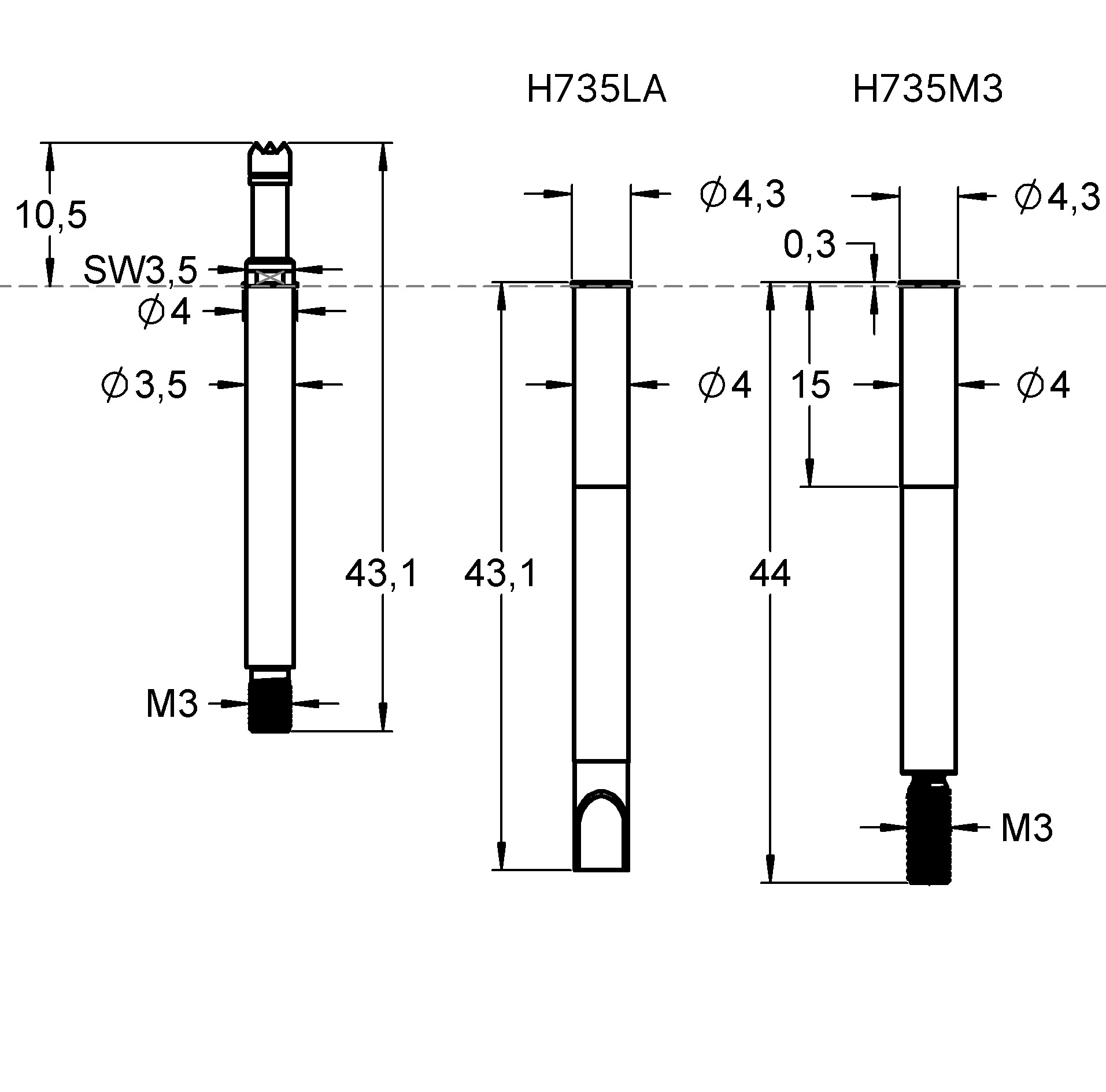

Graphiques
Beschreibung des Produkts
The High Current Probe HCF73506B400G300A (item number 1090970) is designed for safe transmission of high electrical currents in test and contacting applications. HCF73506B400G300A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF73506B400G300A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF73506B400G300A includes battery and power-electronics testing. The electrical rating of HCF73506B400G300A combines 50 A continuous current with 5 mΩ typical contact resistance. For HCF73506B400G300A, spring force is 300 cN at a nominal travel of 4.4 mm.
