Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | P / P060-L010 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|

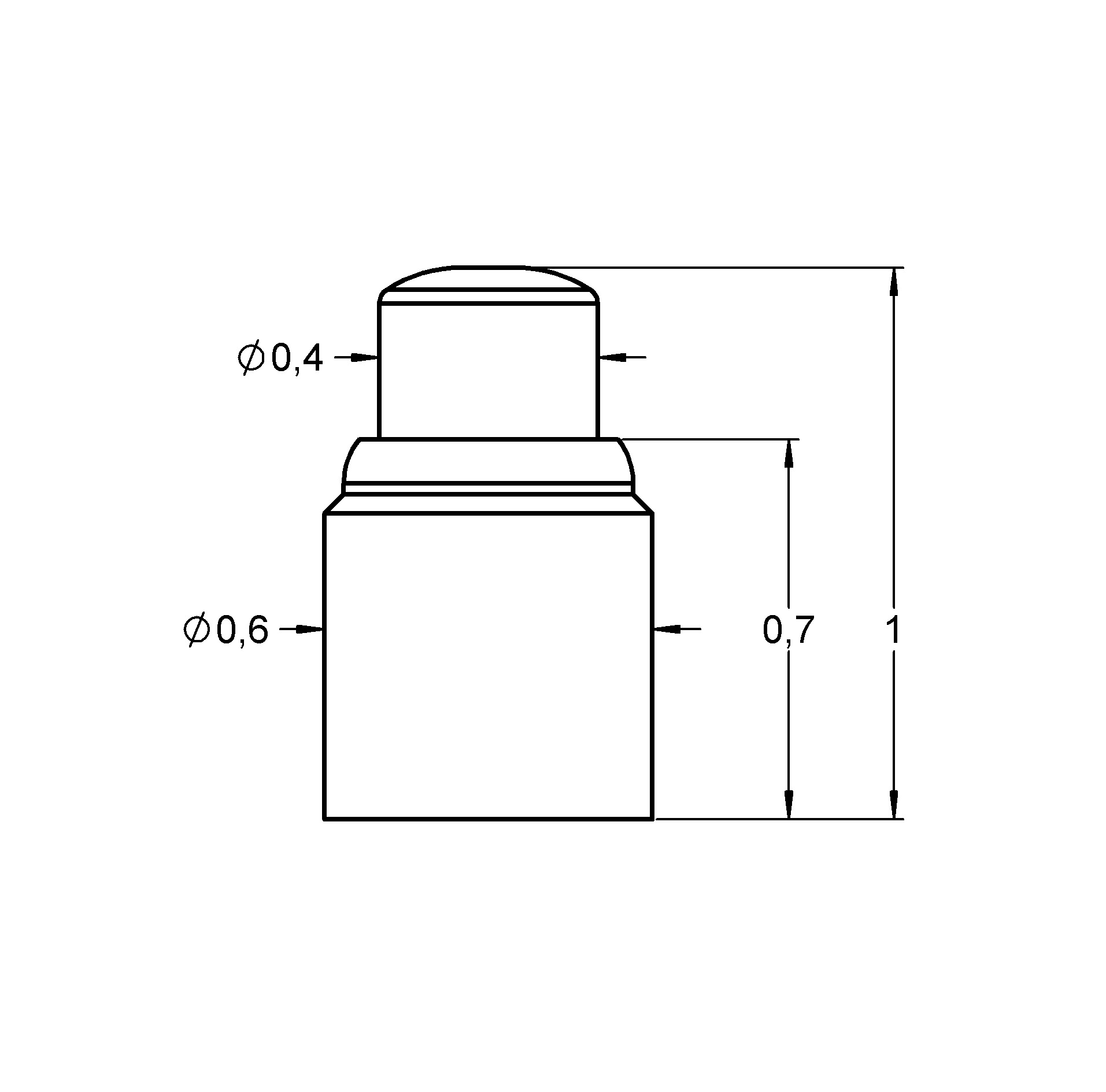

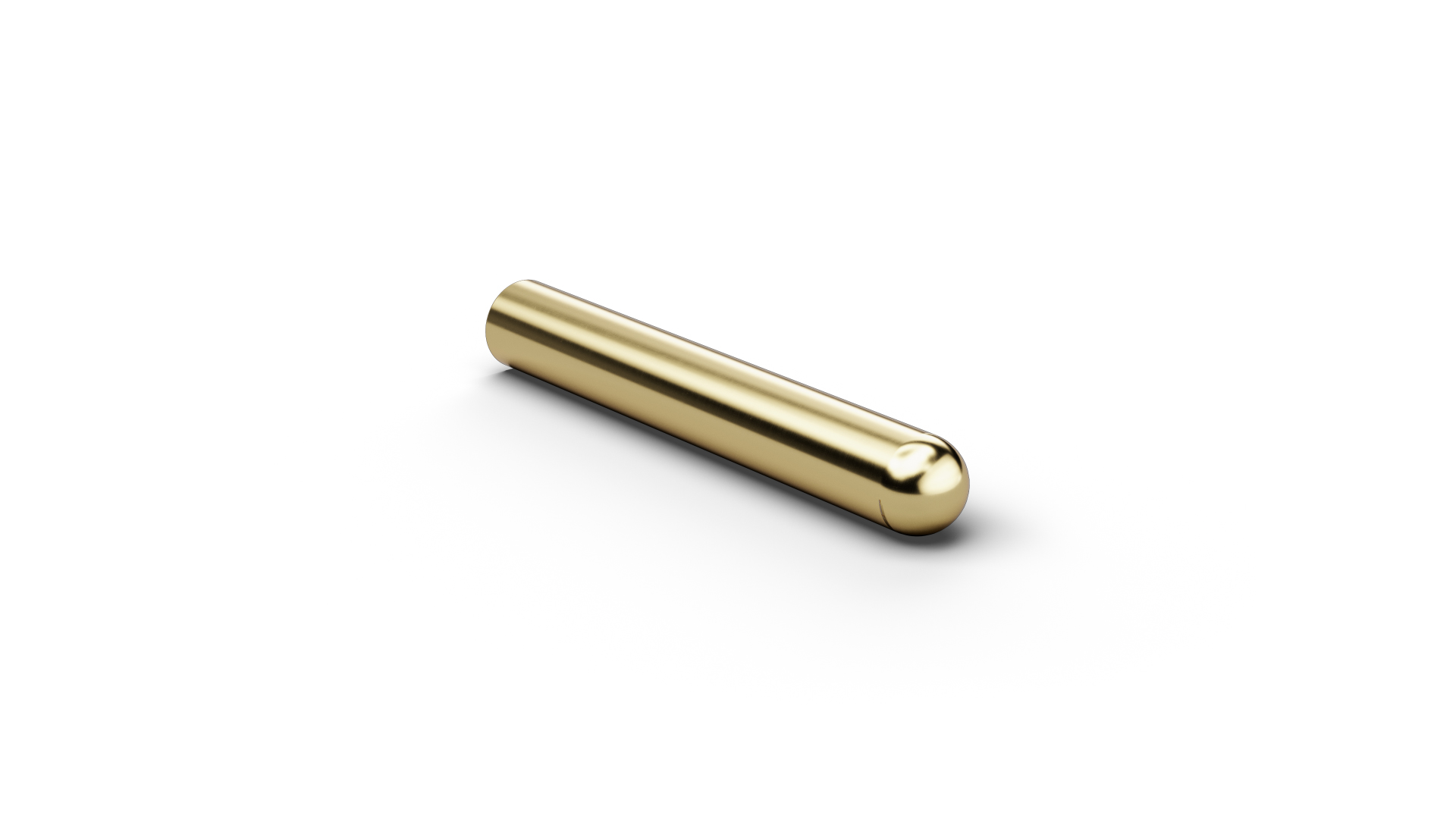

| Longueur totale (mm) | 1 |
| Hauteur hors tout (mm) | 0.32 |
| Diamètre du style de pointe (mm) | 0.4 |
| Diamètre du fût (mm) | 0.6 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 11 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Gold |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 15 |
| Force du ressort (cN) | 35 |
| Course nominale (mm) | 0.2 |
| Course maximale (mm) | 0.22 |
| Précision de pointage +/- (mm) | 0.05 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 1 |
| Résistance de contact typique (mΩ) | 100 |
Graphiques
Beschreibung des Produkts

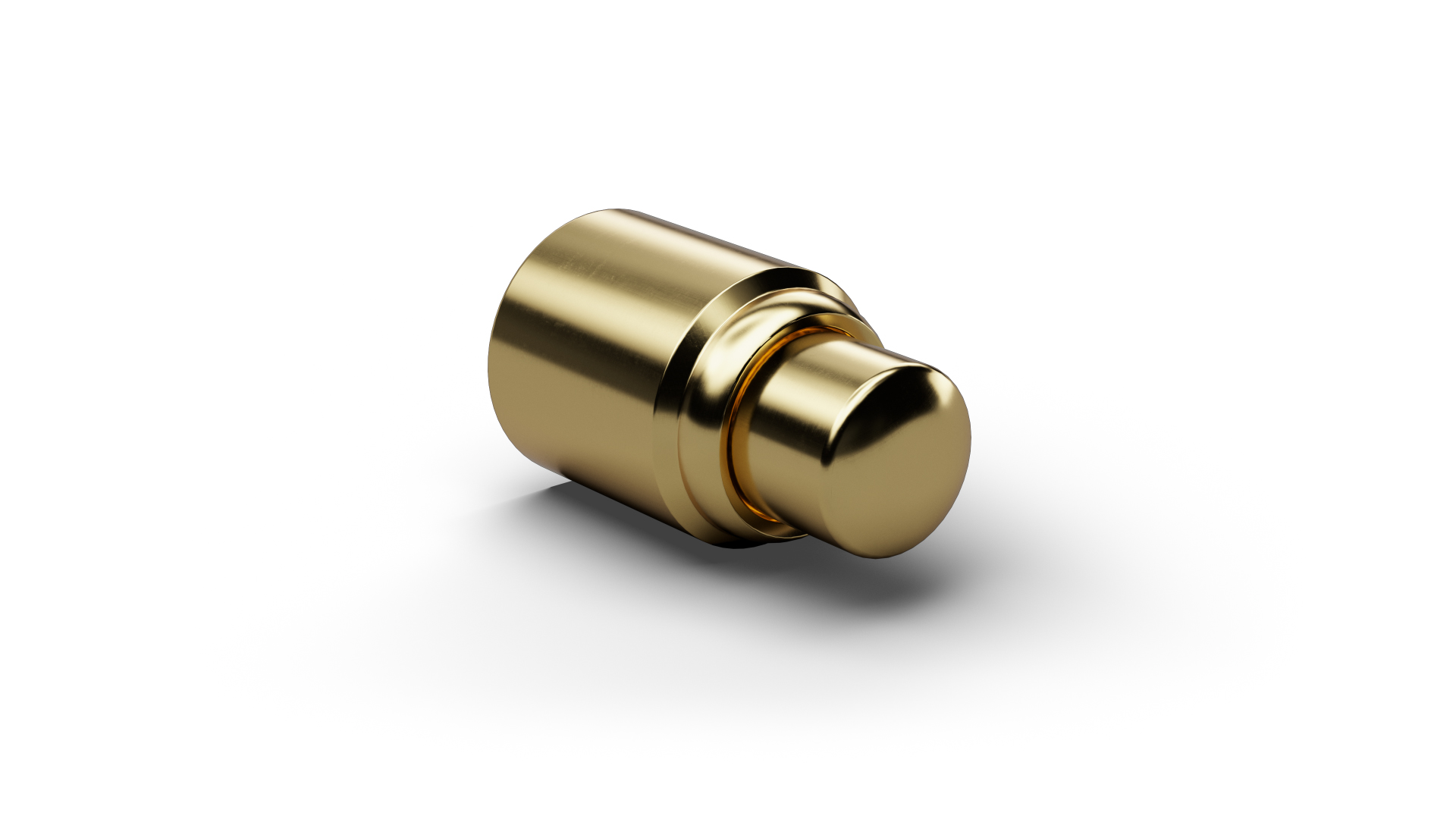

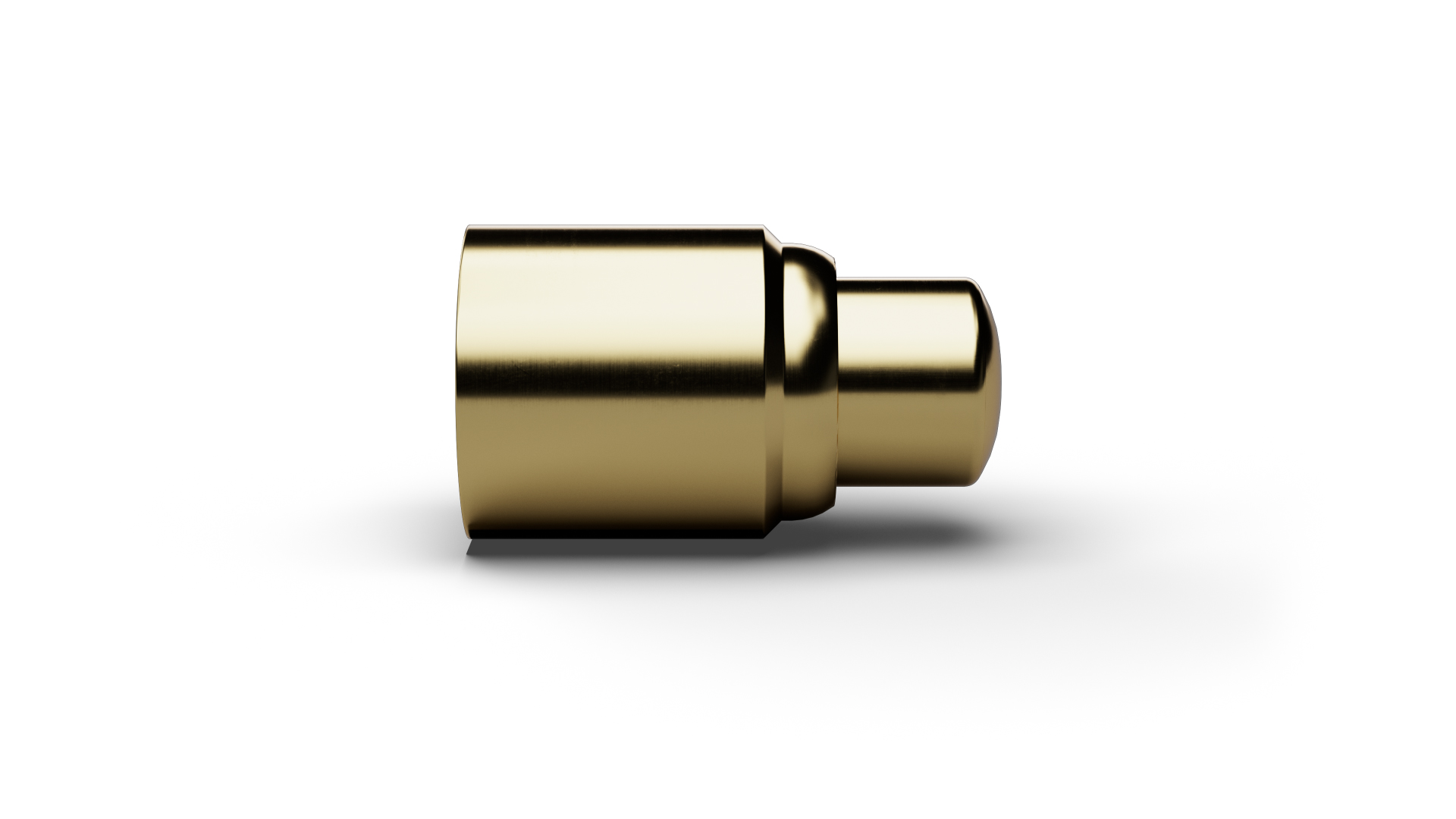

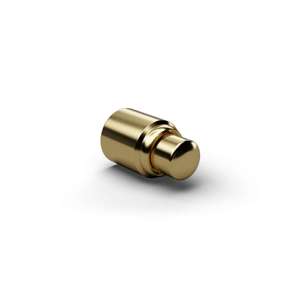

The Pogo Connector P06011B040G035L010 (item number 1111356) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P06011B040G035L010 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P06011B040G035L010 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 1.27 mm / 50 mil, spring force is 35 cN at a nominal travel of 0.2 mm. The probe is rated for 1 A continuous current with a typical contact resistance of 100 mΩ. Tip style 11 (Spherical) has a diameter of 0.4 mm.
